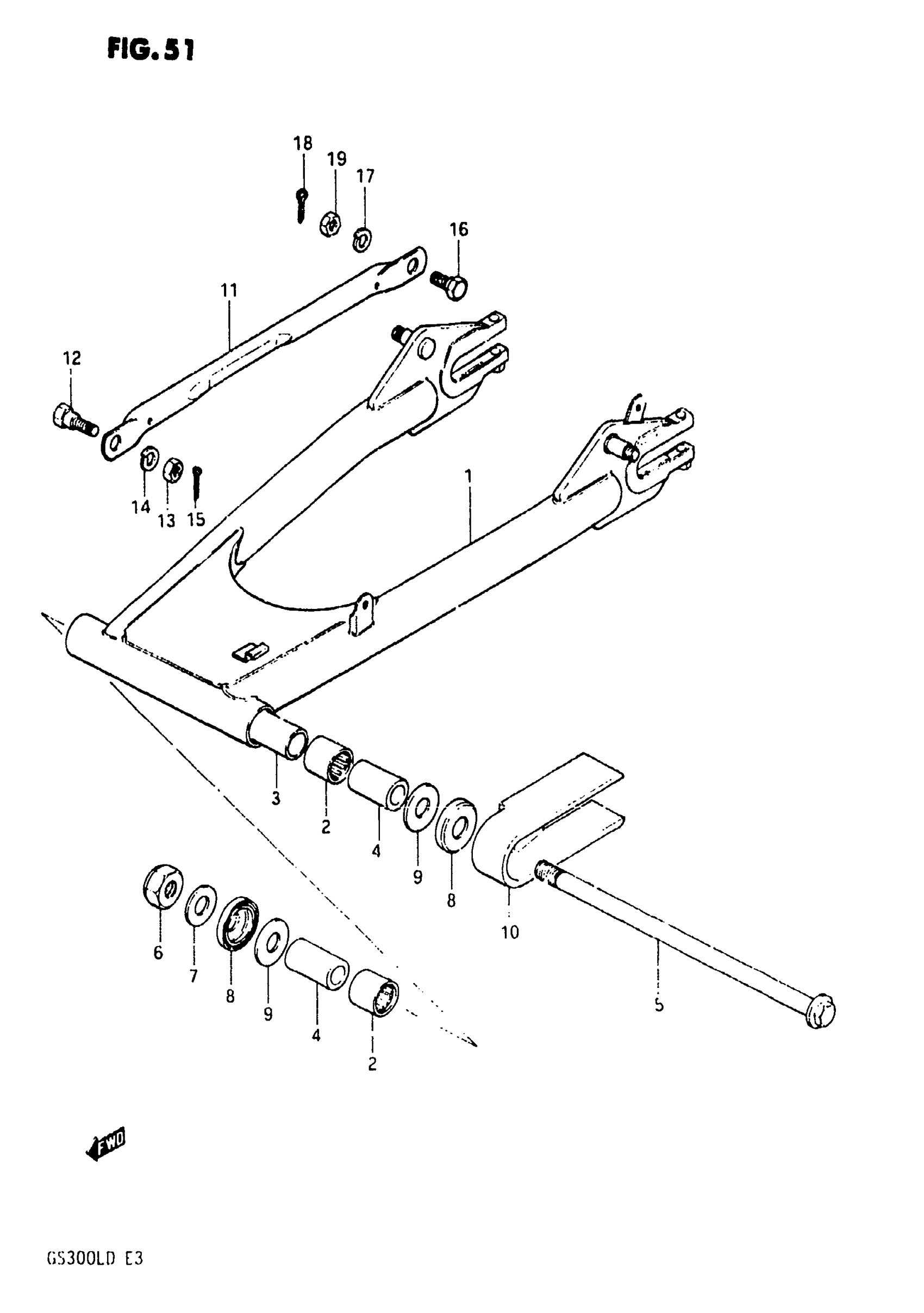

Suzuki GS300L (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR(BLACK) | MODEL Z This part replaces 61000-44400-019.

61000-44401-019

Unavailable

1

SWINGING ARM ASSY, REAR(BLACK) | MODEL D; Includes Item(s) 2

61000-44401-019

Unavailable

2

BEARING

09263-22017

$22.58

3

SPACER

61281-44001

Unavailable

4

SPACER

61251-45001

$17.37

5

SHAFT, DIVOT

61211-44400

Unavailable

6

NUT This part replaces 08319-21148.

08319-2114A

$3.96

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

COVER,DUST SEAL

61262-45002

$7.97

9

WASHER

09160-14020

$2.19

10

BUFFER

61273-11900

Unavailable

11

TORQUE LINK, REAR(BLACK)

64311-44200-019

Unavailable

12

BOLT, FRONT

09111-10010

Unavailable

13

NUT This part replaces 08310-22108.

08310-00107

$2.19

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

BOLT,REAR

09101-10003

Unavailable

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

19

NUT This part replaces 08310-11108.

08310-00107

$2.19
