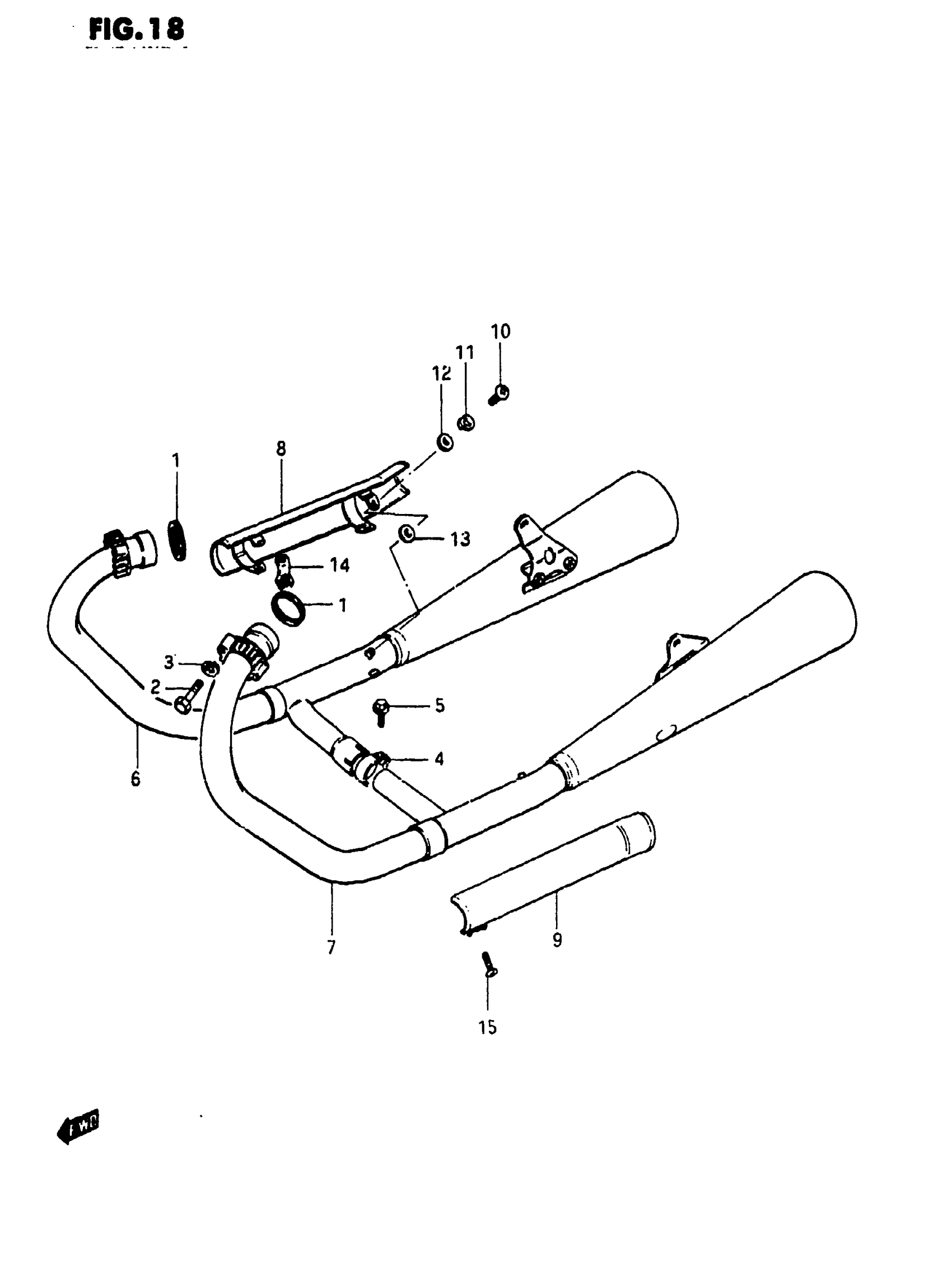

Suzuki GS300L (1983) MUFFLER (MODEL Z) Diagram

#

Description
Price

1

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

2

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

CLAMP

09402-35601

Unavailable

5

BOLT This part replaces 01517-06258.

01550-06257

$2.30

6

NO DESCRIPTION AVAILABLE This part replaces 14301-11900.

14301-11900-H01

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 14302-11900.

14302-11901-H01

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 14780-11500.

14780-11540

Unavailable

9

COVER, MUFFLER This part replaces 14790-11500.

14790-11540

Unavailable

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

14

CLAMP, MUFFLER COVER

14785-11500

Unavailable

15

SCREW This part replaces 02112-06208.

02112-06207

$1.78
