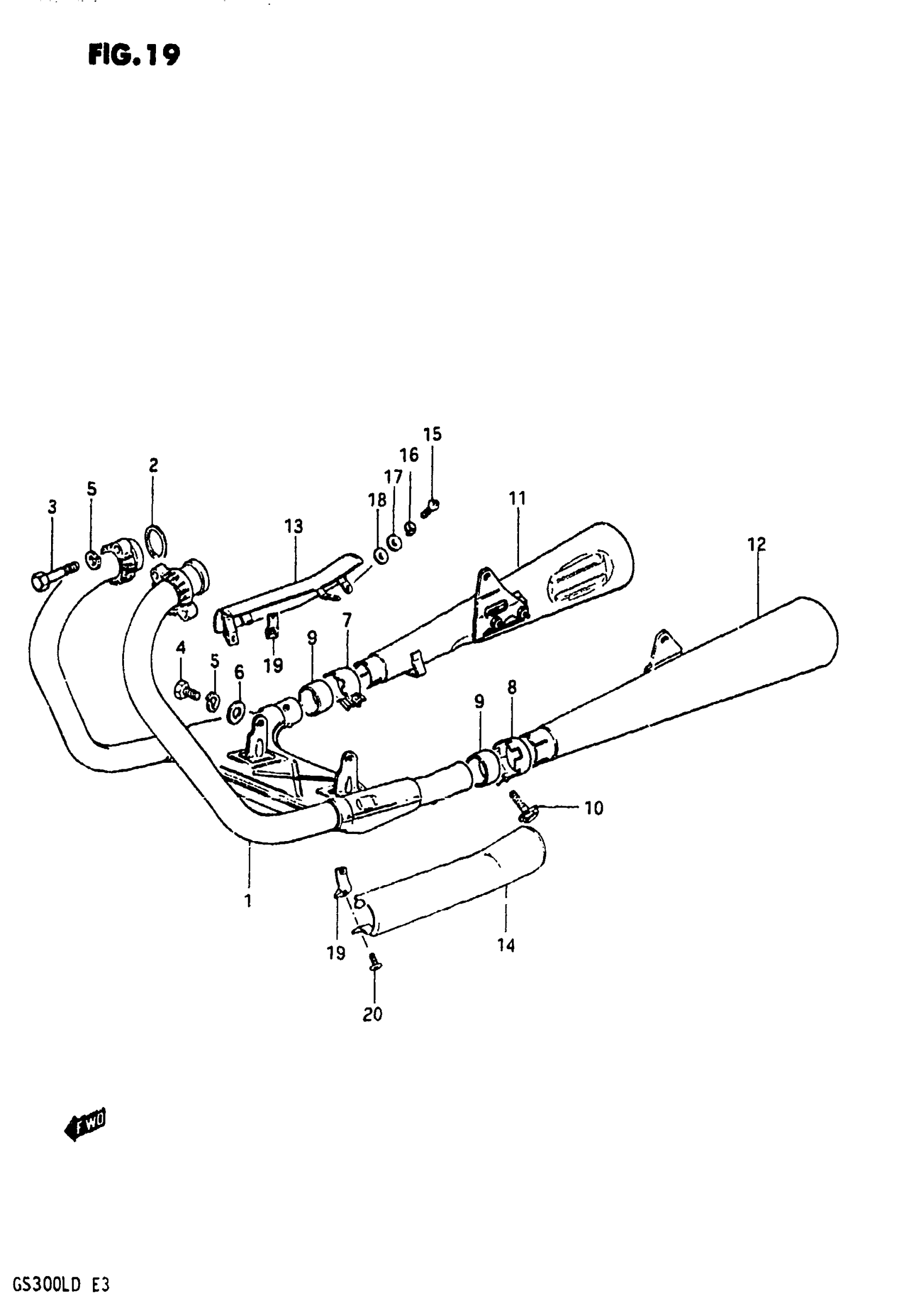

Suzuki GS300L (1983) MUFFLER (MODEL D) Diagram

#

Description
Price

1

PIPE, EXHAUST This part replaces 14100-11520.

14100-11521-H01

Unavailable

2

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

3

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

4

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

CLAMP, CONNECTOR RH

14459-47000

Unavailable

8

CLAMP,CONNECTOR LH

14469-47000

Unavailable

9

CONNECTOR,MUFLR This part replaces 14771-47020.

14771-47020-H17

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

MUFFLER ASSY, RH This part replaces 14301-11520.

14301-11550-H01

Unavailable

12

MUFFLER ASSY, LH This part replaces 14302-11520.

14302-11550-H01

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 14780-11500.

14780-11540

Unavailable

14

COVER, MUFFLER This part replaces 14790-11500.

14790-11540

Unavailable

15

SCREW This part replaces 02112-06128.

02112-06127

$1.84

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

19

CLAMP, MUFFLER COVER

14785-11500

Unavailable

20

SCREW This part replaces 02112-06208.

02112-06207

$1.78
