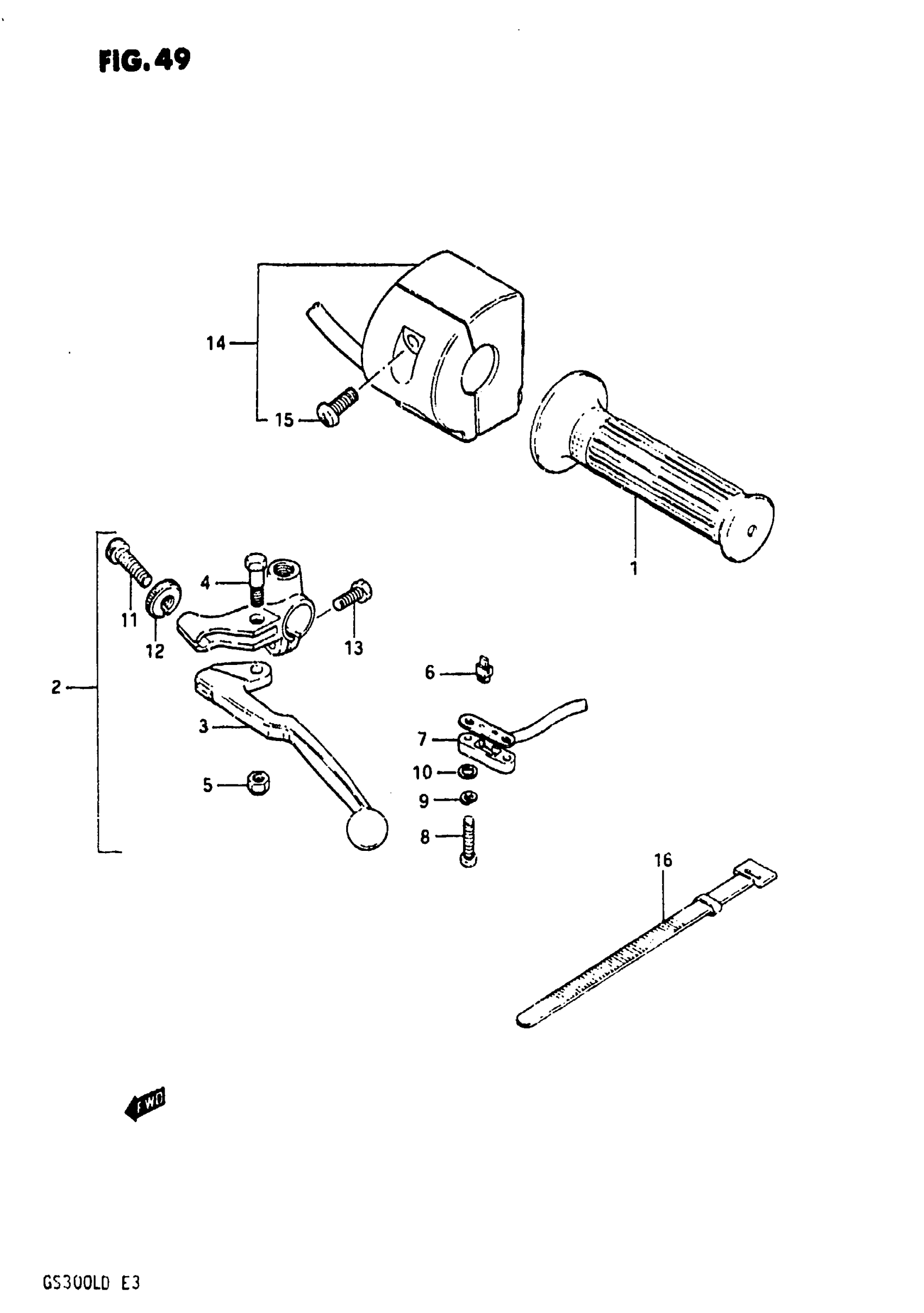

Suzuki GS300L (1983) LEFT HANDLE SWITCH (MODEL Z) Diagram

#

Description
Price

1

GRIP This part replaces 57211-45030.

57211-24201

Unavailable

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 13 This part replaces 57500-49112.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

HOLDER

57465-18601

$4.34

7

COVER

57481-33010

$5.84

8

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

9

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

10

WASHER This part replaces 08322-21038.

08322-01037

$1.93

11

ADJUSTER, CABLE

57441-11010

$5.62

12

NUT

57442-11010

$2.79

13

BOLT

57451-49100

Unavailable

14

SWITCH ASSY, HANDLE LH | Includes Item(s) 15 This part replaces 37400-44111.

37400-44122

Unavailable

15

SCREW This part replaces 02112-05168.

02112-05167

$1.97

16

CLAMP

09407-12402

$3.04

17

BUTTON, HORN | NOT SHOWN

37311-49000

Unavailable

18

SPRING | NOT SHOWN This part replaces 37312-49000.

57382-47500

Unavailable

19

CONTACT | NOT SHOWN

37313-49000

Unavailable
