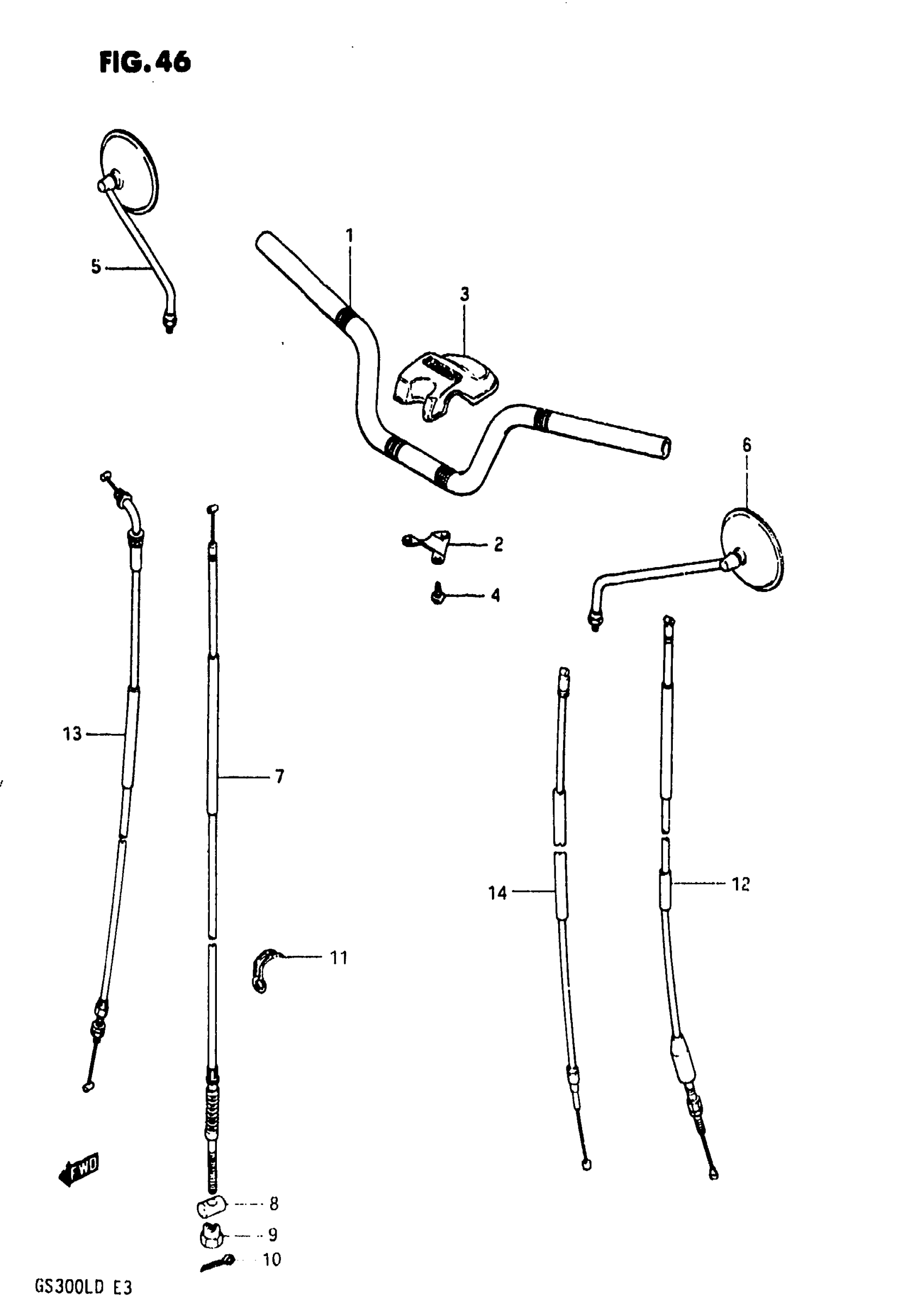

Suzuki GS300L (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-11420

Unavailable

2

BRACKET, HEAD COVER

56175-39001

Unavailable

3

COVER

56171-45900

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 09132-04020.

09132-04026

Unavailable

5

MIRROR ASSY,RR This part replaces 56500-45101.

56500-38AB2

$357.02

6

MIRROR ASSY,RR This part replaces 56600-45101.

56500-38AB2

$357.02

7

CABLE ASSY, FRONT BRAKE | Includes Item(s) 8 - 9

58100-11900

Unavailable

8

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

9

.NUT This part replaces 09150-06009.

09150-06010

$3.10

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

CLAMP, BRAKE CABLE

34991-11900

Unavailable

12

CABLE,CLUTCH This part replaces 58200-11400.

58200-11401

Unavailable

13

CABLE, THROTTLE This part replaces 58300-11900.

58300-44232

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 58410-44720.

58410-44X05

Unavailable
