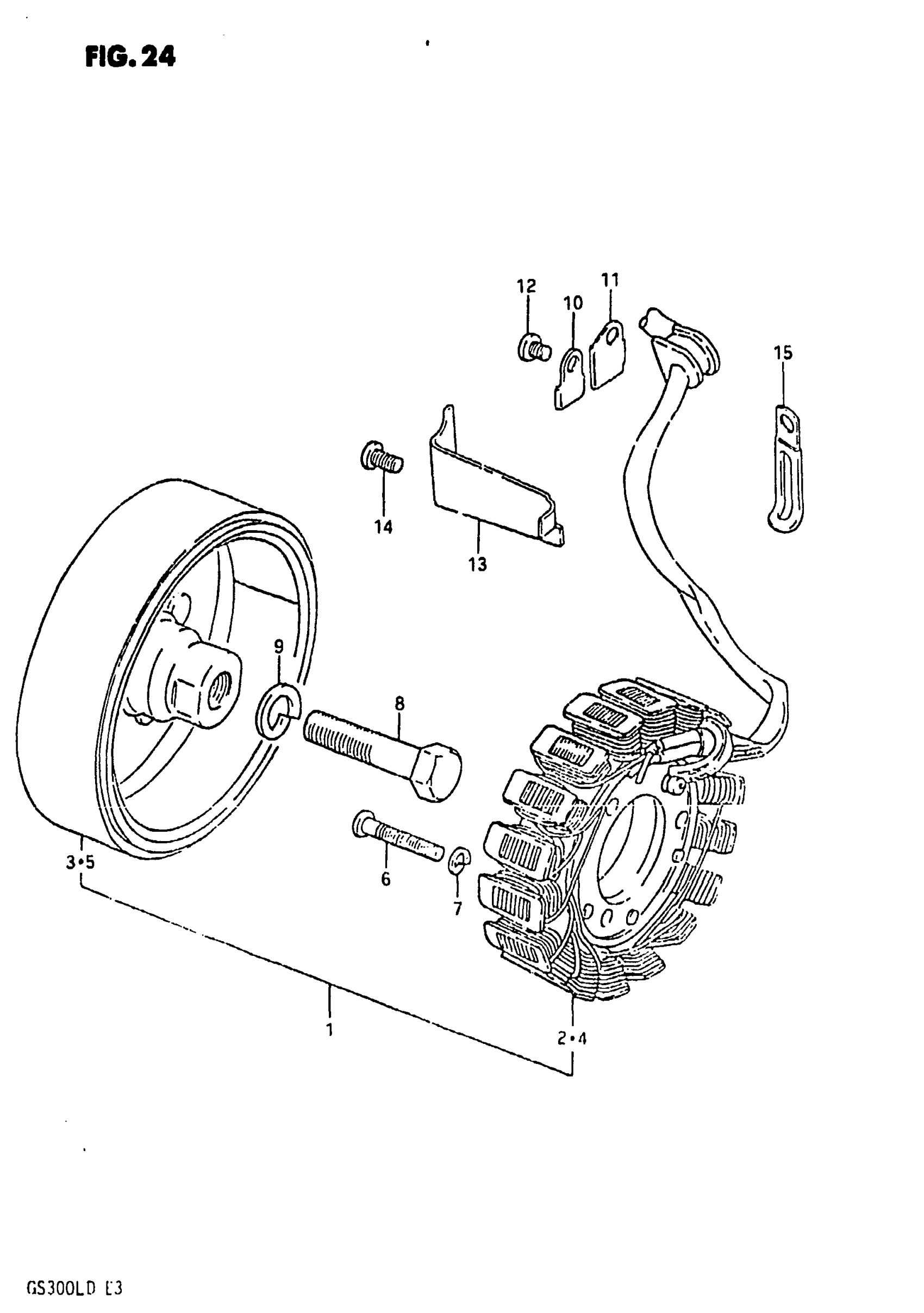

Suzuki GS300L (1983) GENERATOR Diagram

#

Description
Price

1

STATOR | MODEL Z; Includes Item(s) 2 - 3 This part replaces 31400-45020.

31401-45030

Unavailable

2

STATOR | MODEL Z This part replaces 31401-45020.

31401-45030

Unavailable

3

ROTOR | MODEL Z This part replaces 31402-45020.

31402-45030

Unavailable

4

STATOR | MODEL D

31401-45030

Unavailable

5

ROTOR | MODEL D

31402-45030

Unavailable

6

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

BOLT This part replaces 01107-12458.

01500-12457

$6.12

9

LOCK WASHER This part replaces 08321-31128.

08321-01127

$2.06

10

CLAMP

31497-45000

$1.92

11

NO DESCRIPTION AVAILABLE This part replaces 31497-11400.

31497-11401

Unavailable

12

SCREW This part replaces 02112-05068.

09125-05122

$2.06

13

CLAMP

31498-45000

$2.15

14

SCREW This part replaces 02112-06108.

02112-06107

$1.49

15

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
