1983 Suzuki GS300L Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1983 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

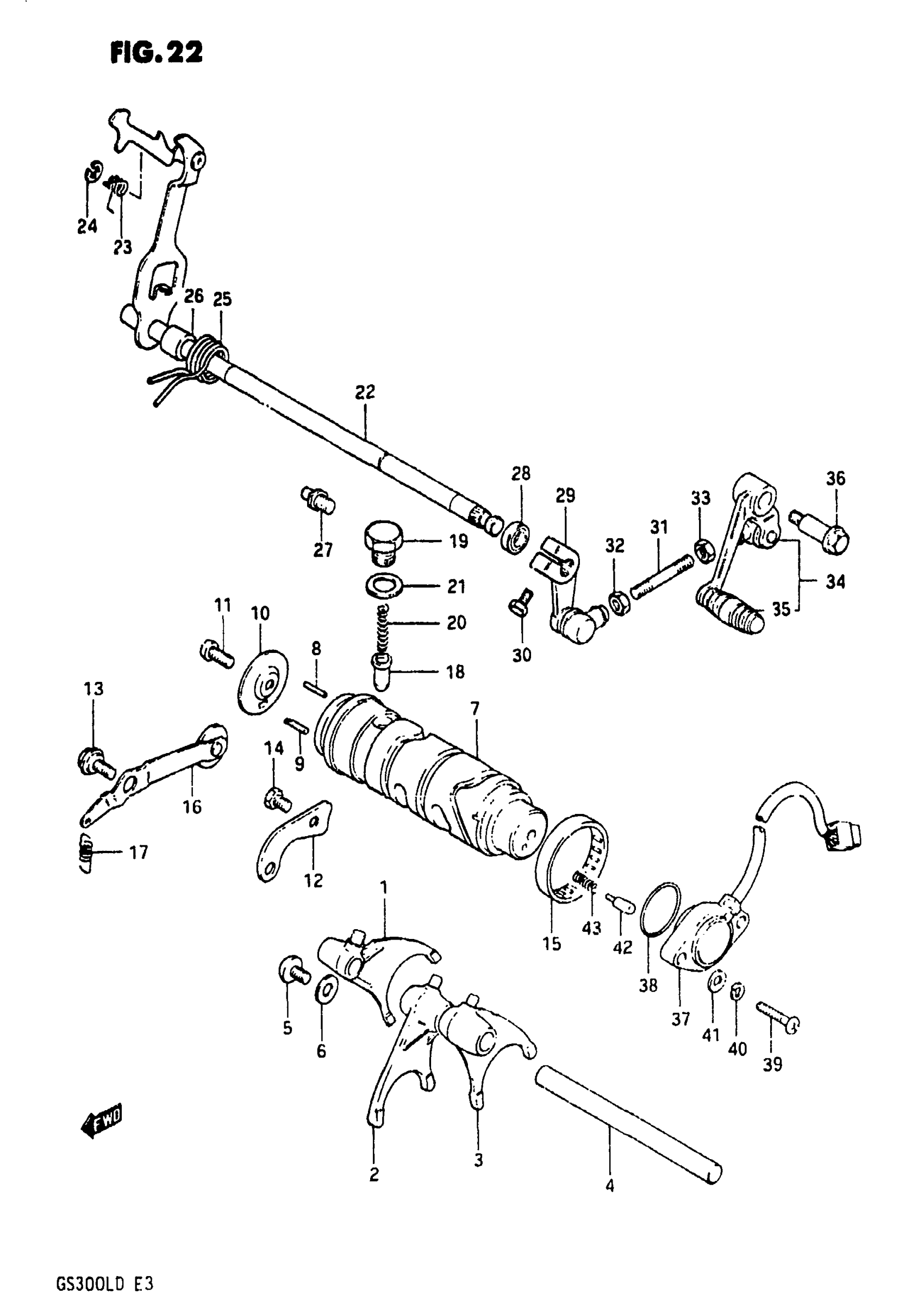

1983 Suzuki GS300L Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO.1

25211-11400

1
Out of stock

2

FORK, GEAR SHIFTING NO.2

25221-44001

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-11400

1
Out of stock

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

1
Out of stock

5

SCREW

02142-06108

1
Out of stock

6

WASHER

08211-06141

1
Out of stock

7

CAM, GEAR SHIFTING This part replaces 25311-47010.

25311-47011

1
Out of stock

8

PIN

09261-04001

5
Out of stock

9

PIN

09209-04013

1
Out of stock

10

HOLDER, DRIVE PIN

25322-44000

1
Out of stock

11

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock

12

GUIDE, CAM This part replaces 25341-44000.

25341-33300

1
Out of stock

13

BOLT This part replaces 09111-06019.

09111-06054

1
Out of stock

14

BOLT This part replaces 01107-06128.

01500-06127

1
Out of stock

15

BEARING

09263-40001

1
Out of stock

16

STOPPER, CAM NO.1

25350-11400

1
Out of stock

17

SPRING

09443-09007

1
Out of stock

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

1
Out of stock

19

HOLDER, SPRING

25354-30000

1
Out of stock

20

SPRING

09440-06018

1
Out of stock

21

GASKET

09168-14004

1
Out of stock

22

SHAFT, GEAR SHIFTING

25510-11500

1
Out of stock

23

SPRING

09448-13008

1
Out of stock

24

E RING This part replaces 08332-11078.

08332-1107A

1
Out of stock

25

SPRING This part replaces 09444-26012.

09444-26013

1
Out of stock

26

SPACER

09180-12068

1
Out of stock

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

29

ARM,GEAR SHIFT This part replaces 25520-47000.

25520-47021

1
Out of stock

30

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

31

ROD, GEAR SHIFT LINK This part replaces 25525-33200.

25525-12C10

1
Out of stock

32

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

33

NUT, LH

09140-06011

1
Out of stock

34

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 35

25600-11500

1
Out of stock

35

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

36

SHAFT, LEVER

25617-44101

1
Out of stock

37

BODY, SWITCH This part replaces 37720-33200.

37720-45100

1
Out of stock

38

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

39

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

40

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

41

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

42

CONTACT

09209-05011

1
Out of stock

43

SPRING

09440-04010

1
Out of stock
