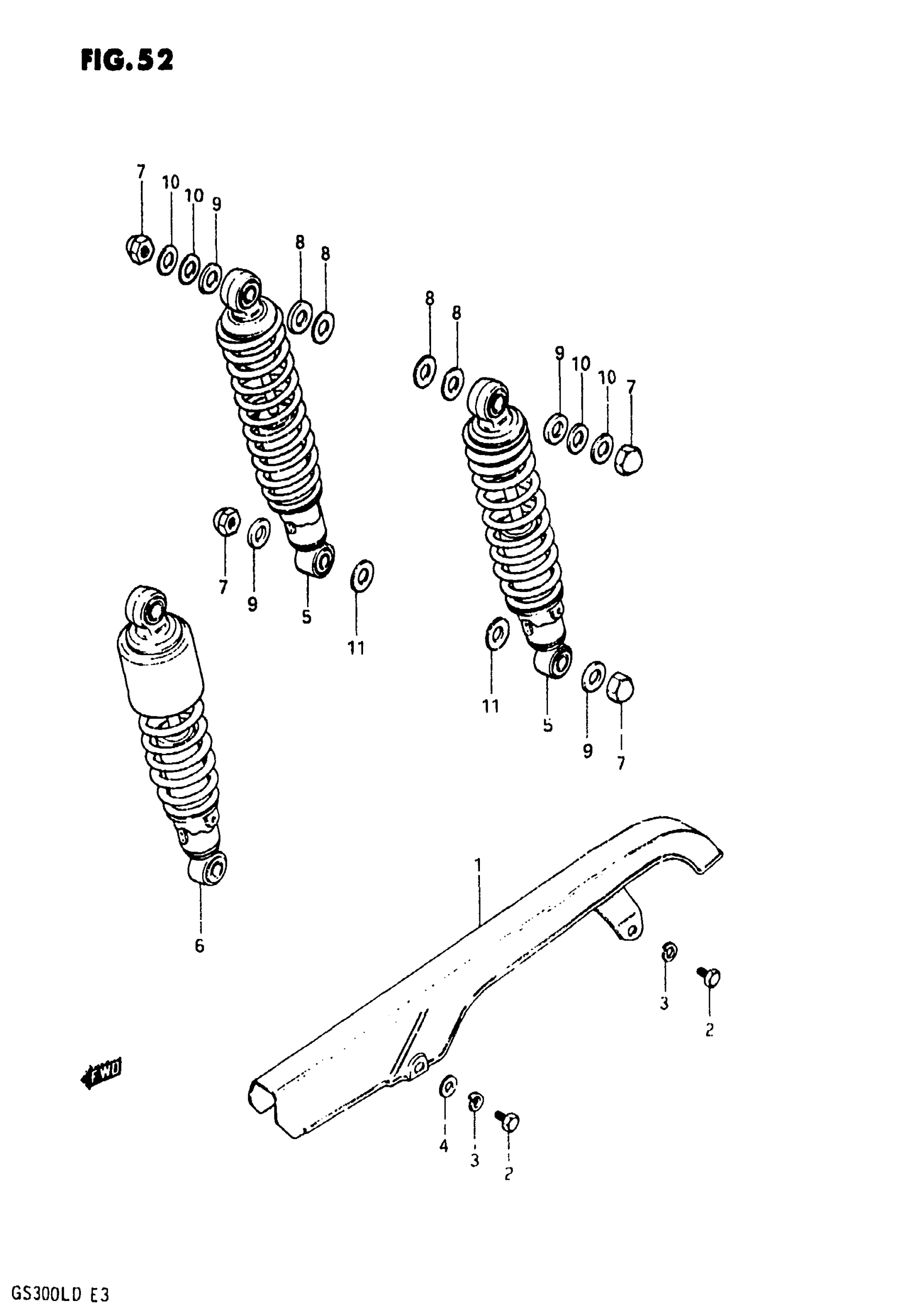

Suzuki GS300L (1983) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description

Price

1

CHAIN CASE

61310-11900

Unavailable

2

BOLT This part replaces 01107-06108.

01500-06107

$2.07

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

4

WASHER This part replaces 08322-21068.

08322-01067

$1.86

5

SHOCK ABSORBER, REAR | MODEL Z

62100-11900

Unavailable

6

SHOCK ABSORBER,REAR | MODEL D

62100-11910

Unavailable

7

NUT This part replaces 08313-11108.

08313-10107

$2.53

8

WASHER This part replaces 08322-11128.

08322-01127

$1.86

9

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.19

10

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.64

11

WASHER This part replaces 09160-12004.

09160-12088

$2.08
