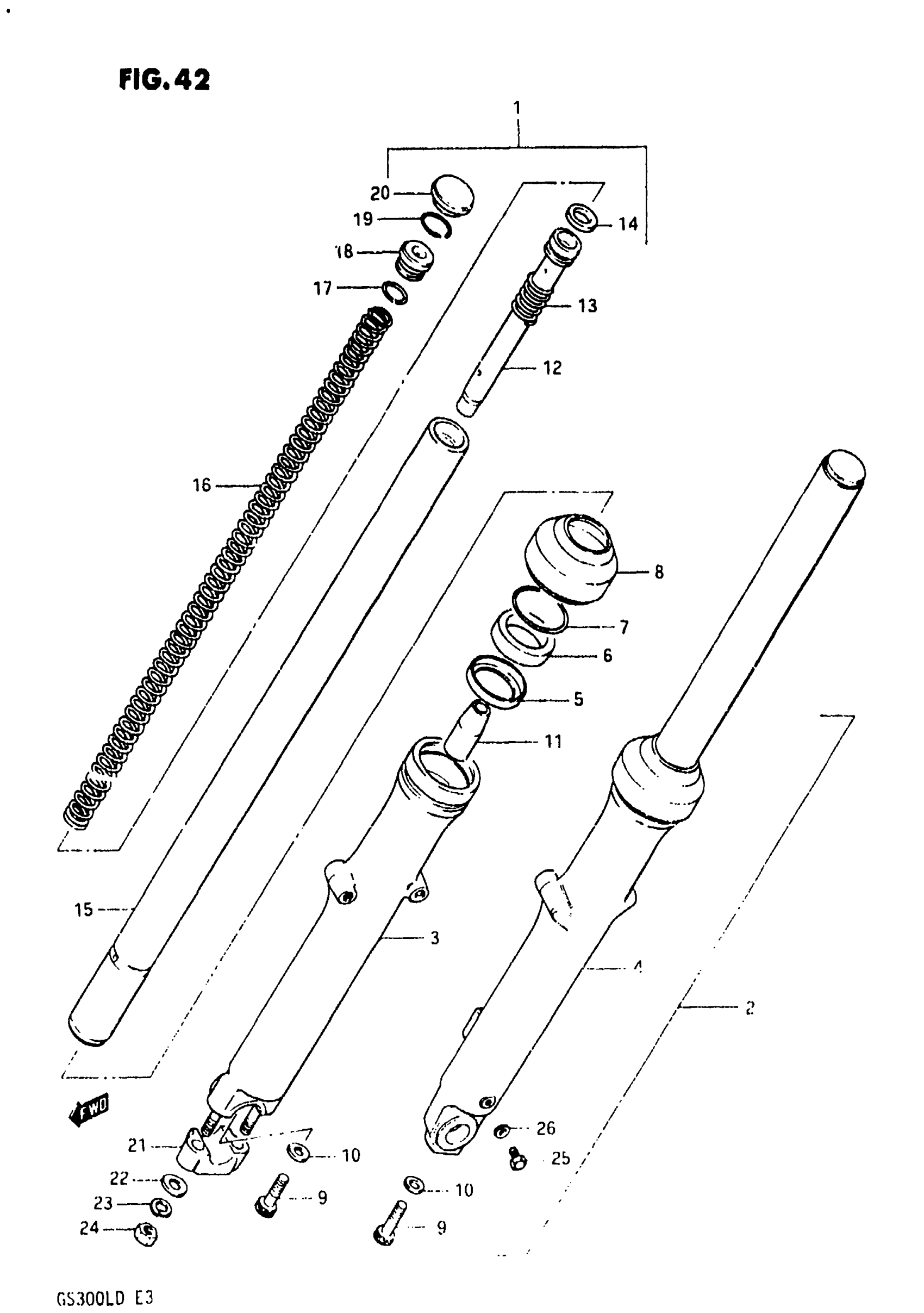

Suzuki GS300L (1983) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-11900

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 26

51104-11900

Unavailable

3

OUTER TUBE, RH

51130-11900

Unavailable

4

OUTER TUBE, LH

51140-11900

Unavailable

5

SPACER

51168-44030

$5.22

6

OIL SEAL This part replaces 51153-37310.

51153-02B00

$20.06

7

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

8

DUST SEAL

51571-37310

$20.15

9

BOLT

51147-48130

$4.34

10

O RING This part replaces 51148-31030.

51148-36011

$3.56

11

.PIECE, OIL LOCK

51195-48000

Unavailable

12

CYLINDER

51146-11400

Unavailable

13

SPRING

51177-36030

Unavailable

14

RING, PISTON

51196-33130

$8.12

15

INNER TUBE

51110-44170

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 51171-11900.

51171-11500

Unavailable

17

O RING

51181-33131

$4.68

18

SEAT, SPRING

51175-48500

Unavailable

19

RING, STOPPER

51169-48500

$3.37

20

CAP This part replaces 51189-44301.

51189-44031

Unavailable

21

HOLDER, AXLE

51132-31030

Unavailable

22

WASHER This part replaces 08322-21088.

08322-01087

$2.13

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

NUT This part replaces 08310-12088.

08310-00087

$2.13

25

BOLT

09100-06011

$1.67

26

GASKET

51183-31030

$3.77
