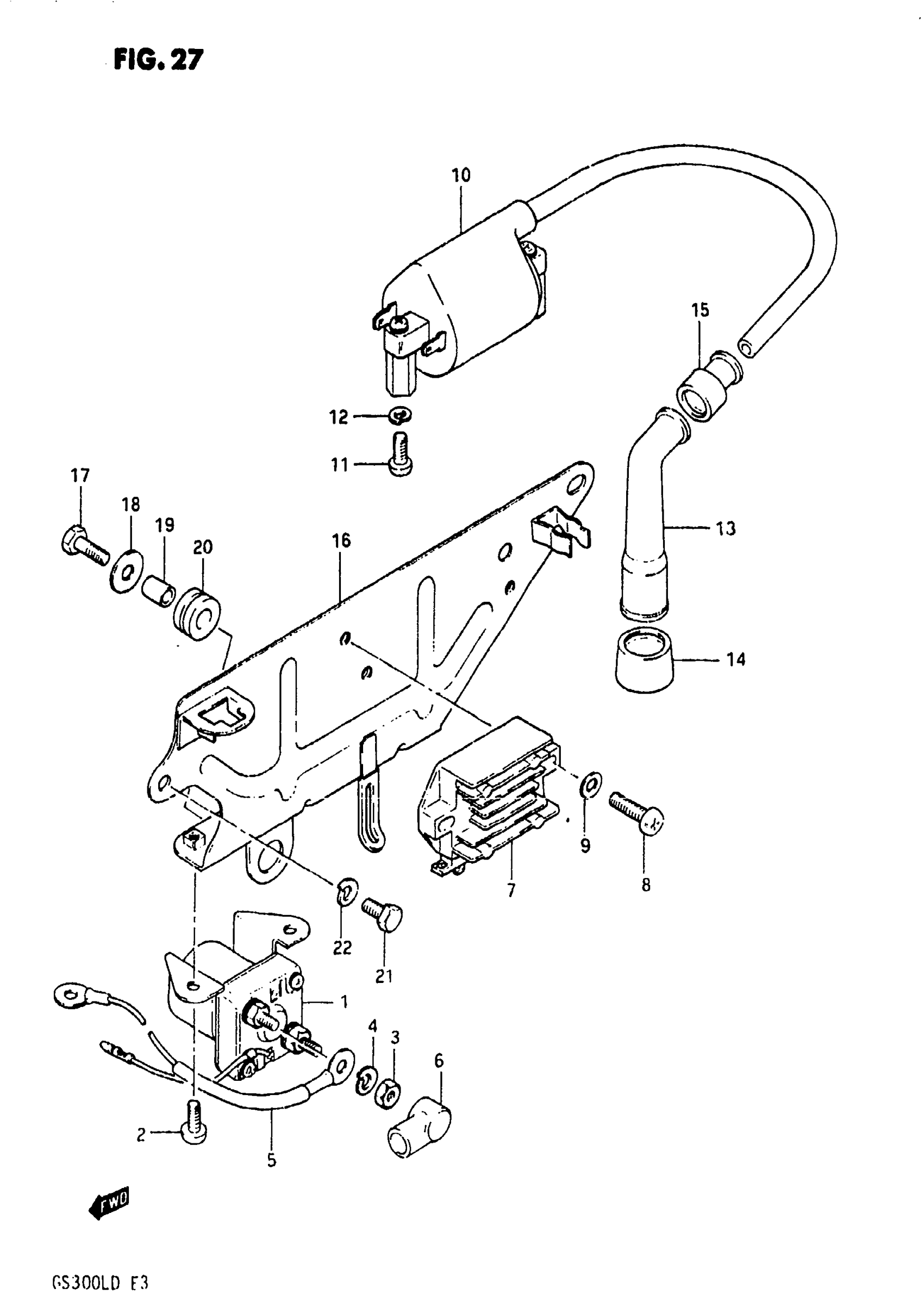

Suzuki GS300L (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR | MODEL Z This part replaces 31800-37020.

31800-37021

$71.42

1

RELAY, STARTING MOTOR | MODEL D This part replaces 31800-33400.

31800-49100

$97.31

2

SCREW This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, (-) | MODEL Z This part replaces 33850-44110.

33850-03201

$9.94

5

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 33850-44510.

33850-01400

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

7

RECTIFIER ASSY This part replaces 32800-44230.

32800-33401

Unavailable

8

SCREW This part replaces 02112-06208.

02112-06207

$1.78

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

COIL, IGNITION This part replaces 33410-11910.

33410-11911

$207.53

11

SCREW This part replaces 02112-05108.

02112-05107

$1.49

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

CAP, SPARK PLUG

33510-45010

$24.99

14

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.68

15

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

16

PLATE, PARTS HOLDER This part replaces 47410-44500.

47410-44503

Unavailable

17

BOLT This part replaces 01107-06208.

01500-06207

$2.28

18

WASHER This part replaces 09160-06007.

09160-06084

$1.78

19

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

20

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

21

BOLT This part replaces 01107-06108.

01500-06107

$2.06

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
