1983 Suzuki GS300L Cylinder Head Diagram

← All diagrams

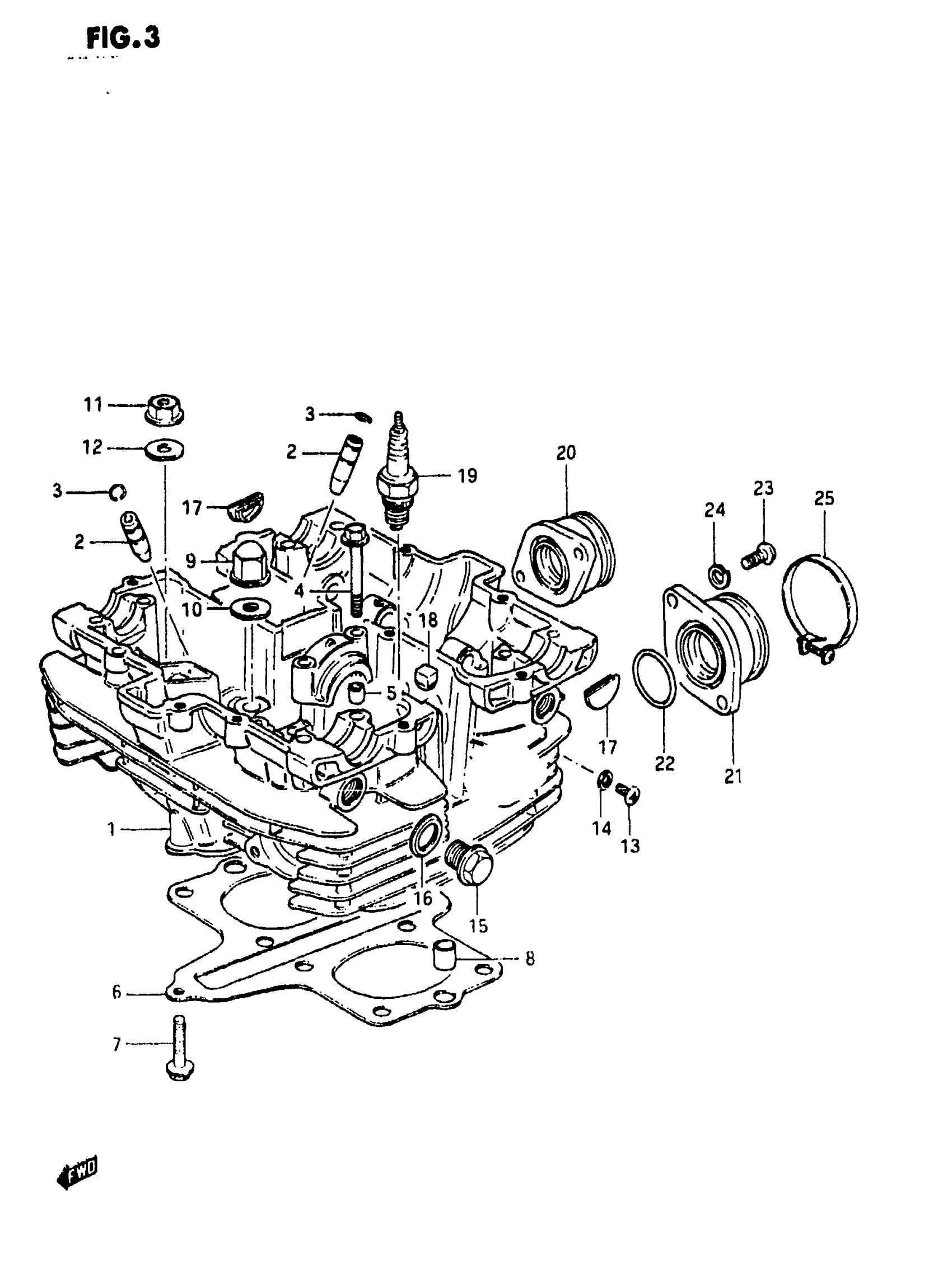

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS300L Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY | MODEL Z

11100-11420

1
Out of stock

1

CYLINDER HEAD ASSY | MODEL D; Includes Item(s) 2 - 5 This part replaces 11100-11450.

11100-11420

1
Out of stock

2

GUIDE, VALVE

11115-11470

8
Out of stock

3

.RING (10X85)

09381-10004

8
Out of stock

4

BOLT (6X39)

09103-06026

8
Out of stock

5

PIN

09206-08001

8
Out of stock

6

GASKET

11141-11900

1
Out of stock

7

1

$2.84

In stock

7

BOLT | MODEL D This part replaces 01517-06305.

01550-0630A

1
Out of stock

8

PIN

04211-11189

2

$1.94

In stock

9

NUT

09159-08029

4
Out of stock

10

GASKET

09168-08013

4
Out of stock

11

NUT This part replaces 09159-08031.

09159-08034

4
Out of stock

12

WASHER

09160-08039

4
Out of stock

13

2

$1.55

In stock

14

GASKET

09168-05010

2
Out of stock

15

4

$3.63

In stock

16

GASKET

09168-14004

4

$1.96

In stock

17

4

$5.98

In stock

18

PAD, RUBBER

11151-45000

4
Out of stock

19

SPARK PLUG (ND, X27ES-U)

09482-00185

2
Out of stock

20

PIPE, INTAKE RH

13110-11400

1
Out of stock

21

PIPE, INTAKE LH

13120-11400

1
Out of stock

22

2

$8.71

In stock

23

4

$2.22

In stock

24

4

$2.28

In stock

25

2

$4.50

In stock
