1983 Suzuki GS300L Crankcase Diagram

← All diagrams

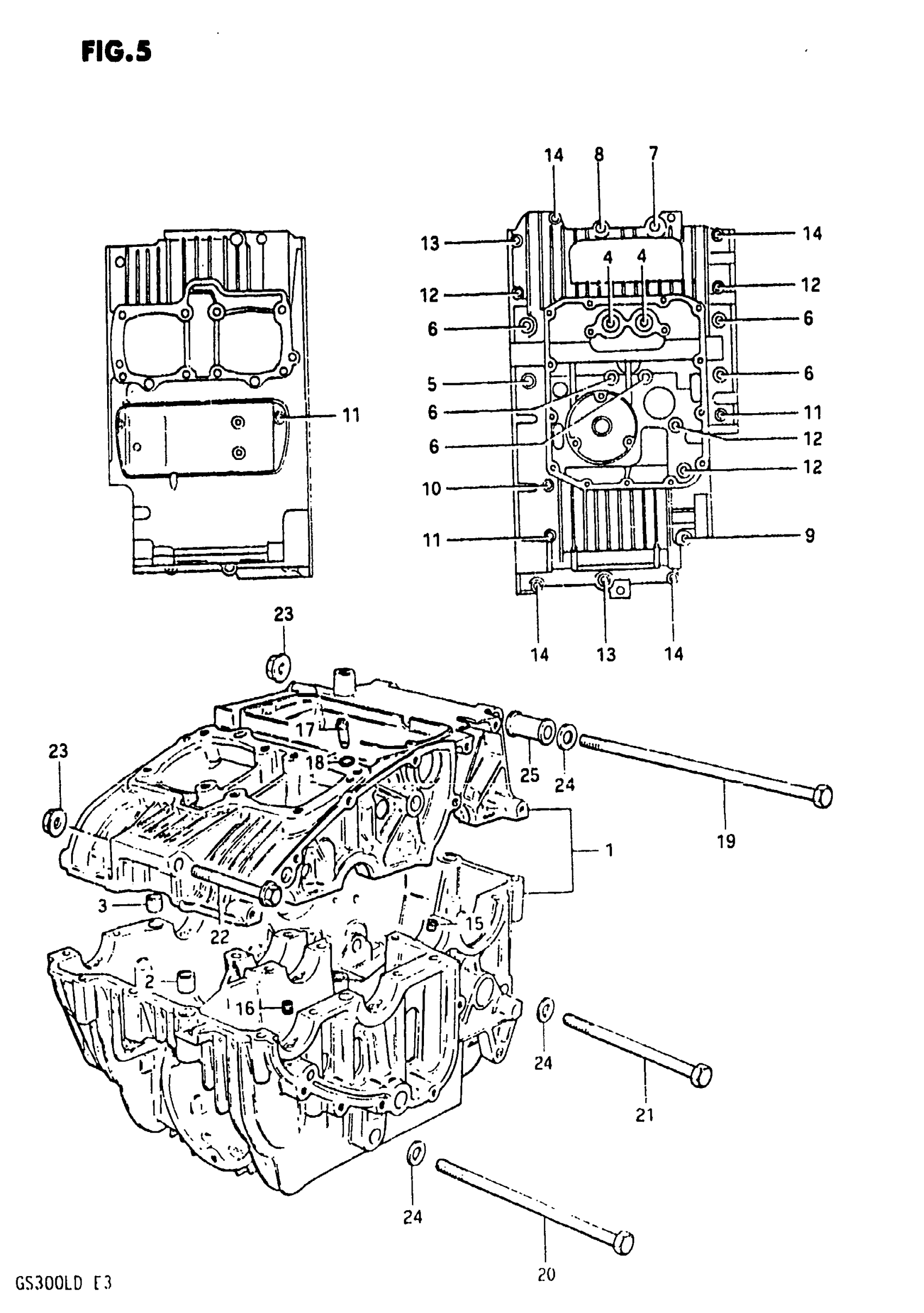

Find the part on the Crankcase diagram for your 1983 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS300L Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY | Includes Item(s) 2 - 18

11300-11870

1
Out of stock

2

PIN

09206-13004

2
Out of stock

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

2
Out of stock

4

BOLT This part replaces 09106-08014.

07130-0870B

2
Out of stock

5

BOLT (8X125) This part replaces 09103-08078.

09103-08106

1
Out of stock

6

BOLT, UPPER This part replaces 09103-08025.

09103-08098

5
Out of stock

7

BOLT This part replaces 01517-08658.

01550-08657

1
Out of stock

8

BOLT, LH This part replaces 01517-08508.

01550-08507

1
Out of stock

9

BOLT This part replaces 01517-08408.

01550-08407

1
Out of stock

10

BOLT (6X125)

09103-06033

1
Out of stock

11

BOLT (6X105) This part replaces 09103-06025.

09103-06067

3
Out of stock

12

BOLT This part replaces 01517-06908.

01550-06907

4
Out of stock

13

BOLT This part replaces 01517-06608.

01550-06607

2
Out of stock

14

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

4
Out of stock

15

JET,AIR (#100)

09493-20012

1
Out of stock

16

JET, OIL GALLERY SHAFT

09493-40001

2
Out of stock

17

JET, OIL GALLERY CYLINDER

09493-40002

2
Out of stock

18

O RING

09280-03003

2
Out of stock

19

BOLT This part replaces 09100-10139.

09100-10034

1
Out of stock

20

BOLT (10x210) This part replaces 09100-10145.

09100-10033

1
Out of stock

21

BOLT This part replaces 09100-10136.

41189-17X00

1
Out of stock

22

BOLT (10X90)

01517-10905

1
Out of stock

23

NUT This part replaces 08319-31105.

08319-3110A

4
Out of stock

24

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

3
Out of stock

25

SPACER, ENGINE MOUNTING

11610-44100

1
Out of stock
← Crankcase Crankcase Cover →
