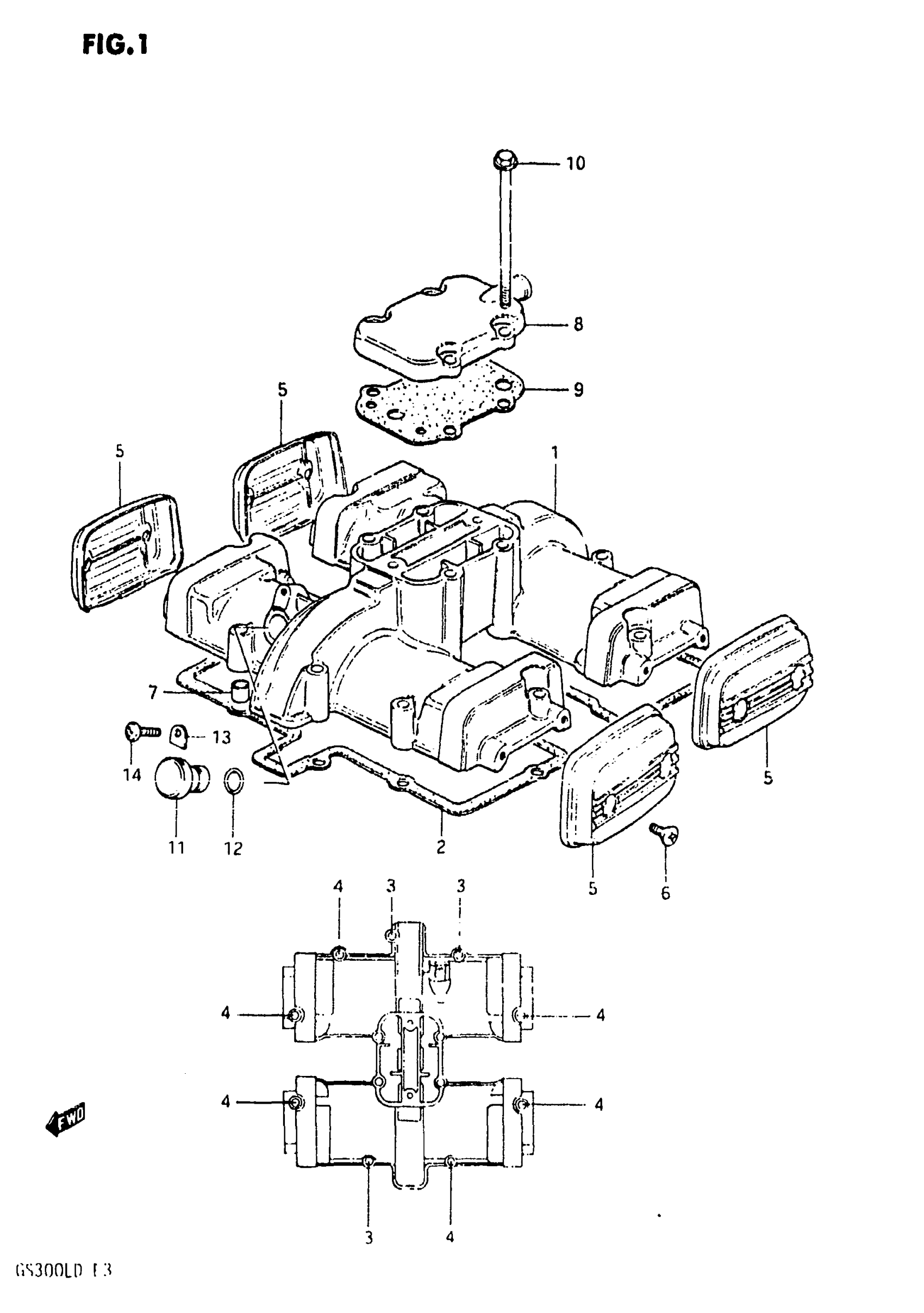

Suzuki GS300L (1983) CYLINDER HEAD COVER (MODEL Z) Diagram

COVER, CYLINDER HEAD This part replaces 11171-11420.

11171-11450

Unavailable

GASKET,CYL HD C This part replaces 11173-11420.

11173-11420-H17

Unavailable

BOLT This part replaces 01517-06408.

01550-06407

$2.69

BOLT This part replaces 01517-06358.

01550-06357

$2.77

CAP, SIDE

11174-49210

$20.97

SCREW

09127-05013

$1.49

PIN

09206-08001

$1.78

COVER, BREATHER

11176-11401

Unavailable

GASKET,BREATHER This part replaces 11177-11400.

11177-114V0

Unavailable

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

PLUG

26442-45000

$19.72

SEAL BAND

26451-45000

$5.05

PLATE, GEAR SLEEVE

26449-33000

$4.35

SCREW

09128-05101

$1.49
