1983 Suzuki GS300L Carburetor Diagram

← All diagrams

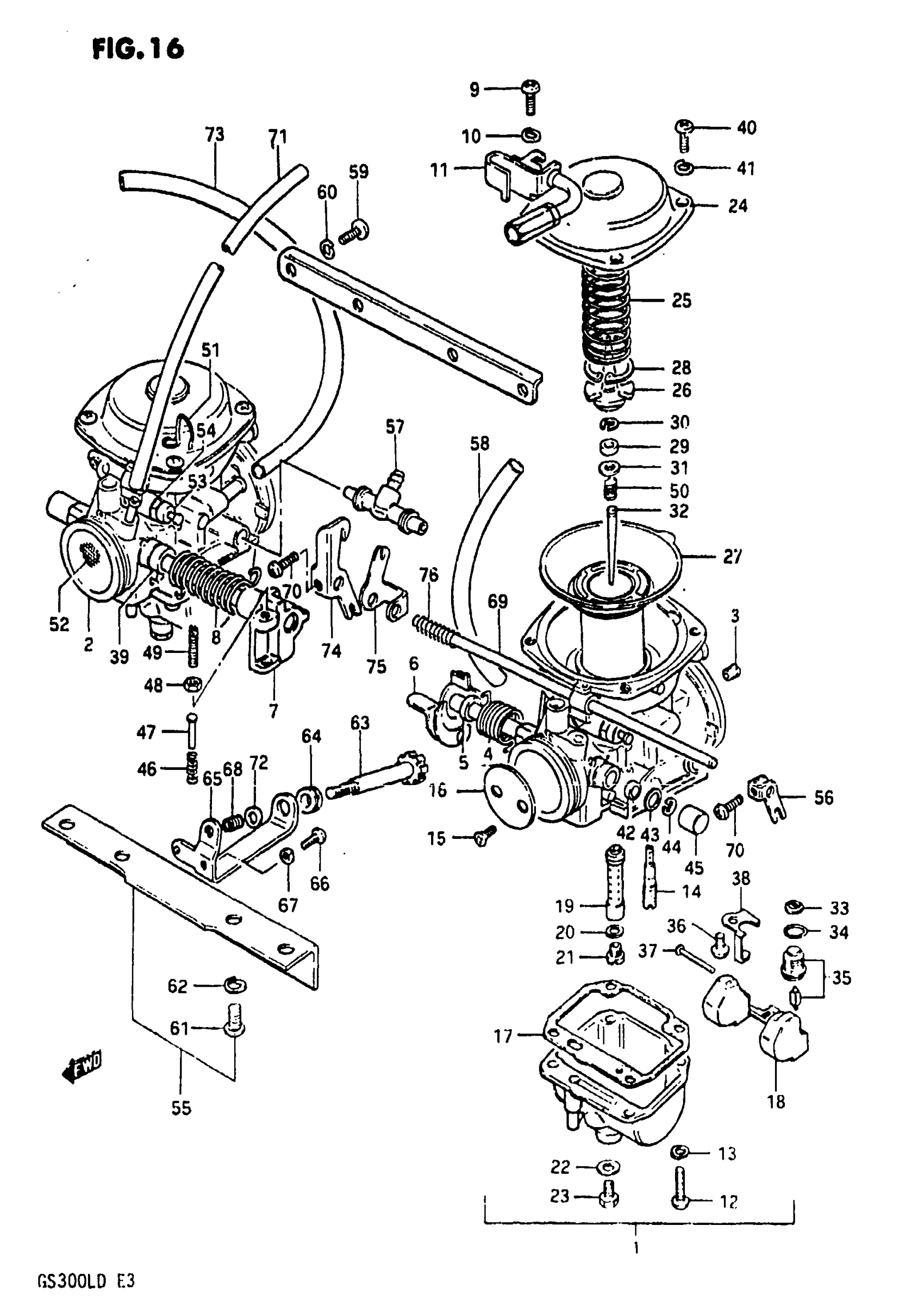

Find the part on the Carburetor diagram for your 1983 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS300L Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, LH

13201-11500

1
Out of stock

2

CARBURETOR ASSY, RH | Includes Item(s) 3 - 54

13202-11500

1
Out of stock

3

JET,MAIN This part replaces 09491-29009.

09491-29010

2
Out of stock

4

SPRING | LH

13573-11400

1
Out of stock

5

RING | LH

13574-45110

1
Out of stock

6

SHAFT | LH

13550-11400

1
Out of stock

7

SHAFT | RH

13550-11410

1
Out of stock

8

SPRING | RH

13573-11410

1
Out of stock

9

SCREW | LH This part replaces 02112-05128.

02112-05127

1
Out of stock

10

LOCK WASHER | LH This part replaces 08321-21058.

08321-0105A

1
Out of stock

11

BRACKET | LH

13627-11500

1
Out of stock

12

SCREW This part replaces 02112-04208.

02112-0420A

8
Out of stock

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

8
Out of stock

14

JET, PILOT (17.5)

09492-17009

2
Out of stock

15

SCREW

13604-44080

4
Out of stock

16

VALVE, THROTTLE (80)

13551-11420

2
Out of stock

17

GASKET,FLOAT CH This part replaces 13251-11410.

13251-11401

2
Out of stock

18

FLOAT

13250-44080

2
Out of stock

19

JET, NEEDLE (0-7)

09494-00300

2
Out of stock

20

2

$2.92

In stock

21

JET, MAIN (115)

09491-23011

2
Out of stock

22

GASKET

13246-44080

2

$2.92

In stock

23

SCREW, GUIDE

13247-44080

2

$8.18

In stock

24

COVER

13502-11400

2
Out of stock

25

SPRING

13503-44080

2
Out of stock

26

HOLDER, GUIDE

13389-44030

2
Out of stock

27

DIAPHRAGM

13500-11410

2
Out of stock

28

CLIP

13581-44030

2
Out of stock

29

RING

13387-47010

2

$7.41

In stock

30

E RING

13394-31210

2
Out of stock

31

WASHER

13382-44030

2

$3.81

In stock

32

NEEDLE, JET (5C53)

13383-11900

2
Out of stock

33

2

$10.26

In stock

34

2

$5.97

In stock

36

2

$1.67

In stock

37

PIN

13254-92311

2

$2.41

In stock

38

PLATE

13373-11400

2

$7.22

In stock

39

RING | RH

13574-11400

1
Out of stock

40

SCREW | LH:3, RH:4 This part replaces 02112-05108.

02112-05107

7
Out of stock

41

LOCK WASHER | LH:3, RH:4

04321-21058

—
Out of stock

42

SEAL This part replaces 13651-51010.

13651-51011

4
Out of stock

43

GASKET

13557-47070

2
Out of stock

44

E RING

13617-44080

2
Out of stock

45

CAP

13578-47070

2
Out of stock

46

SPRING | RH

13268-44010

1
Out of stock

47

PIN | RH

13575-47070

1
Out of stock

48

NUT | RH

13607-47070

1
Out of stock

49

SCREW | RH

13605-47080

1
Out of stock

50

SPRING

13388-44030

2

$9.17

In stock

51

CLIP, HOSE | RH

13692-11400

1
Out of stock

52

NET

13281-11400

2
Out of stock

53

CAP

13682-09210

2
Out of stock

54

O RING This part replaces 13295-15010.

09280-08014

2
Out of stock

55

FLANGE ASSY | Includes Item(s) 56 - 76

13210-11500

1
Out of stock

56

LEVER

13422-11400

2
Out of stock

57

NIPPLE

13685-11400

1
Out of stock

58

HOSE,5X10X600 This part replaces 13683-11400.

44421-13ER0

1
Out of stock

59

SCREW This part replaces 02112-05128.

02112-05127

4
Out of stock

60

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

61

SCREW This part replaces 02112-06168.

02112-06167

4
Out of stock

62

4

$2.28

In stock

63

ADJUSTER

13267-11400

1
Out of stock

64

BUSH

13681-44110

1
Out of stock

65

BRACKET

13627-44120

1
Out of stock

66

1

$1.55

In stock

67

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

68

SPRING

13271-93011

1
Out of stock

69

SHAFT

13410-44460

1
Out of stock

70

SCREW

13605-09300

2
Out of stock

71

HOSE(4.5X8.5X60 This part replaces 13683-45110.

09355-45001-600

1
Out of stock

72

WASHER

13432-47090

1
Out of stock

73

HOSE,5X10X600 This part replaces 13683-11450.

44421-13ER0

1
Out of stock

74

LEVER

13413-11940

1
Out of stock

75

LEVER

13413-11950

1
Out of stock

76

SPRING

13417-18630

1
Out of stock
