1983 Suzuki GS300L AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1983 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

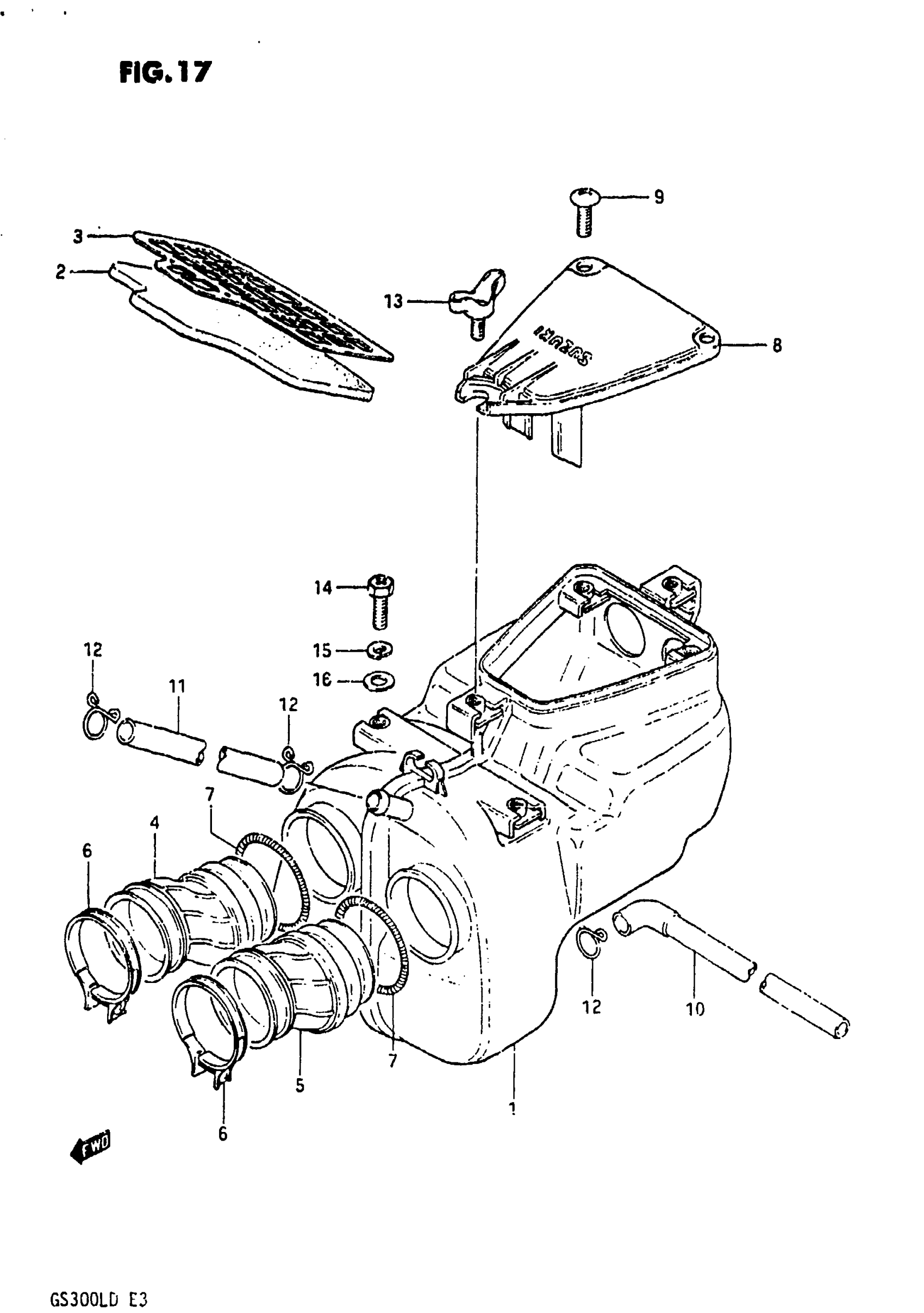

1983 Suzuki GS300L AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | MODEL Z This part replaces 13700-44500.

13700-44502

1
Out of stock

1

CLEANER ASSY, AIR | MODEL D; Includes Item(s) 2 - 13 This part replaces 13700-44501.

13700-44502

1
Out of stock

2

FILTER

13781-44500

1
Out of stock

3

HOLDER

13792-44500

1
Out of stock

4

TUBE, OUTLET RH

13881-44500

1
Out of stock

5

TUBE, OUTLET LH

13882-44500

1
Out of stock

6

CLAMP This part replaces 09402-56306.

09402-56901

2
Out of stock

7

CLAMP, CLEANER SIDE

13931-02100

2
Out of stock

8

CAP

13740-44500

1
Out of stock

9

SCREW

02142-06167

2
Out of stock

10

TUBE,DRAIN This part replaces 13870-00160.

13870-21309

1
Out of stock

11

HOSE This part replaces 13851-00260.

09352-11154-600

1
Out of stock

12

CLIP This part replaces 13879-14301.

09401-14301

3
Out of stock

13

BOLT This part replaces 13831-44500.

09119-06086-XC0

1
Out of stock

14

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

3
Out of stock

15

3

$2.28

In stock

16

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock
