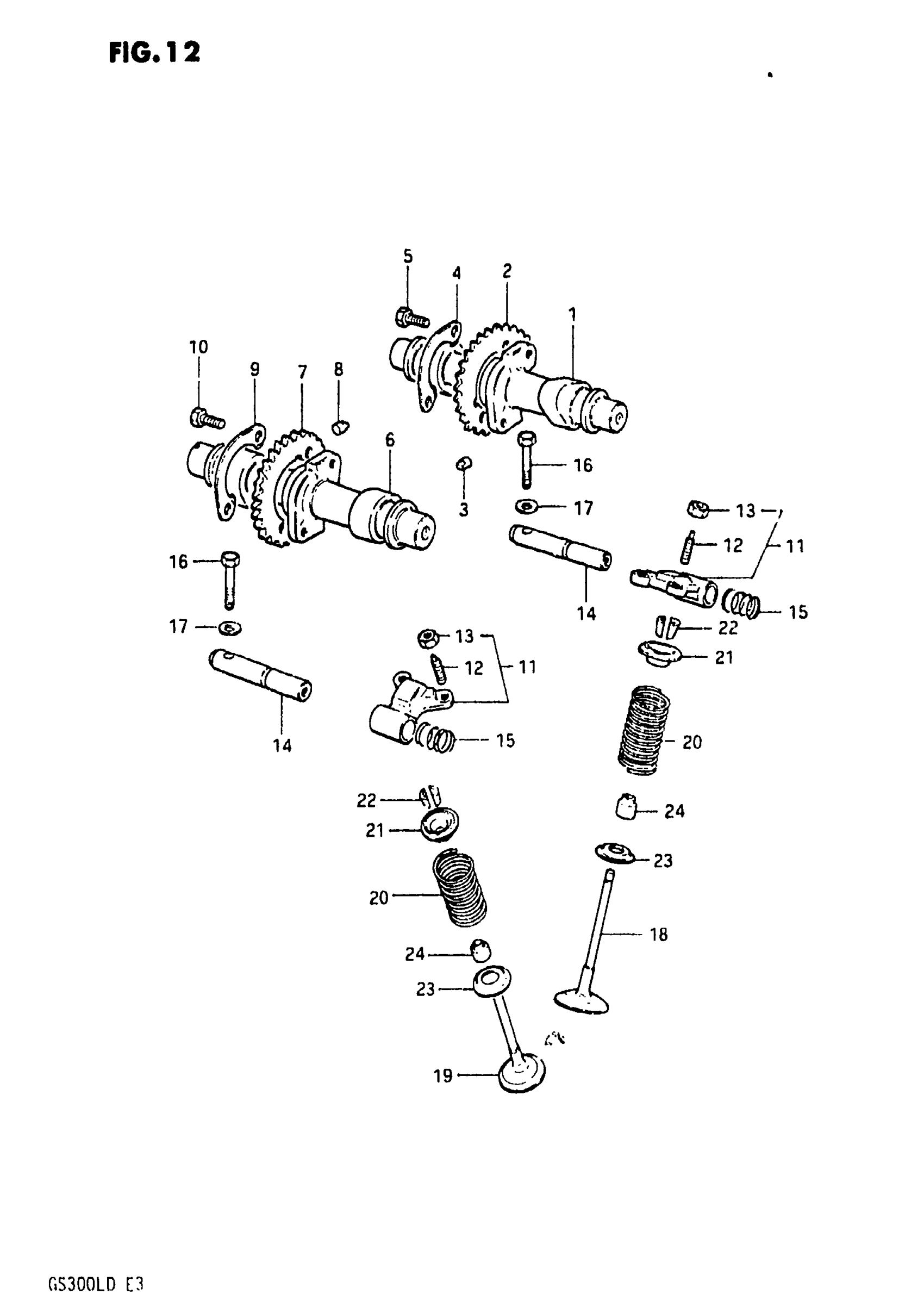

Suzuki GS300L (1983) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE This part replaces 12711-11900.

12711-11401

Unavailable

2

SPROCKET (NT:30)

12741-11401

Unavailable

3

PIN

12748-44000

Unavailable

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

BOLT

09111-06027

$1.72

6

CAM SHAFT, EXHAUST This part replaces 12721-11900.

12721-11401

Unavailable

7

SPROCKET (NT:30)

12751-11401

Unavailable

8

PIN

12748-44000

Unavailable

9

WASHER This part replaces 12747-44000.

12747-44001

$2.50

10

BOLT

09111-06027

$1.72

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 - 13 This part replaces 12840-11400.

12840-11401

Unavailable

12

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

13

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.94

14

SHAFT, ROCKER ARM

12860-44200

Unavailable

15

SPRING

09440-13014

$2.45

16

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

VALVE, INTAKE This part replaces 12911-11400.

12911-11410

Unavailable

19

VALVE, EXHAUST This part replaces 12912-11400.

12912-11410

Unavailable

20

SPRING, VALVE

12921-11410

Unavailable

21

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

22

COTTER, VALVE

12932-49200

$2.28

23

SEAT, SPRING

12933-38200

$6.38

24

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
