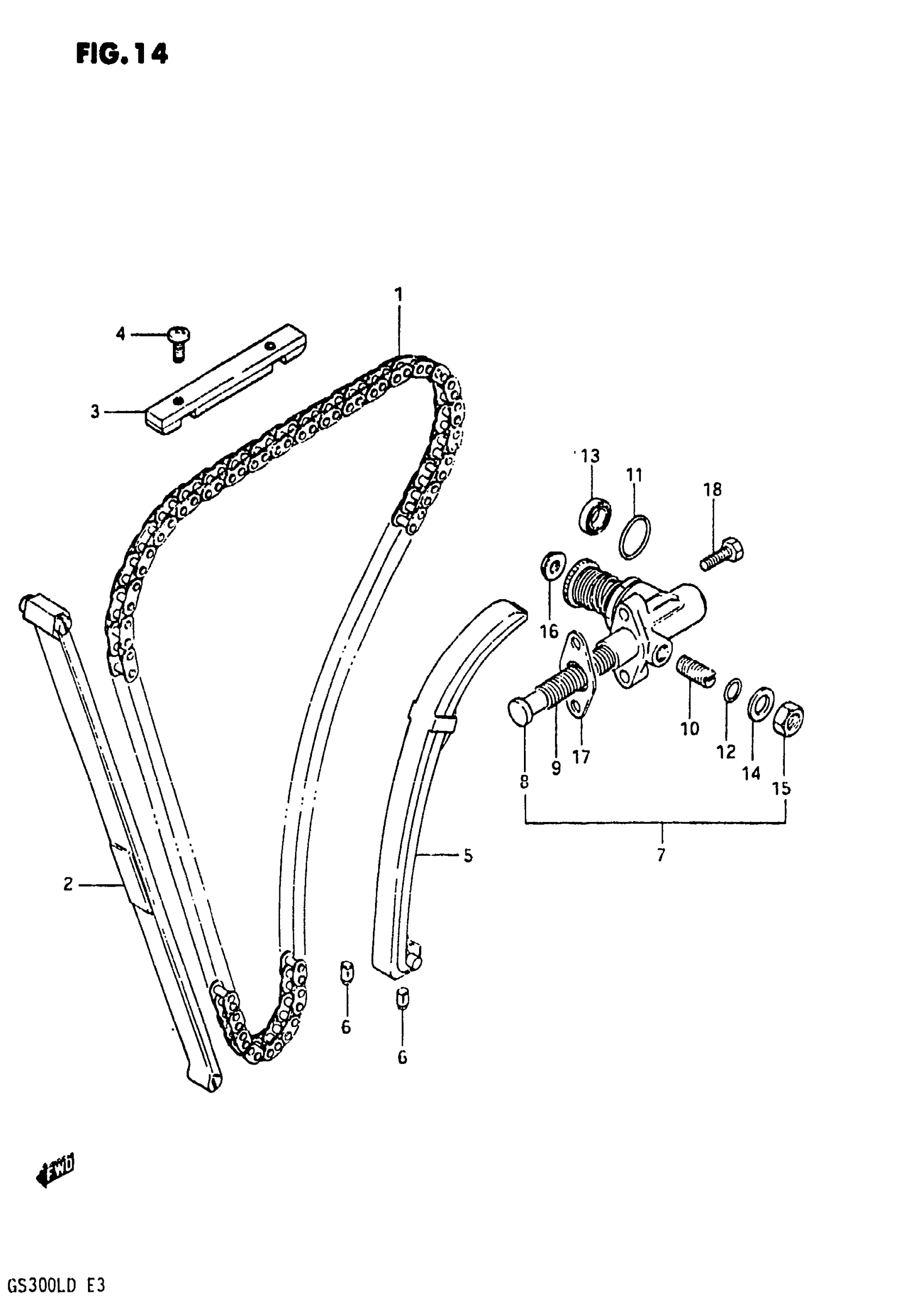

Suzuki GS300L (1983) CAM CHAIN (MODEL D) Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE This part replaces 12760-11400.

12760-46E01

Unavailable

2

GUIDE, CAM CHAIN NO.1

12771-11401

Unavailable

3

GUIDE, CAM CHAIN NO.2

12782-47040

Unavailable

4

SCREW This part replaces 02112-05128.

02112-05127

$1.97

5

TENSIONER, CAM CHAIN

12810-11400

Unavailable

6

CUSHION

12814-44101

$6.60

7

ADJUSTER ASSY,T | Includes Item(s) 8 - 16 This part replaces 12830-47011.

12830-0930V

Unavailable

8

PUSH ROD

12833-47001

Unavailable

9

SPRING

09440-12017

$2.45

10

SCREW This part replaces 12838-45010.

12838-45001

$8.42

11

O RING

09280-21013

$2.28

12

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

13

OIL SEAL

09284-10006

$3.42

14

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

15

NUT This part replaces 08310-11085.

08310-0008A

$1.84

16

NUT This part replaces 08316-16065.

08316-1006B

$2.50

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$4.22

18

BOLT, STARTING MOTOR This part replaces 09128-06022.

09103-06212

$2.47
