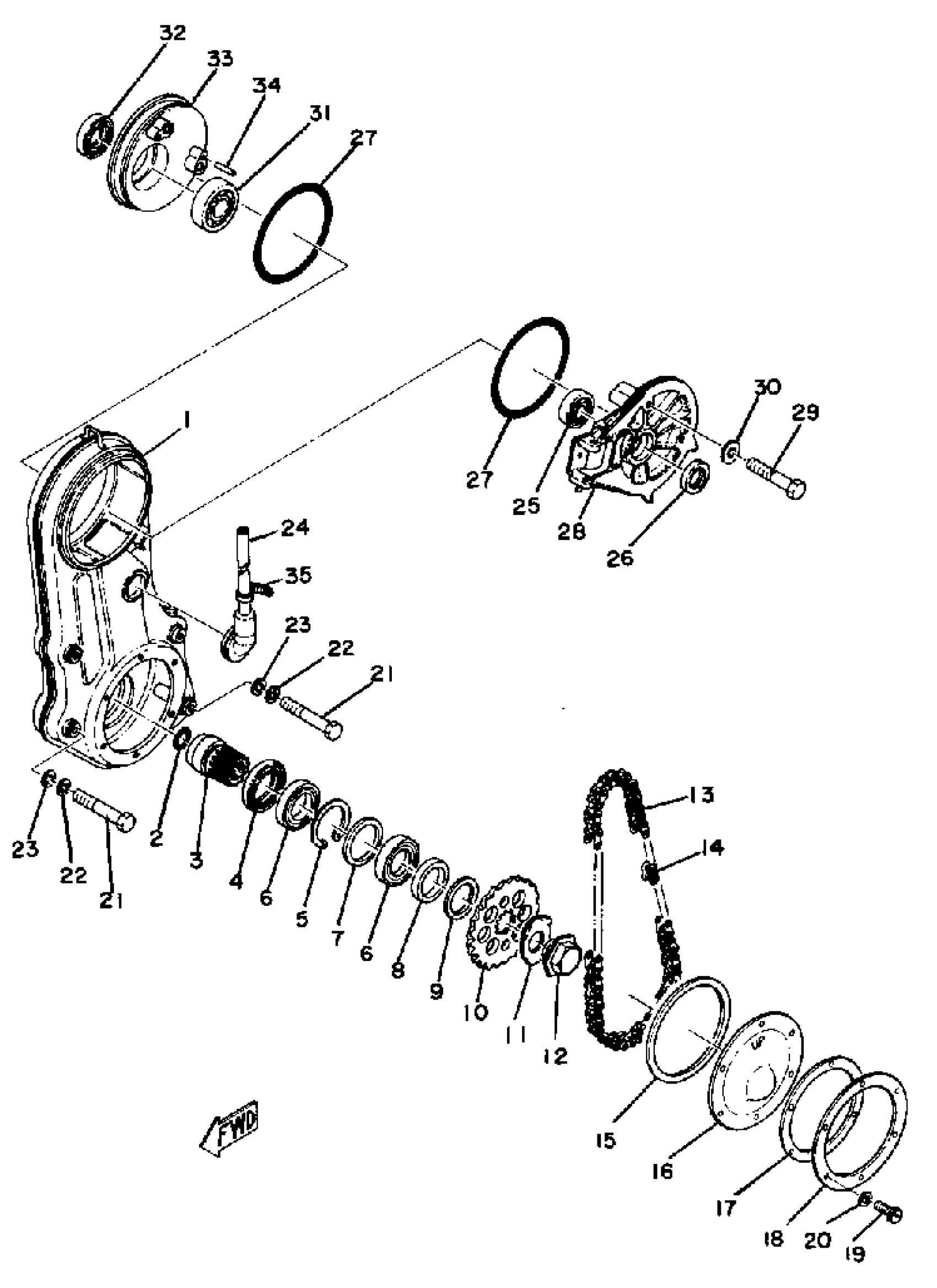

Find the part on the Track Drive diagram for your 1977 Yamaha GS300A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS300A Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(841-47541-00-35)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(841-47571-00-00)

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

6

BEARING

93306-90702-00

1
Out of stock

7

SPACER

90560-35050-00

1
Out of stock

8

COLLAR

90387-35206-00

1
Out of stock

9

WASHER, PLATE(1YW)

90201-352L0-00

—

$4.98

In stock

10

SPROCKET, CHN DRVN

(812-47548-40-00)

1
Out of stock

10

SPROCKET, CHN DRVN

(812-47548-50-00)

1
Out of stock

10

SPROCKET, CHN DRVN

(812-47548-60-00)

1
Out of stock

11

WASHER, LOCK

90215-24029-00

1
Out of stock

12

BOLT

90109-24203-00

1
Out of stock

13

CHAIN

94510-40066-00

1
Out of stock

13

CHAIN

(94510-40068-00)

1
Out of stock

14

JOINT CHAIN

(94610-40001-00)

1
Out of stock

15

RING, HOUSING

(806-47558-00-00)

1
Out of stock

16

CAP, HOUSING

(821-47543-00-00)

1
Out of stock

17

GASKET

821-47544-00-00

1
Out of stock

18

PLATE

(821-47591-00-00)

1
Out of stock

19

SCREW

90143-05004-00

—

$2.20

In stock

20

WASHER, SEAL

90210-05005-00

1
Out of stock

21

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

CAP 2

(861-47559-00-00)

1
Out of stock

25

—

$31.64

In stock

26

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

27

O-RING

93211-13109-00

1
Out of stock

28

HOUSING, SEC SHAFT

(818-47561-00-00)

1
Out of stock

29

BOLT (663)

97013-08060-00

—

$3.25

In stock

30

WASHER (821)

90210-08002-00

—

$5.68

In stock

31

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

32

OIL SEAL (30X47X7-810)

93102-30083-00

—

$11.08

In stock

33

HOUSING, SEC SHAFT

810-47562-00-00

1
Out of stock

34

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

35

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
