1977 Yamaha GS300A Pump Drive Gear Diagram

← All diagrams

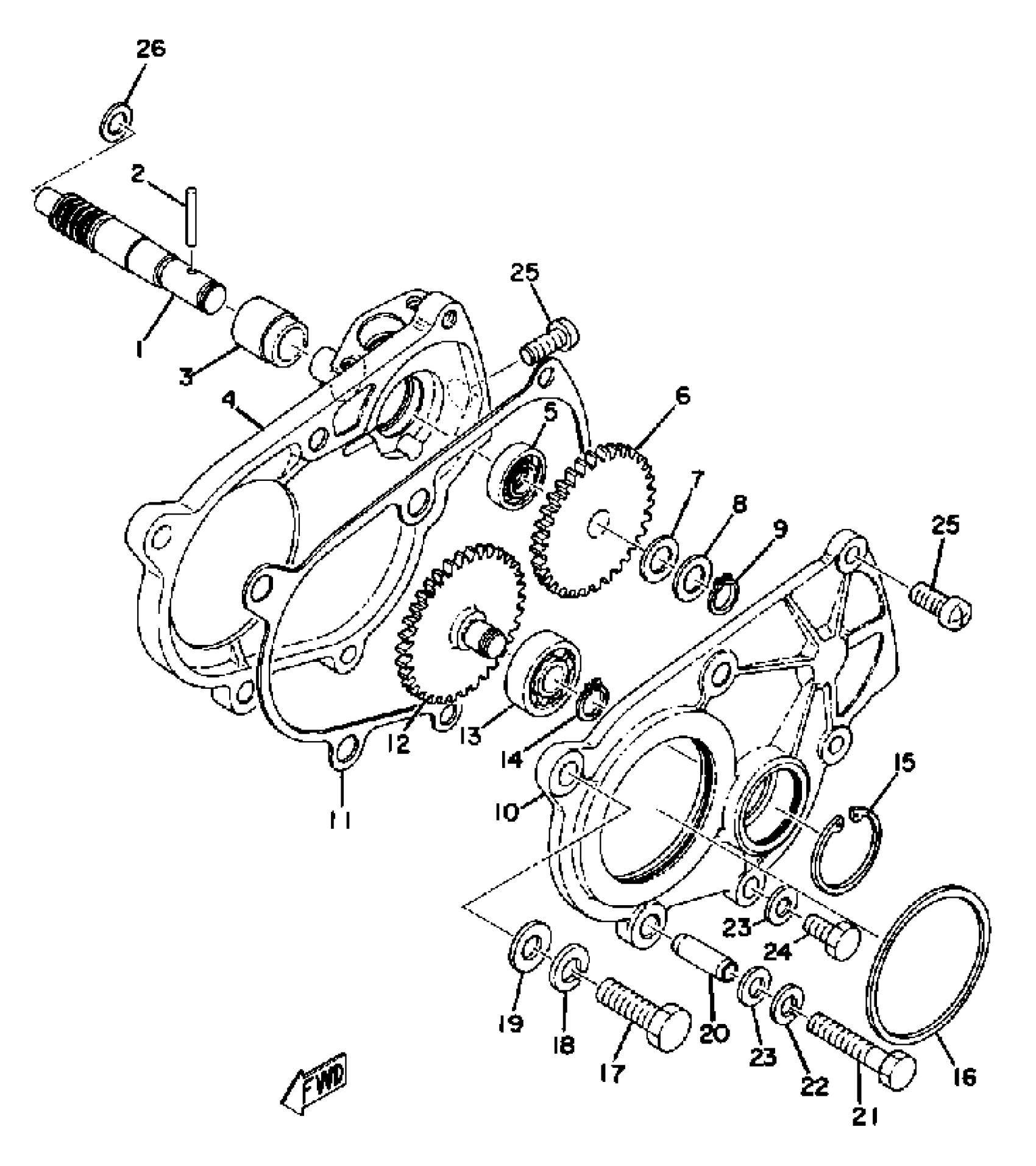

Find the part on the Pump Drive Gear diagram for your 1977 Yamaha GS300A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS300A Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

821-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(8E6-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

COVER, OIL PUMP R

839-15426-00-00

1
Out of stock

11

GASKET 2

860-15466-01-00

1
Out of stock

12

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

13

—

$29.35

In stock

14

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

15

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

16

SEAL, GREASE

(838-13119-00-00)

1
Out of stock

17

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

PIN, DOWEL

91810-18022-00

1
Out of stock

21

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

SCREW, PAN

98507-06014-00

—

$6.18

In stock

26

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
