Description

Price

1

TACHOMETER ASSEMBLY

(861-83540-01-00)

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

3

SOCKET, METER

(861-83536-40-00)

Unavailable

4

NUT, HEXAGON (663)

95380-05600-00

$8.49

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

. DAMPER

861-83523-40-00

Unavailable

7

. PLATE, FITTING

861-83514-40-00

Unavailable

8

TACHOMETER CABLE

839-83560-00-00

Unavailable

9

CAP, HOUSING

821-17819-00-00

Unavailable

10

OIL SEAL (6X12X4-821)

93104-06033-00

$5.60

11

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

Unavailable

12

GEAR, DRIVEN (10T)

813-17841-00-00

Unavailable

13

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

14

GASKET

821-17818-02-00

$6.99

15

COVER, OIL PUMP

(839-15416-00-00)

Unavailable

16

OIL SEAL (J10)

93101-10090-00

Unavailable

17

SHAFT, WORM

821-13175-00-00

Unavailable

18

GASKET 2

860-15466-01-00

Unavailable

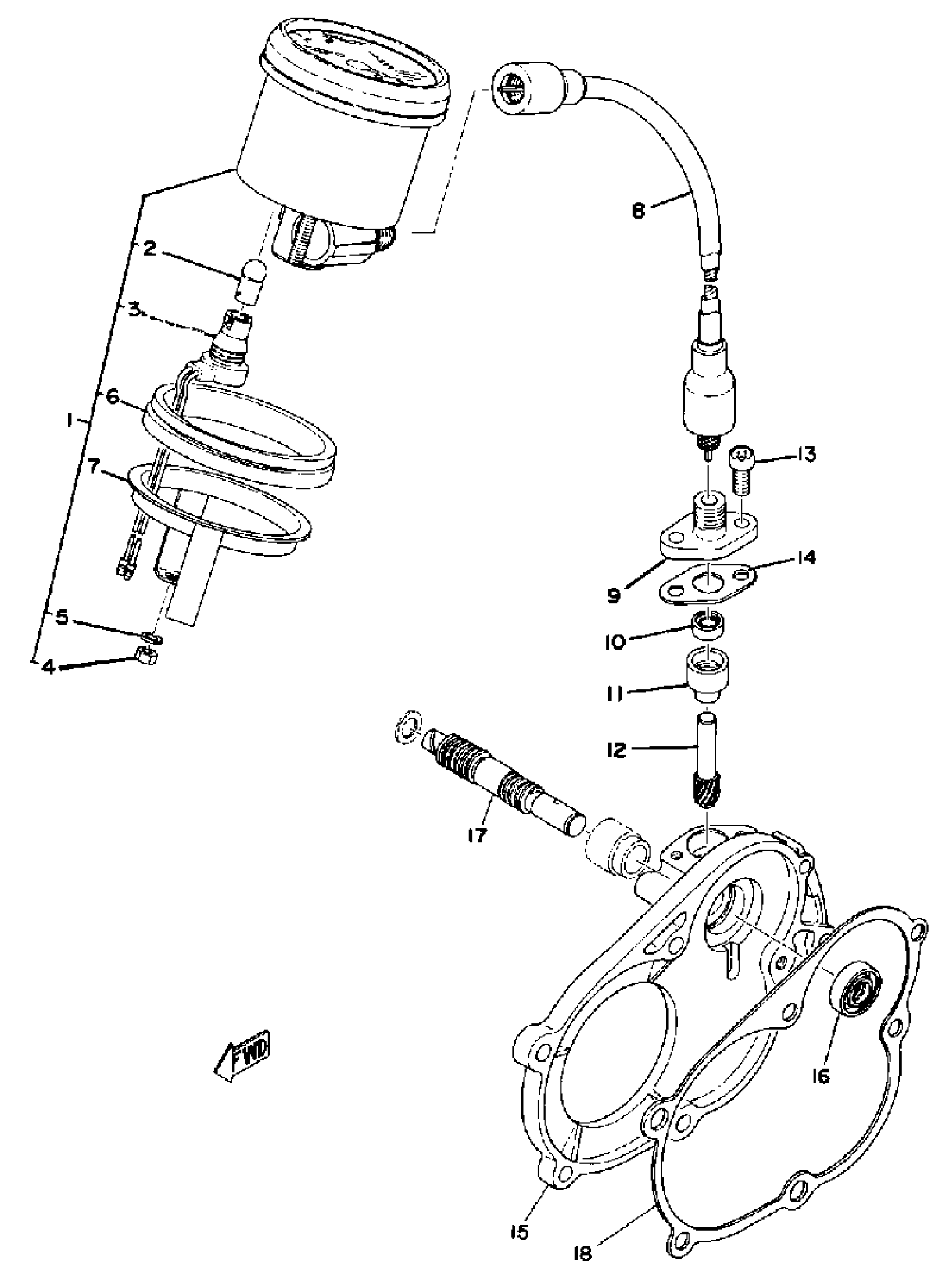

Yamaha GS300A 1977 TACHOMETER UNIT Diagram

TACHOMETER ASSEMBLY

BULB (12V-3.4W)

SOCKET, METER

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

. DAMPER

. PLATE, FITTING

TACHOMETER CABLE

CAP, HOUSING

OIL SEAL (6X12X4-821)

BUSH, DRIVEN GEAR OUTER

GEAR, DRIVEN (10T)

SCREW, PAN HEAD(62X)

GASKET

COVER, OIL PUMP

OIL SEAL (J10)

SHAFT, WORM

GASKET 2
