1977 Yamaha GS300A Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1977 Yamaha GS300A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

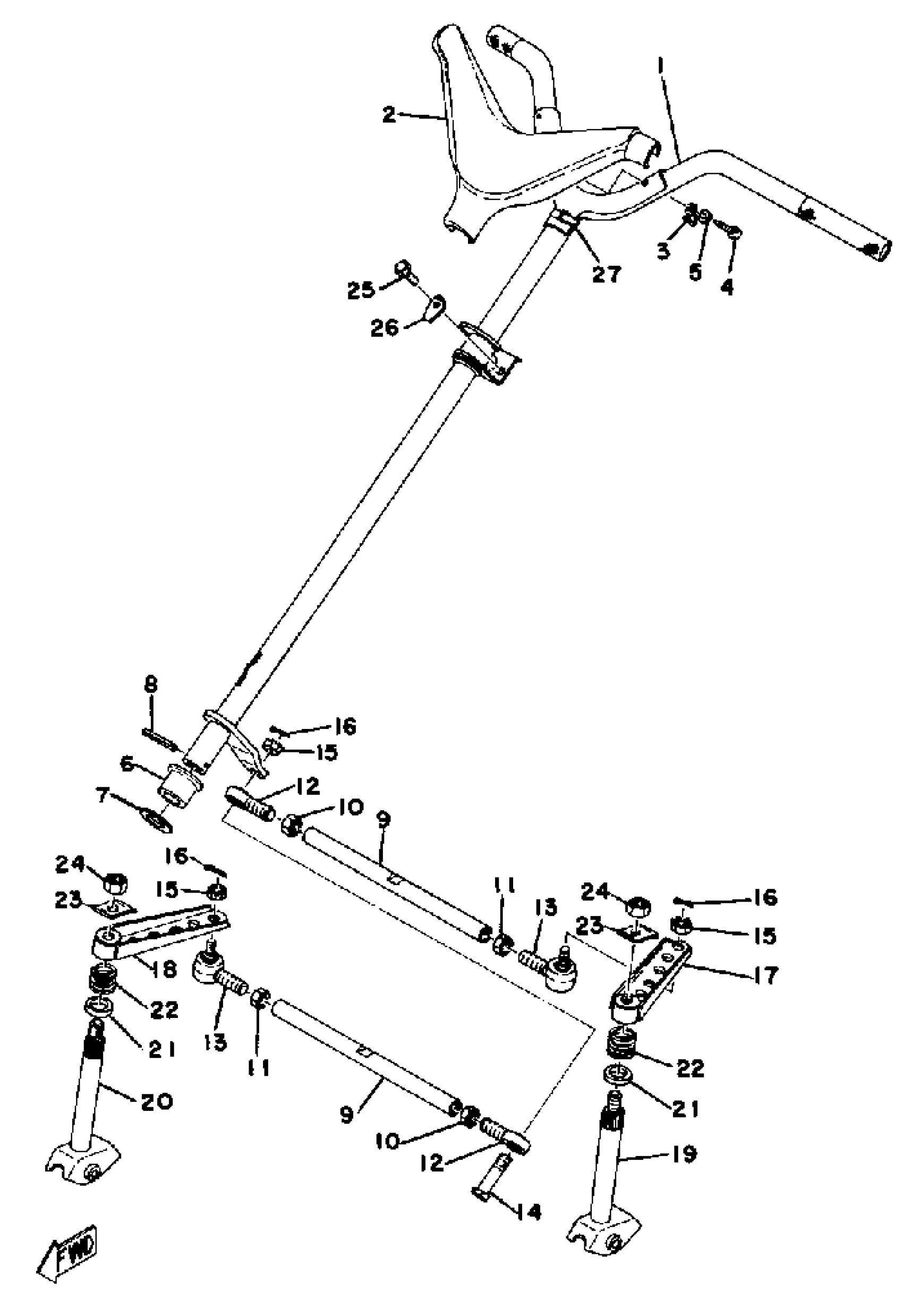

1977 Yamaha GS300A Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(8E6-23811-00-00)

1
Out of stock

2

PAD, STEERING

(863-23815-01-00)

1
Out of stock

3

CLAMP

(90462-08003-00)

1
Out of stock

4

SCREW, PAN

98507-05035-00

1

$6.69

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

BEARING, STRG LOWER

(853-23875-00-00)

1
Out of stock

7

BEARING, STEERING

(841-23812-01-00)

1
Out of stock

8

PIN, SPRING

91609-60045-00

1
Out of stock

9

BOLT, DOME HEAD

(90106-10015-00)

1
Out of stock

10

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

11

NUT (821-23834-00)

90170-12054-00

1
Out of stock

12

JOINT, UNIVERSAL 1

861-23841-00-00

1
Out of stock

13

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

14

BOLT

(90109-10408-00)

1
Out of stock

15

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

16

PIN, COTTER

91490-25020-00

—

$2.94

In stock

17

ARM, OUTSIDE 1

(841-23851-01-00)

1
Out of stock

18

ARM, OUTSIDE 2

841-23852-01-00

1
Out of stock

19

COLUMN, SKI 1

853-23853-01-00

1
Out of stock

20

COLUMN, SKI 2

853-23854-01-00

1
Out of stock

21

SPACER

90560-20037-00

1
Out of stock

22

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

23

WASHER, LOCK

90215-12037-00

1
Out of stock

24

NUT(3DM)

95304-12600-00

—

$6.68

In stock

25

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

26

WASHER, LOCK

(90215-06038-00)

1
Out of stock

27

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
