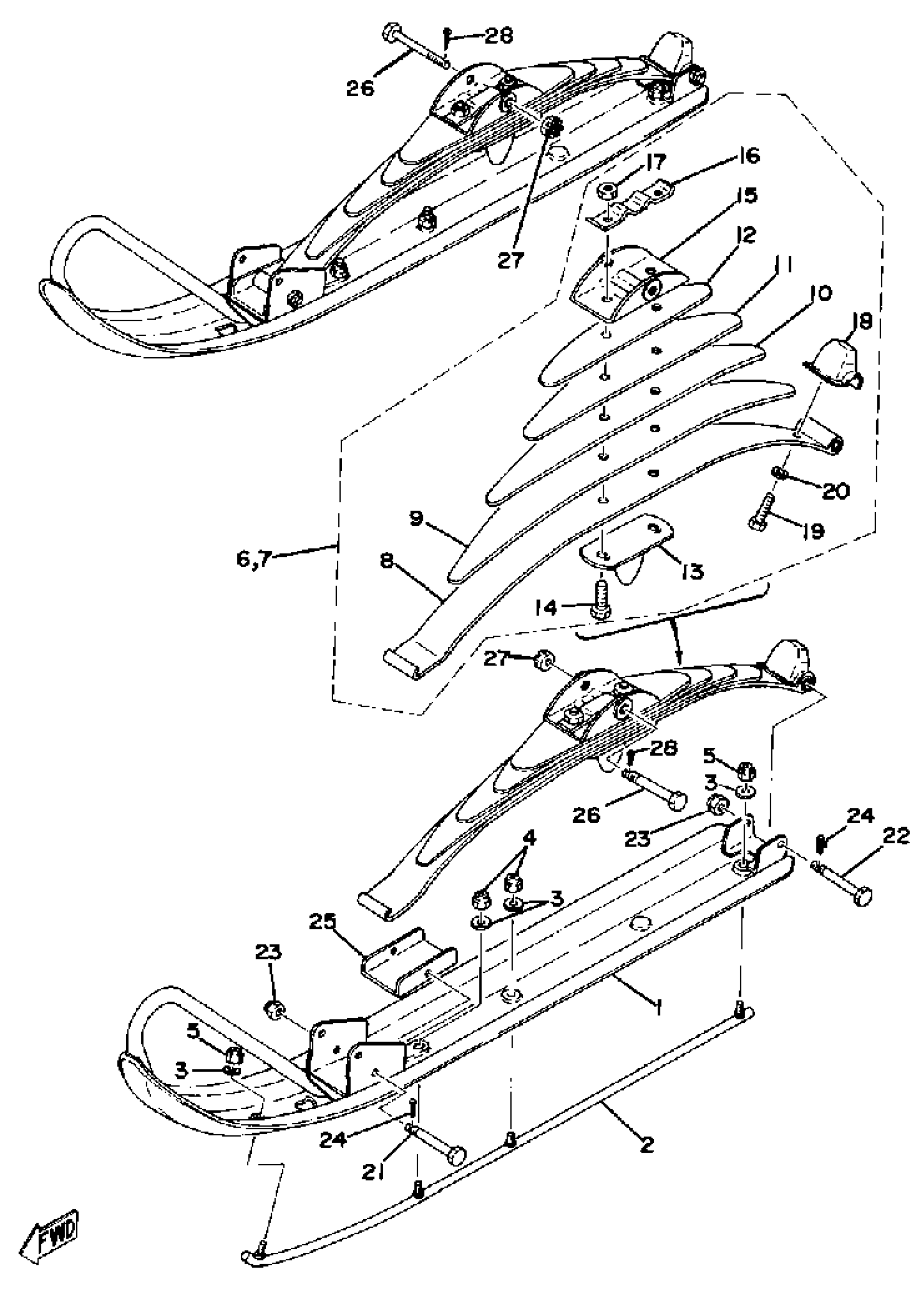

Yamaha GS300A 1977 SKI Diagram
#
Description
Price
1
SKI COMP. 1
8E3-23710-09-00
Unavailable
2
RUNNER 1
8E3-23731-00-XX
Unavailable
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
NUT
90185-08055-00
$9.49
5
NUT, NYLON
95717-08300-00
$2.70
6
SPRING ASSEMBLY 1
881-23760-01-00
Unavailable
7
SPRING ASSEMBLY 2
(881-23770-01-00)
Unavailable
8
LEAF 1
(865-23761-00-00)
Unavailable
9
LEAF 2
865-23762-10-00
Unavailable
10
. LEAF 3
865-23763-00-00
Unavailable
11
LEAF 2
865-23762-10-00
Unavailable
12
. LEAF 5
865-23771-00-00
Unavailable
13
. SEAT, SPRING 1
878-23768-00-00
Unavailable
14
. BOLT
90101-10060-00
Unavailable
15
. SADDLE 1
806-23766-00-00
Unavailable
16
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
17
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
18
STOPPER 1
(841-23743-02-00)
Unavailable
19
BOLT (11T)
90101-06576-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
Unavailable
22
BOLT, PIN HOLE (8A7)
90102-08027-00
Unavailable
23
NUT, NYLON
95717-08300-00
$2.70
24
PIN, COTTER
91490-20025-00
Unavailable
25
PLATE, WEAR
888-23735-00-00
Unavailable
26
BOLT, WITH HOLE
90102-10023-00
Unavailable
27
NUT, SLOTTED
95306-10900-00
Unavailable
28
PIN, COTTER
91490-25020-00
Unavailable
