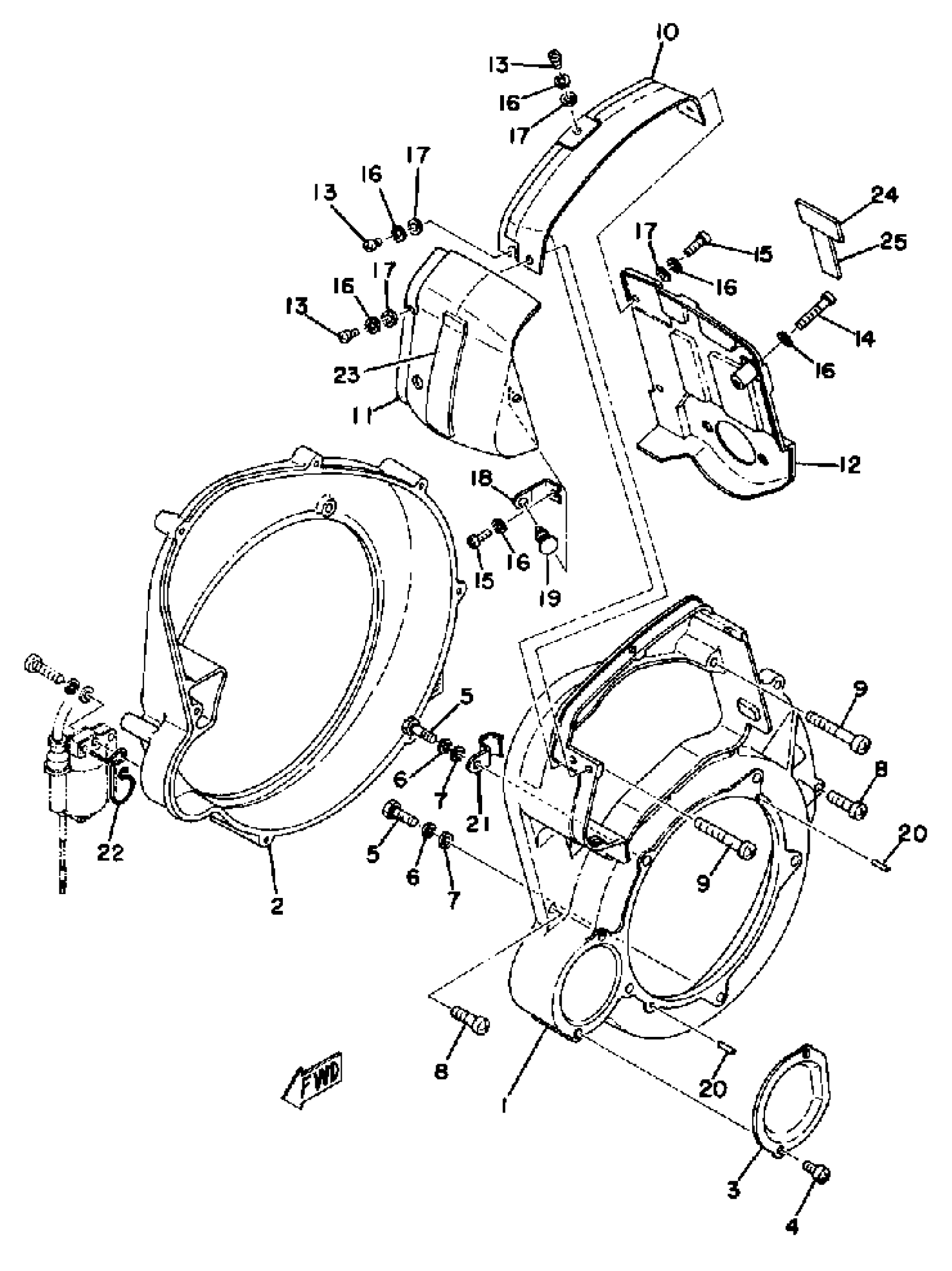

Yamaha GS300A 1977 FAN CASE - AIR SHROUD Diagram

#

Description
Price

1

CASE, FAN

839-12621-00-00

Unavailable

2

CASE, FAN 2

867-12622-00-00

Unavailable

3

PLATE

(812-12633-00-00)

Unavailable

4

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

WASHER, SPRING

92995-06100-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

SCREW, PAN

98507-06050-00

$3.28

10

AIR SHROUD, CYLINDER 1

(839-12651-00-00)

Unavailable

11

AIR SHROUD, CYLINDER 2

(822-12652-00-00)

Unavailable

12

AIR SHROUD, CYLINDER 3

(839-12653-00-00)

Unavailable

13

SCREW, BINDING

98907-05012-00

$8.49

14

SCREW, BIND

(98906-05030-00)

Unavailable

15

SCREW, BINDING

98907-05012-00

$8.49

16

WASHER(3SX)

92907-05100-00

Unavailable

17

WASHER(1RW)

92907-05600-00

Unavailable

18

STAY, CLAMP 1

(822-12655-00-00)

Unavailable

19

DAMPER, AIR SHRD 1

(812-12658-00-00)

Unavailable

20

PIN,DOWEL (137)

93604-14012-00

Unavailable

21

CLAMP, CORD

(822-82361-00-00)

Unavailable

22

CLAMP, OIL PIPE

(822-24369-01-00)

Unavailable

23

DAMPER, AIR SHRD 1

(899-12658-00-00)

Unavailable

24

DAMPER, AIR SHRD 2

(899-12659-00-00)

Unavailable

25

DAMPER, AIR SHRD 3

(899-12668-00-00)

Unavailable
