CRANK - PISTON

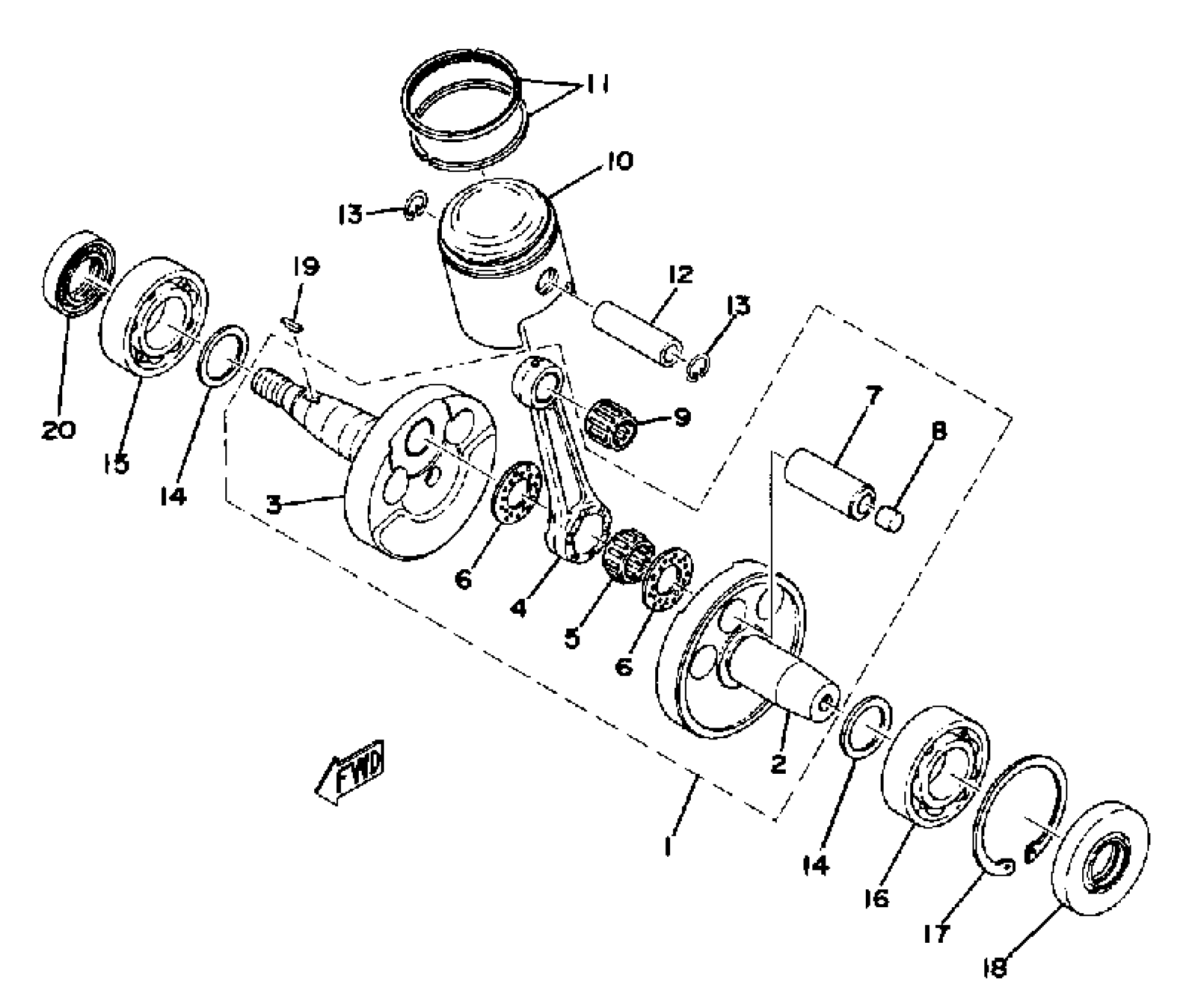

Yamaha GS300A 1977 CRANK - PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(8E6-11400-00-00)
Unavailable
2
CRANK 1
(860-11412-02-00)
Unavailable
3
CRANK 2
(853-11422-01-00)
Unavailable
4
. ROD, CONNECTING
839-11651-00-00
Unavailable
5
BEARING
93310-424E8-00
Unavailable
6
WASHER (152-11685-00)
90209-24073-00
$14.99
7
PIN, CRANK 1
(822-11681-00-00)
Unavailable
8
BUSH, CRANK PIN
(822-11682-00-00)
Unavailable
9
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
10
PISTON STD
839-11631-00-96
Unavailable
10
PISTON 1 O/S 0.25
839-11635-00-00
Unavailable
10
PISTON 2 O/S 0.50
839-11636-00-00
Unavailable
10
PISTON 3 O/S 0.75
(839-11637-00-00)
Unavailable
10
PISTON 4 O/S 1.00
(839-11638-00-00)
Unavailable
11
PISTON RINGSET STD
839-11610-00-00
Unavailable
11
PISTON RINGSET 1ST
839-11610-10-00
Unavailable
11
PISTON RINGSET 2ND
839-11610-20-00
Unavailable
11
PISTON RINGSET 3RD
(839-11610-30-00)
Unavailable
11
PISTON RINGSET 4TH
839-11610-40-00
Unavailable
12
PIN, PISTON
214-11633-00-00
Unavailable
13
CLIP 6041163400
93450-20026-00
Unavailable
14
SHIM, CRANK 1
(812-11561-00-03)
Unavailable
15
BEARING(3KW)
93306-30630-00
Unavailable
16
BEARING(4GB)
93306-30629-00
Unavailable
17
CIRCLIP(8E6)
93450-72048-00
Unavailable
18
OIL SEAL, SD-TYPE (FPJ-32-72-8-1 TS)
93102-32161-00
Unavailable
19
KEY, WOODRUFF
90280-05001-00
Unavailable
20
OIL SEAL, SD-TYPE
93102-30112-00
Unavailable
