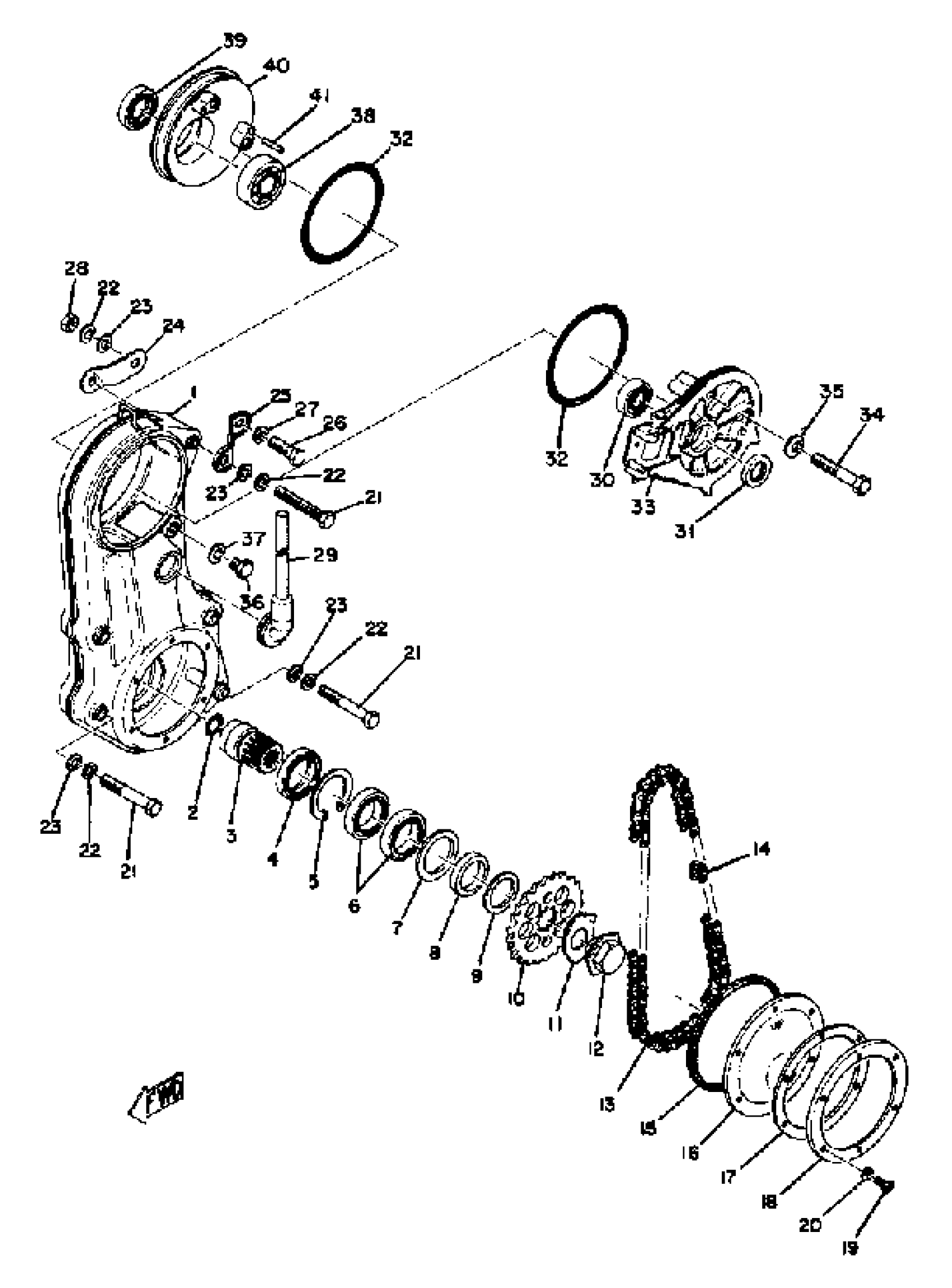

Yamaha GS300 1976 TRACK DRIVE Diagram

#

Description

Price

1

HOUSING, CHAIN

(844-47541-00-00)

Unavailable

2

O-RING (437)

93210-24235-00

$7.49

3

JOURNAL 1

(841-47571-00-00)

Unavailable

4

OIL SEAL, SD-TYPE

93102-40080-00

Unavailable

5

CIRCLIP, R-TYPE

93420-55028-00

Unavailable

6

BEARING

93306-90702-00

Unavailable

7

SPACER

90560-35050-00

Unavailable

8

COLLAR

90387-35206-00

Unavailable

9

WASHER, PLATE(1YW)

90201-352L0-00

Unavailable

10

SPROCKET, CHN DRVN

(812-47548-40-00)

Unavailable

10

SPROCKET, CHN DRVN

(812-47548-50-00)

Unavailable

10

SPROCKET, CHN DRVN

(812-47548-60-00)

Unavailable

11

WASHER, LOCK

90215-24029-00

Unavailable

12

BOLT

90109-24203-00

Unavailable

13

CHAIN

94510-40066-00

Unavailable

13

CHAIN

(94510-40068-00)

Unavailable

14

JOINT CHAIN

(94610-40001-00)

Unavailable

15

RING, HOUSING

(806-47558-00-00)

Unavailable

16

CAP, HOUSING

(821-47543-00-00)

Unavailable

17

GASKET

821-47544-00-00

Unavailable

18

PLATE

(821-47591-00-00)

Unavailable

19

SCREW

90143-05004-00

Unavailable

20

WASHER, SEAL

90210-05005-00

Unavailable

21

BOLT(6TC)

97027-08070-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

STAY 1

(841-47565-00-00)

Unavailable

25

STAY 2

(841-47566-00-00)

Unavailable

26

BOLT

97013-08035-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

NUT(6L2)

95333-08600-00

Unavailable

29

CAP 2

(861-47559-00-00)

Unavailable

30

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

31

OIL SEAL (22X32X5-818)

93102-22087-00

Unavailable

32

O-RING

93211-13109-00

Unavailable

33

HOUSING, SEC SHAFT

(818-47561-00-00)

Unavailable

34

BOLT (663)

97013-08060-00

Unavailable

35

WASHER (821)

90210-08002-00

Unavailable

36

BOLT(8X2)

90101-08344-00

Unavailable

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

BRG,R-B 6304 52MM 144G NT

93306-30407-00

Unavailable

39

OIL SEAL (30X47X7-810)

93102-30083-00

Unavailable

40

HOUSING, SEC SHAFT

810-47562-00-00

Unavailable

41

PIN, DOWEL(4SS)

93604-18251-00

Unavailable
