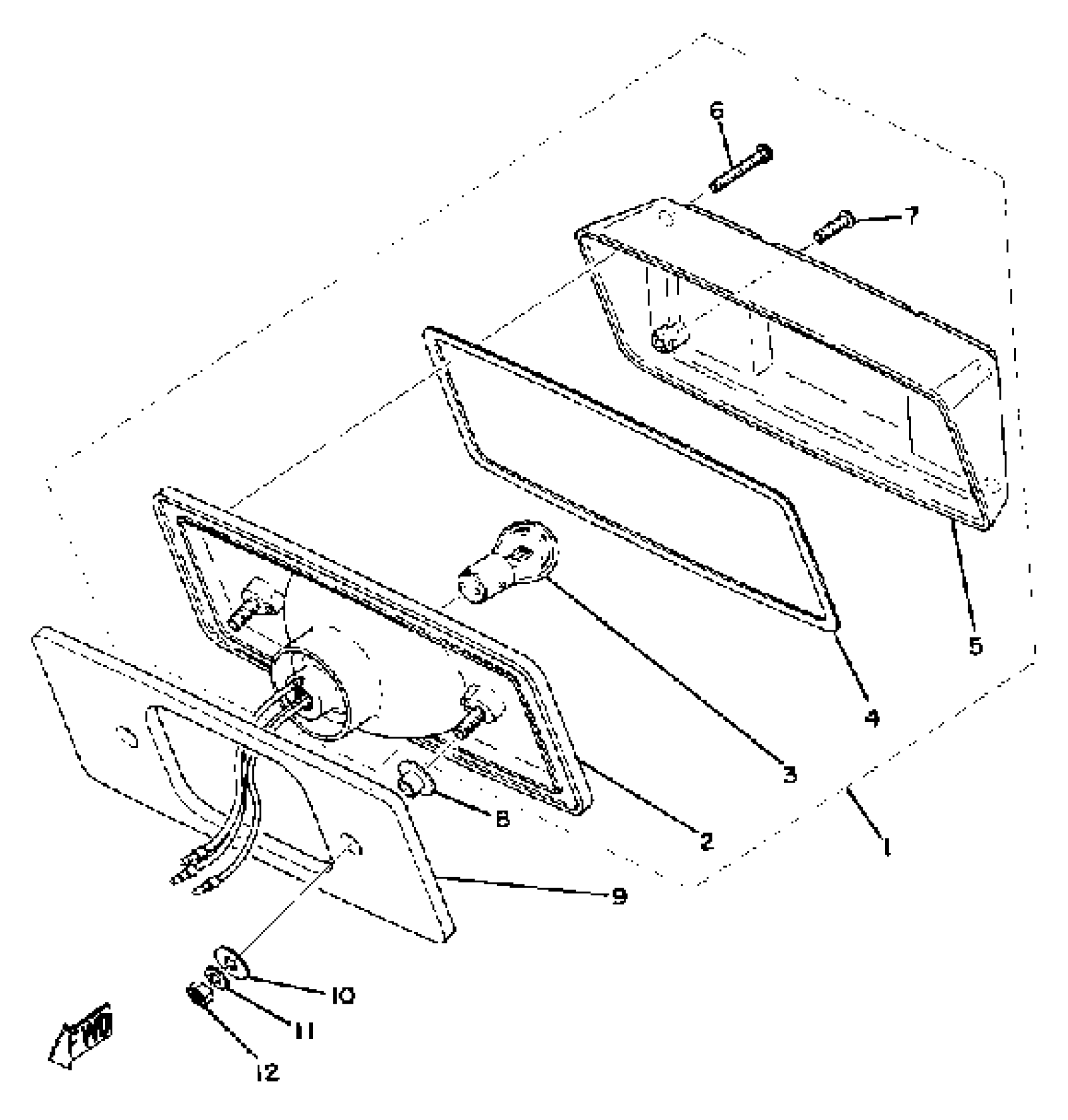

Yamaha GS300 1976 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

853-84710-00-00

Unavailable

2

TAILLIGHT UNIT ASSEMBLY

853-84710-00-00

Unavailable

3

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

4

SEAL

3TJ-14457-00-00

Unavailable

5

. LENS, TAILLIGHT

821-84721-00-00

Unavailable

6

SCREW, PAN

98507-04030-00

$1.64

7

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

8

COLLAR (838-84757-00)

90387-06024-00

$8.49

9

DAMPER

878-84753-00-00

Unavailable

10

WASHER, PLATE 8221447500

90201-06057-00

$3.52

11

WASHER, SPRING

92995-06100-00

$2.95

12

NUT, HEXAGON

95380-06600-00

$4.11
