1976 Yamaha GS300 Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

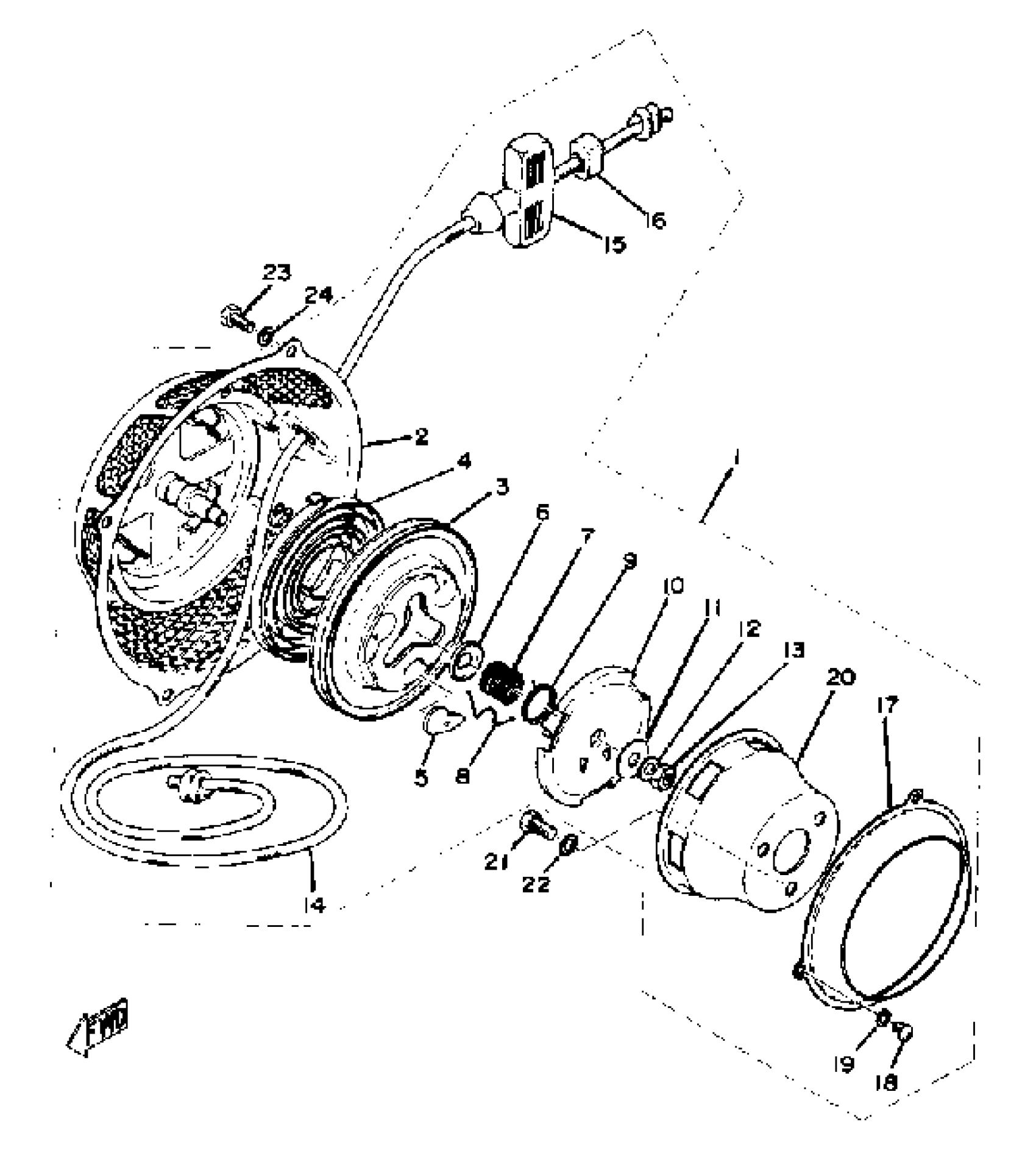

1976 Yamaha GS300 Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

(860-15710-00-00)

1
Out of stock

2

CASE, STARTER

(860-15711-00-00)

1
Out of stock

3

. DRUM, SHEAVE

812-15714-00-00

1
Out of stock

4

. SPRING, STARTER

802-15713-00-00

1
Out of stock

5

. PAWL, DRIVE

812-15741-00-00

1
Out of stock

6

. WASHER, THRUST (802-15719-00)

626-15719-00-00

1
Out of stock

7

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

8

SPRING,RETURN

812-15784-00-00

—
Out of stock

9

. SPRING, RETURN

811-15734-00-00

1
Out of stock

10

. PLATE, DRIVE

812-15716-00-00

1
Out of stock

11

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

. NUT

95380-08700-00

1

$3.07

In stock

14

. ROPE, STARTER

812-15751-00-00

1
Out of stock

15

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

16

. CONNECTOR 1

619-15756-00-00

1
Out of stock

17

COVER, SHEAVE

(812-15782-00-00)

1
Out of stock

18

SCREW,PANHEAD (EG9)

98580-05006-00

—
Out of stock

19

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

20

PULLEY, STARTER

(812-15723-00-00)

1
Out of stock

21

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

23

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

24

WASHER, SPRING

92907-06100-00

—
Out of stock
