1976 Yamaha GS300 OIL Pump Diagram

← All diagrams

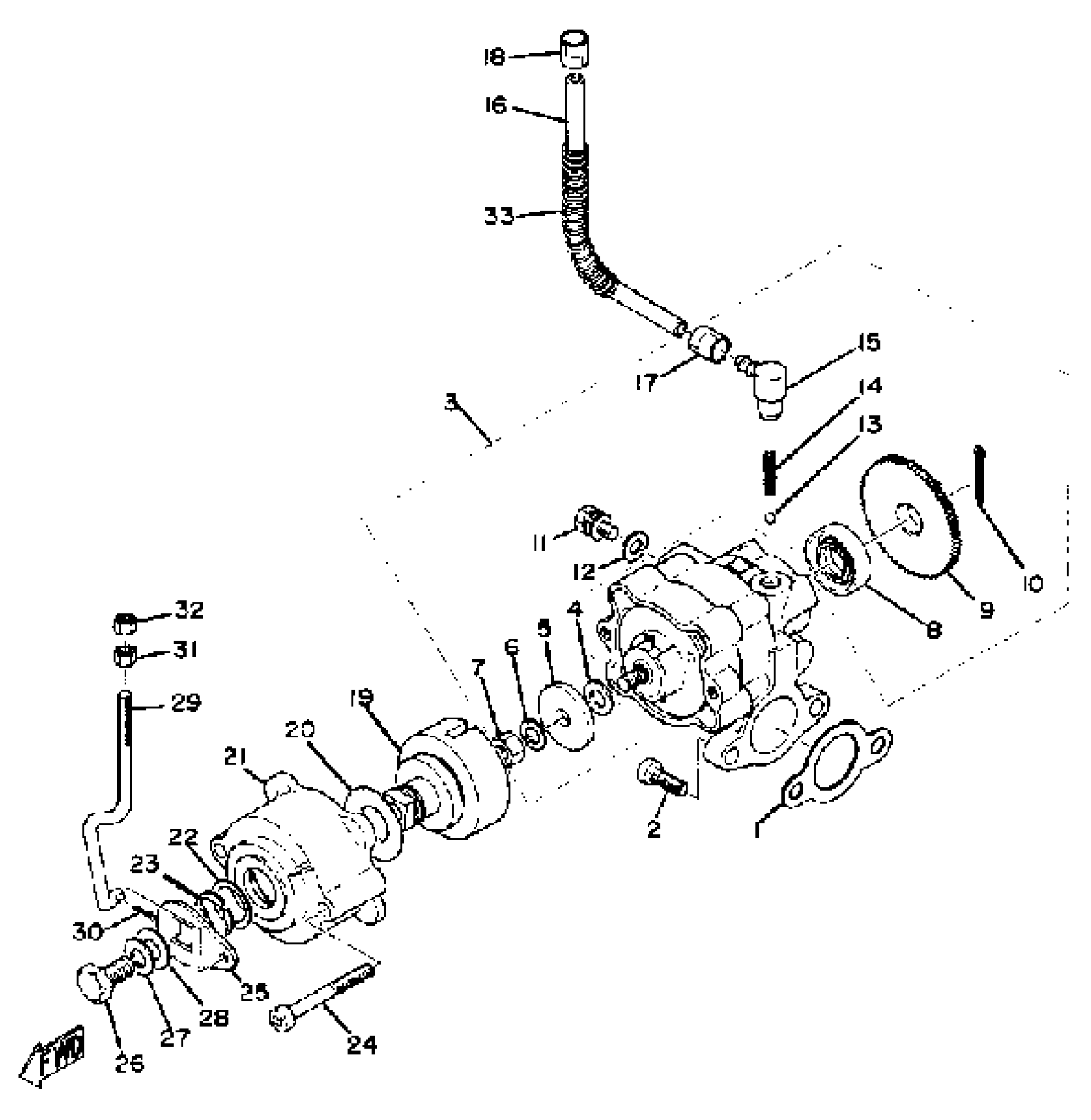

Find the part on the OIL Pump diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha GS300 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

OIL PUMP ASSEMBLY

(898-13101-00-00)

1
Out of stock

4

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

4

SHIM, PLUNGER

(137-13137-00-30)

1
Out of stock

5

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

9

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

10

. PIN, COTTER

91401-12018-00

1
Out of stock

11

BOLT

(90109-04178-00)

1
Out of stock

12

GASKET 137131870000

90430-04004-00

1
Out of stock

13

BALL

93505-32002-00

1

$2.22

In stock

14

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

15

NOZZLE

353-13552-01-00

—
Out of stock

16

HOSE (L700)

90445-05M07-00

1
Out of stock

17

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

18

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

19

SHAFT, PUMP CONTROL

860-13153-00-00

1
Out of stock

20

SEAL, GREASE

860-13119-00-00

1
Out of stock

21

COVER, AJST PULLEY

(812-13146-00-00)

1
Out of stock

22

SHIM

(812-13147-00-00)

1
Out of stock

23

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

24

SCREW, PAN

98507-04030-00

1

$1.51

In stock

25

LEVER, PUMP CONTROL

(812-13156-00-00)

1
Out of stock

26

BOLT (661)

97013-06012-00

—

$4.71

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

ROD, PUMP CONTROL

839-13157-01-00

1
Out of stock

30

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

31

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

32

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

1
Out of stock

33

SPRING, COMPRESSION

(90501-04019-00)

1
Out of stock
