1976 Yamaha GS300 Crank-Piston Diagram

← All diagrams

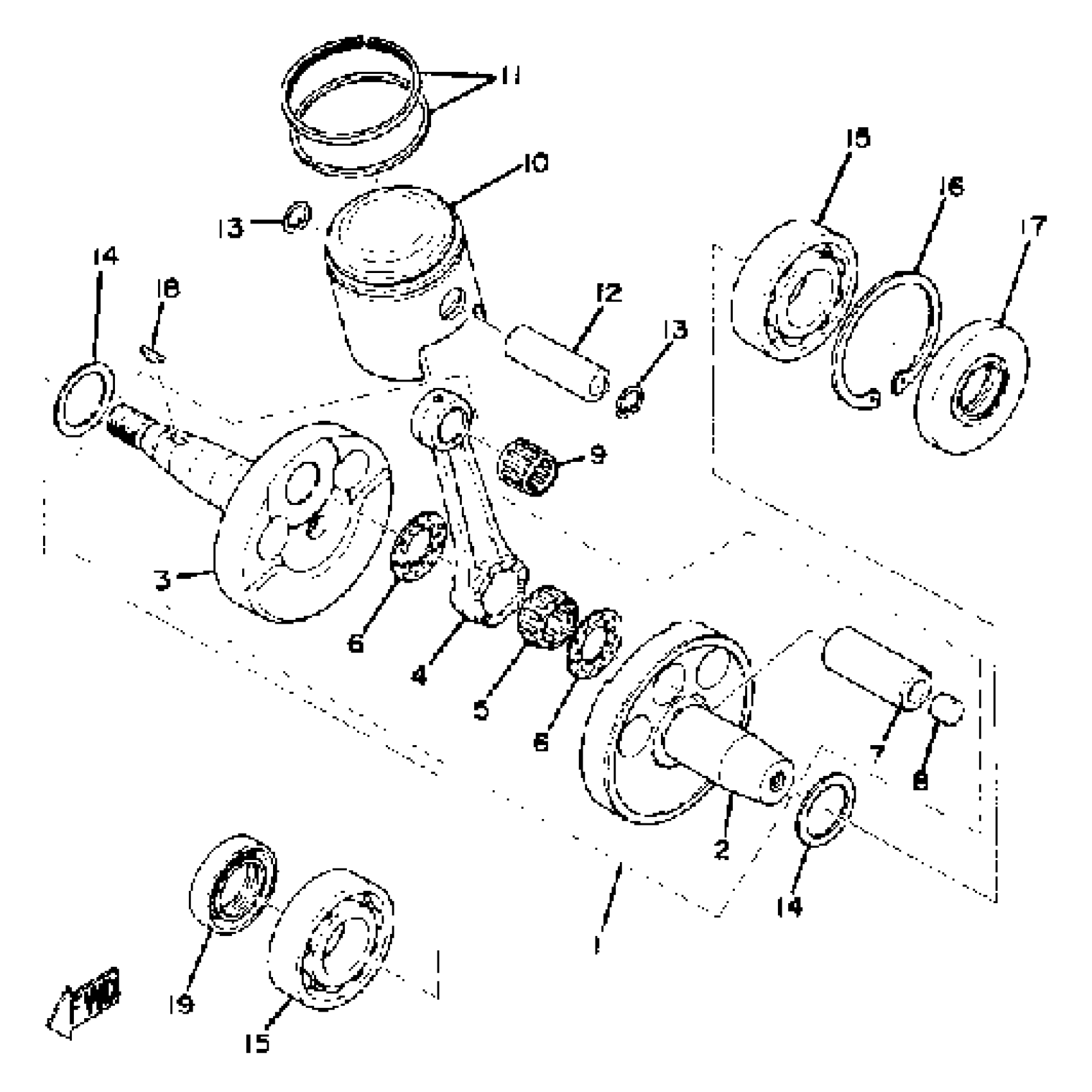

Find the part on the Crank-Piston diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha GS300 Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(853-11400-00-00)

1
Out of stock

2

CRANK 1

(853-11412-01-00)

1
Out of stock

3

CRANK 2

(853-11422-00-00)

1
Out of stock

4

. ROD, CONNECTING

839-11651-00-00

1
Out of stock

5

BEARING

93310-424E8-00

1

$19.49

In stock

6

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

7

PIN, CRANK 1

(822-11681-00-00)

1
Out of stock

8

BUSH, CRANK PIN

(822-11682-00-00)

1
Out of stock

9

1

$32.87

In stock

10

PISTON STD

839-11631-00-96

1
Out of stock

10

PISTON 1 O/S 0.25

839-11635-00-00

1
Out of stock

10

PISTON 2 O/S 0.50

839-11636-00-00

1
Out of stock

10

PISTON 3 O/S 0.75

(839-11637-00-00)

1
Out of stock

10

PISTON 4 O/S 1.00

(839-11638-00-00)

1
Out of stock

11

PISTON RINGSET STD

839-11610-00-00

1
Out of stock

11

PISTON RINGSET 1ST

839-11610-10-00

1
Out of stock

11

PISTON RINGSET 2ND

839-11610-20-00

1
Out of stock

11

PISTON RINGSET 3RD

(839-11610-30-00)

1
Out of stock

11

PISTON RINGSET 4TH

839-11610-40-00

1
Out of stock

12

PIN, PISTON

214-11633-00-00

—

$27.84

In stock

13

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

14

SHIM, CRANK 1

(812-11561-00-03)

1
Out of stock

15

BEARING(3KW)

93306-30630-00

—

$64.14

In stock

16

CIRCLIP, R-TYPE

(93420-72023-00)

1
Out of stock

17

OIL SEAL, SD-TYPE

(93102-30111-00)

1
Out of stock

18

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

19

OIL SEAL, SD-TYPE

93102-30112-00

1
Out of stock
