1976 Yamaha GS300 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

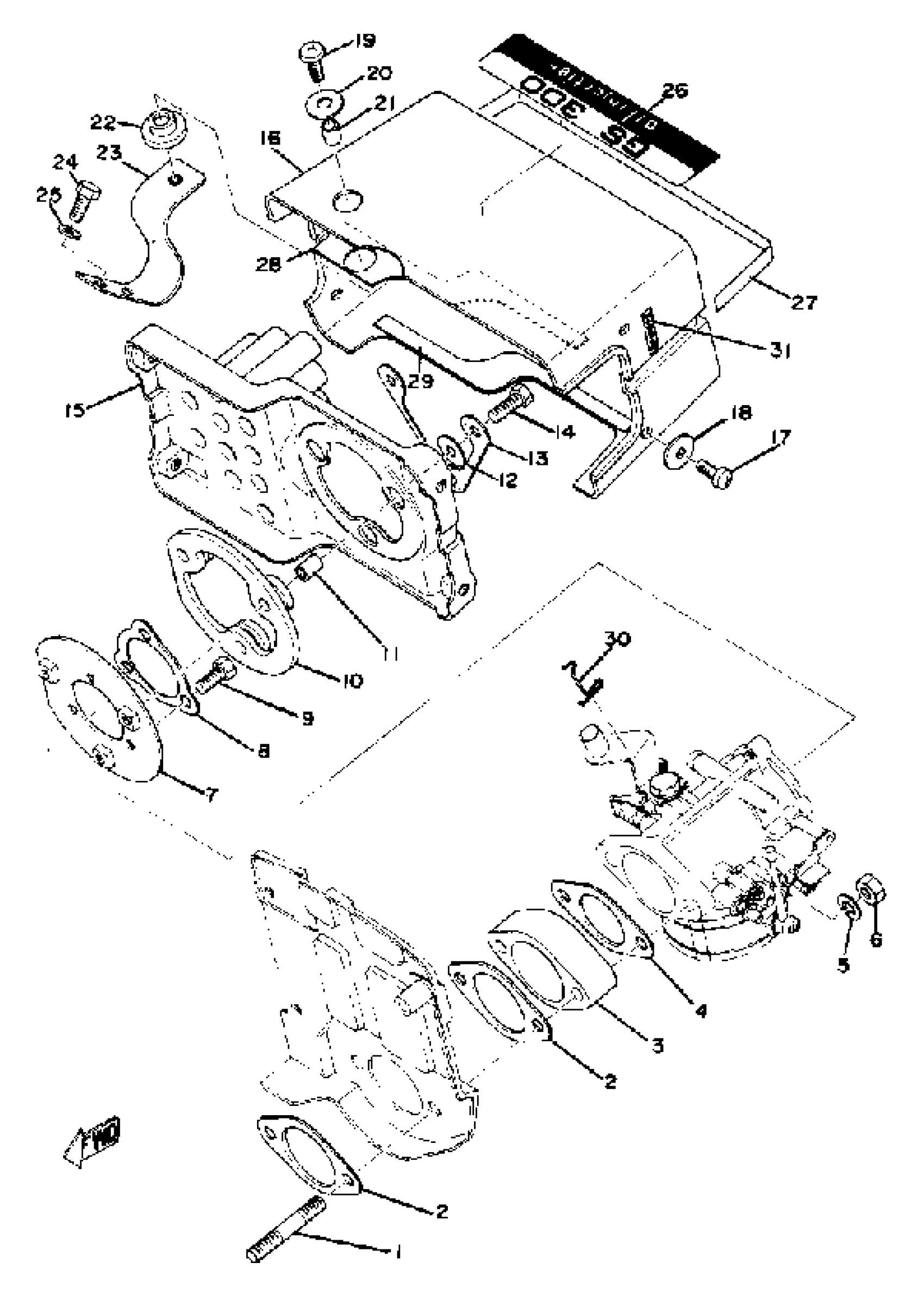

1976 Yamaha GS300 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, STUD

90116-08057-00

1
Out of stock

2

GASKET, MANIFOLD

839-13556-09-00

1
Out of stock

3

MANIFOLD, INTAKE

853-13555-00-00

1
Out of stock

4

GASKET, MANIFOLD

810-13556-09-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

. NUT

95380-08700-00

1

$3.07

In stock

7

PLATE

(867-14477-00-00)

1
Out of stock

8

WASHER

(853-14475-00-00)

1
Out of stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

10

GROMMET

(864-14435-00-00)

1
Out of stock

11

COLLAR

(90387-06244-00)

1
Out of stock

12

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

13

WASHER, LOCK

(864-14599-00-00)

1
Out of stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

SILENCER, INTAKE 1

(867-14431-00-00)

1
Out of stock

16

SILENCER, INTAKE 2

(867-14441-00-00)

1
Out of stock

17

SCREW, BINDING

98907-06016-00

—

$7.14

In stock

18

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

19

SCREW, BIND

(91906-06018-00)

1
Out of stock

20

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

21

COLLAR

(90387-06244-00)

1
Out of stock

22

GROMMET

90480-15060-00

1
Out of stock

23

STAY 1

(867-14493-00-00)

1
Out of stock

24

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

25

WASHER, SPRING

92907-06100-00

—
Out of stock

26

EMBLEM 1

(898-77451-00-00)

1
Out of stock

27

EMBLEM 2

853-77452-00-00

1
Out of stock

28

SEAL

(864-14457-00-00)

1
Out of stock

29

SEAL

(864-14467-00-00)

1
Out of stock

30

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

31

INDICATOR, CHOKE

(847-77455-00-00)

1
Out of stock
