1976 Yamaha GS300 Carburetor Diagram

← All diagrams

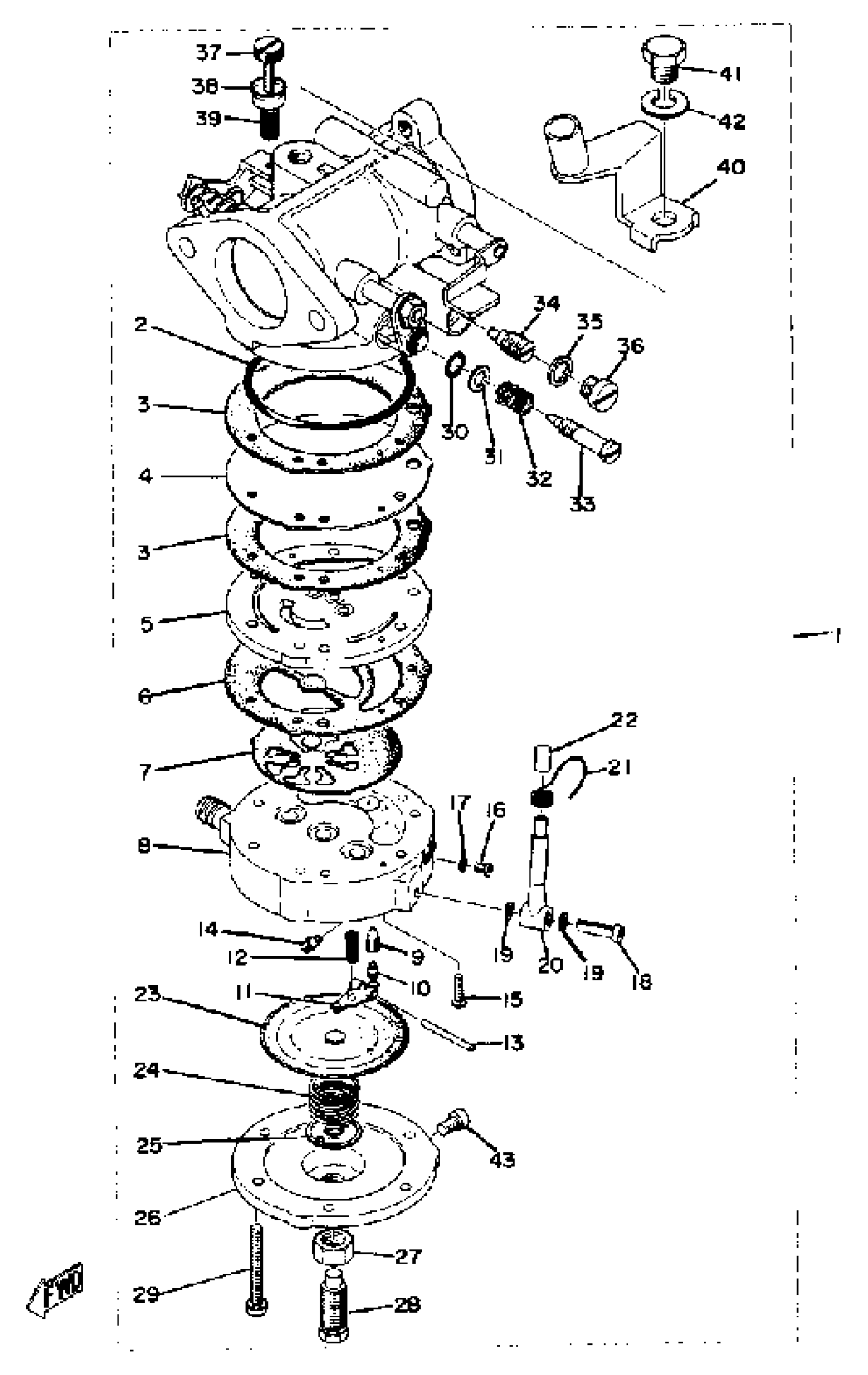

Find the part on the Carburetor diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha GS300 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(867-14501-00-00)

1
Out of stock

2

. O-RING

806-14562-00-00

1
Out of stock

3

GASKET

838-14536-09-00

1

$11.29

In stock

4

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

5

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

6

GASKET

834-14553-09-00

1
Out of stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

BODY, PUMP 2

(853-14543-01-00)

1
Out of stock

9

VALVE

838-14546-00-00

1

$39.18

In stock

10

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

11

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

12

. SPRING

810-14556-00-00

1
Out of stock

13

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

14

JET #65

(853-14515-65-00)

1
Out of stock

15

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

16

SCREW

(806-14567-01-00)

1
Out of stock

17

. WASHER

810-14597-00-00

1
Out of stock

18

. SCREW

8A1-14592-00-00

1
Out of stock

19

. WASHER

806-14559-00-00

1
Out of stock

20

PIPE, AIRVENT

(853-14197-00-00)

1
Out of stock

21

CLIP

(824-14159-00-00)

1
Out of stock

22

. CAP, BLIND

853-24462-00-00

1
Out of stock

23

DIAPHRAGM

810-14545-00-00

—
Out of stock

24

SPRING

(810-14555-00-00)

1
Out of stock

25

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

26

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

27

. NUT

95380-08700-00

1

$3.07

In stock

28

. SCREW, STOP

824-14565-00-00

1
Out of stock

29

SCREW

(824-14567-00-00)

1
Out of stock

30

. O-RING

824-14563-00-00

1
Out of stock

31

. WASHER

838-14596-00-00

1
Out of stock

32

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

33

SCREW, ADJUST

(853-14522-00-00)

1
Out of stock

34

JET, MAIN #115

(845-14516-15-00)

1
Out of stock

34

. JET, MAIN #120

845-14516-20-00

1
Out of stock

34

. JET, MAIN #125 (125)

845-14516-25-00

1
Out of stock

34

. JET, MAIN #130 (130)

845-14516-30-00

1
Out of stock

35

WASHER

(810-14558-00-00)

1
Out of stock

36

SCREW

(845-14567-00-00)

1
Out of stock

37

SCREW, STOP

(867-14523-00-00)

1
Out of stock

38

COLLAR

(867-14578-00-00)

1
Out of stock

39

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

40

BRACKET, THROTTLE

(867-14571-00-00)

1
Out of stock

41

BOLT(62E)

97013-08012-00

—

$2.48

In stock

42

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

43

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
