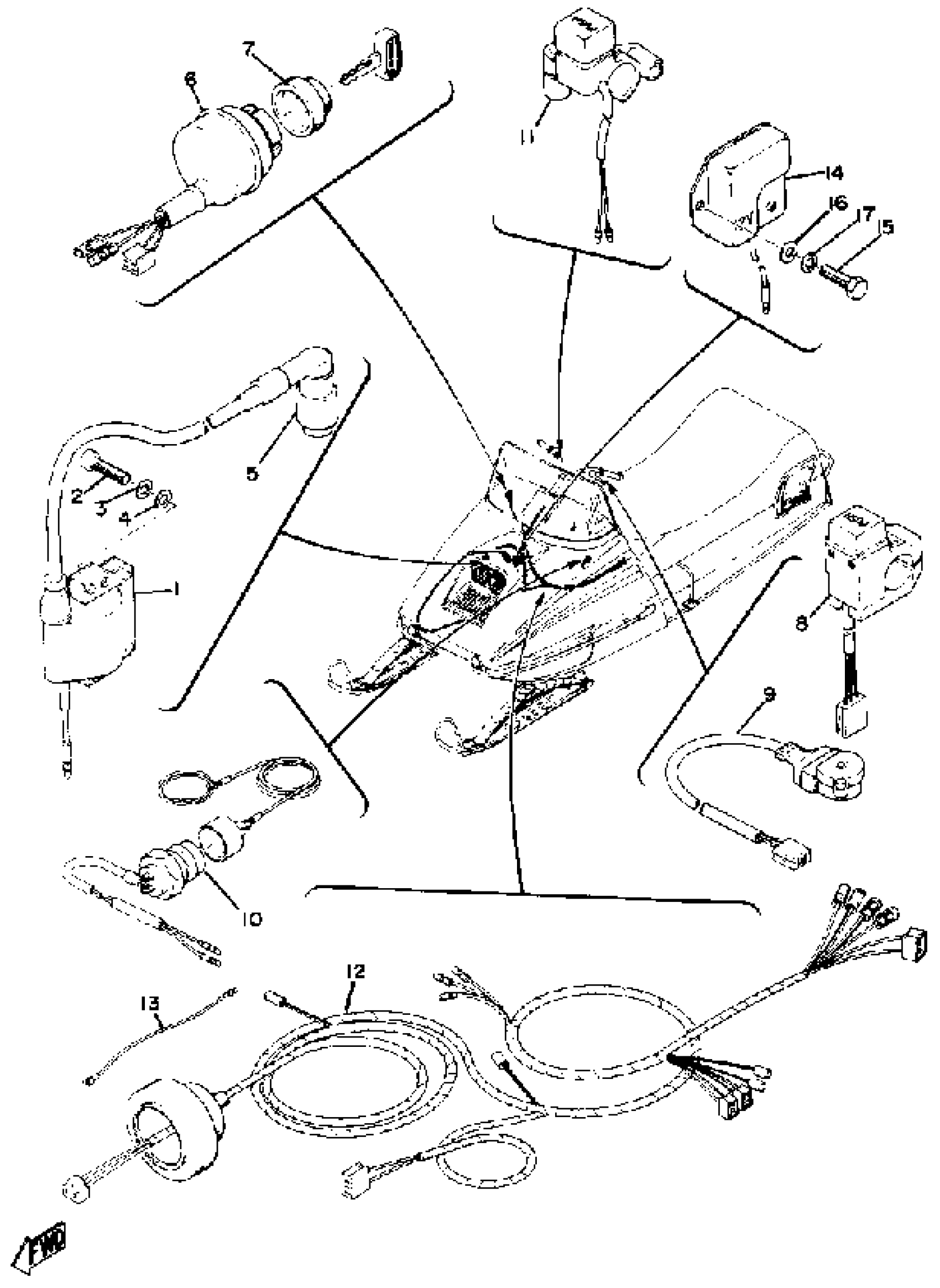

Yamaha GS300 1976 ELECTRICAL Diagram

#

Description
Price

1

IGNITION COIL ASSY

355-82310-40-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, SPRING

92907-06100-00

$4.25

4

WASHER(6TA)

92907-06600-00

$2.72

5

PLUG CAP ASSEMBLY

899-82370-20-00

Unavailable

6

UNAVAILABLE IN PRICE BOOK

898-82509-20-00

Unavailable

7

COLLAR, MAIN SWITCH

806-82516-00-00

Unavailable

8

BEAM SWITCH ASSEMBLY

861-83950-01-00

Unavailable

9

STOP SWITCH ASSEMBLY

822-82530-00-00

Unavailable

10

STOP SWITCH ASSEMBLY

8J7-82550-01-00

Unavailable

11

SWITCH, HANDLE 1

883-83976-00-00

Unavailable

12

WIRE HARNESS ASSEMBLY

(898-82590-21-00)

Unavailable

13

WIRE, EARTH LEAD

(838-82519-00-00)

Unavailable

14

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

15

BOLT (661)

97013-06012-00

$5.60

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable
