Partiron

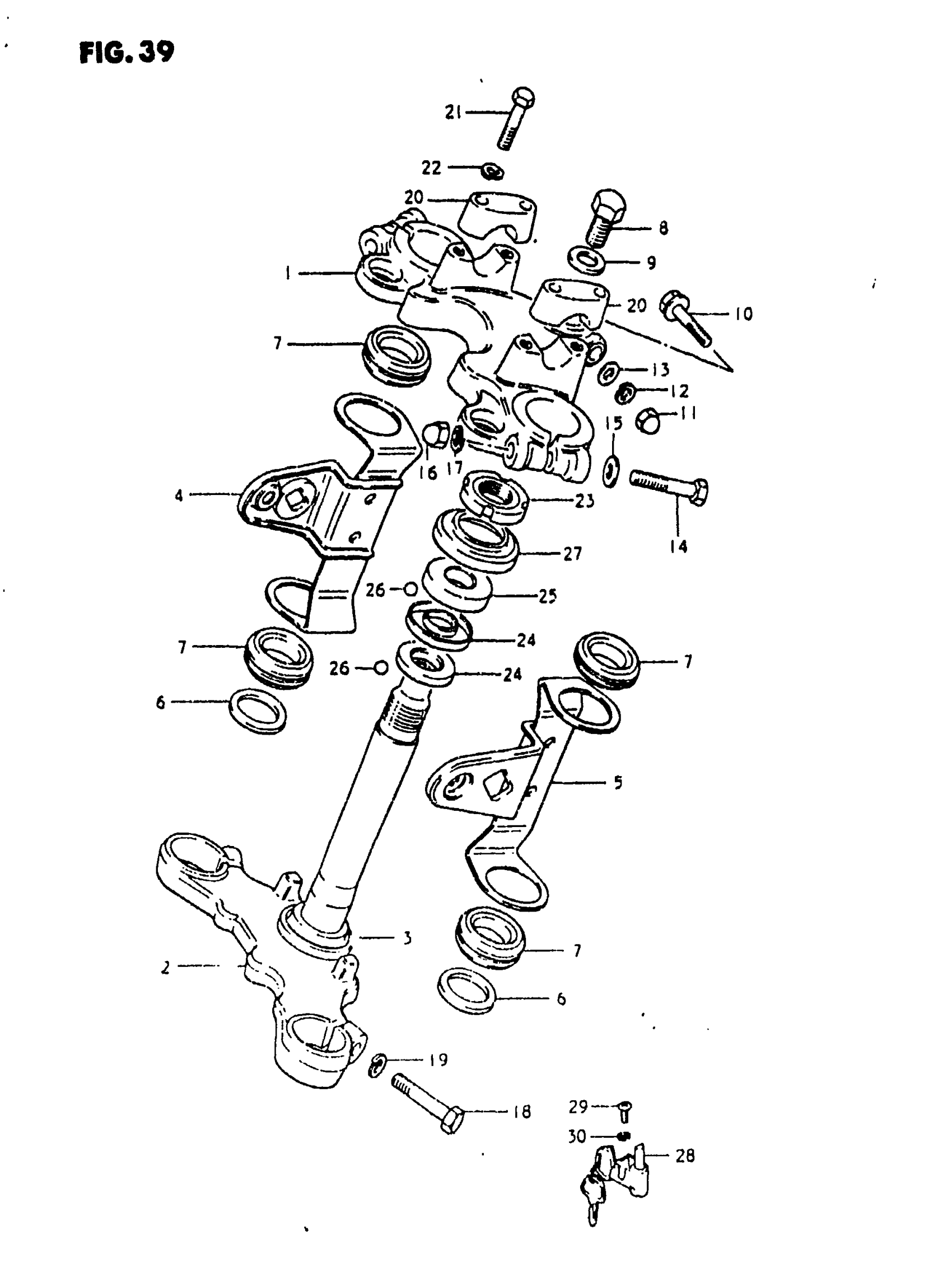

Suzuki GS250T (1981) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING

51311-44100-291

Unavailable

2

STEERING, STEM | Includes Item(s) 3 This part replaces 51410-11400.

51410-11430

Unavailable

3

RACE, STEERING OUTER LOWER

51621-33001

$16.25

4

BRACKET, HEAD LAMP RH

51530-11410-291

Unavailable

5

BRACKET, HEAD LAMP LH

51540-11410-291

Unavailable

6

SEAT

51555-11400

Unavailable

7

CUSHION

51553-44000

Unavailable

8

BOLT

09104-12013

$4.11

9

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT | MODEL T This part replaces 08310-12088.

08310-00087

$2.13

11

NUT | MODEL X This part replaces 08313-11085.

08313-1008B

$2.80

12

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

BOLT | MODEL T This part replaces 01107-10558.

01500-1055A

$3.55

14

BOLT | MODEL X This part replaces 01517-10558.

01550-10557

$3.91

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

NUT | MODEL T This part replaces 08310-11105.

08310-0010A

$1.84

16

NUT | MODEL X

09145-10002

Unavailable

17

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

18

BOLT This part replaces 01107-10408.

01500-10407

$3.55

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

HOLDER, HANDLE

56211-27200-291

$17.90

21

BOLT

01204-08357

$2.09

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

NUT, STEERING STEM

51631-28000

$17.37

24

RACE, STEERING INNER

51611-33002

$13.81

25

RACE, STEERING OUTER UPPER

51621-30001

Unavailable

26

STEEL BALL

06111-08003

$1.49

27

DUST SEAL

51643-30000

Unavailable

28

LOCK ASSY, STEERING This part replaces 51900-33810.

51900-33811

Unavailable

29

SCREW This part replaces 02112-05258.

02112-05257

$1.49

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
