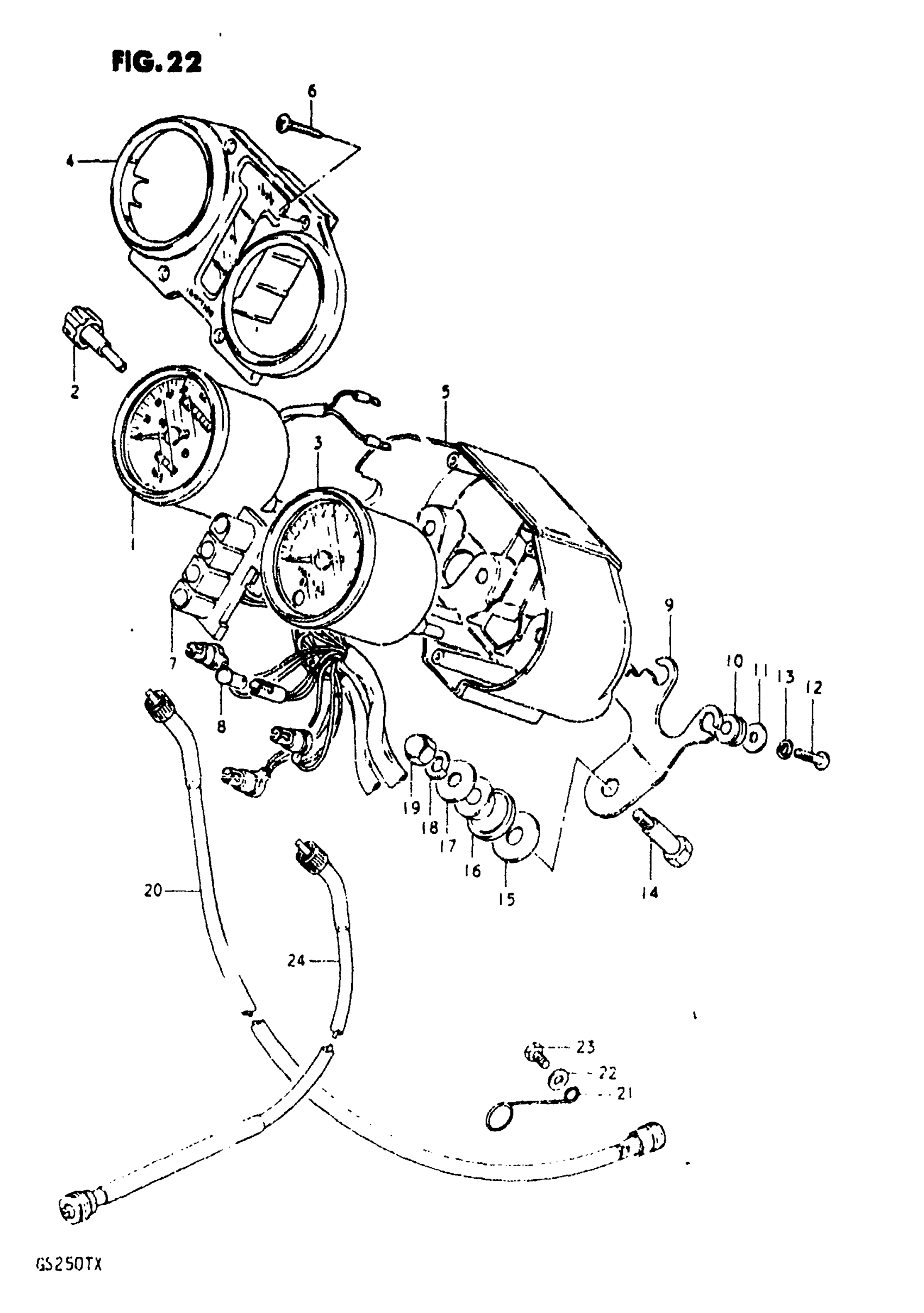

Suzuki GS250T (1981) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MILE & KILO SCALE; Includes Item(s) 2 This part replaces 34110-44110.

34110-44130

Unavailable

2

KNOB

34124-44100

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 34210-11410.

34210-44121

Unavailable

4

HOOD, METER

34151-11400

Unavailable

5

CASE, METER

34152-44100

Unavailable

6

SCREW

03121-04208

Unavailable

7

SOCKET | MODEL T

34173-11400

Unavailable

7

SOCKET | MODEL X

34173-11401

Unavailable

8

BULB (12V, 3.4W) | MODEL T

09471-12001

$1.65

8

BULB (12V, 3.4W) | MODEL X

09471-12028

$1.99

9

NO DESCRIPTION AVAILABLE This part replaces 34950-44100.

34950-37352

Unavailable

10

CUSHION

34189-44100

Unavailable

11

WASHER (4.5X16X1.2) This part replaces 34181-44100.

09160-04026

$2.05

12

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

BOLT This part replaces 09111-08040.

09111-08031

Unavailable

15

WASHER This part replaces 09160-10028.

09160-10035

$1.78

16

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

17

WASHER This part replaces 09160-08047.

09160-08130

$2.03

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

NUT This part replaces 08313-11088.

08313-10087

$2.28

20

CABLE ASSY,SPEE | MODEL T This part replaces 34910-45111.

34910-45115

$26.55

20

CABLE ASSY,SPEE | MODEL X This part replaces 34910-45112.

34910-45115

$26.55

21

CLAMP

34938-37000

$3.73

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13

23

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

24

CABLE ASSY,TACH This part replaces 34940-44110.

34940-05312

$40.40
