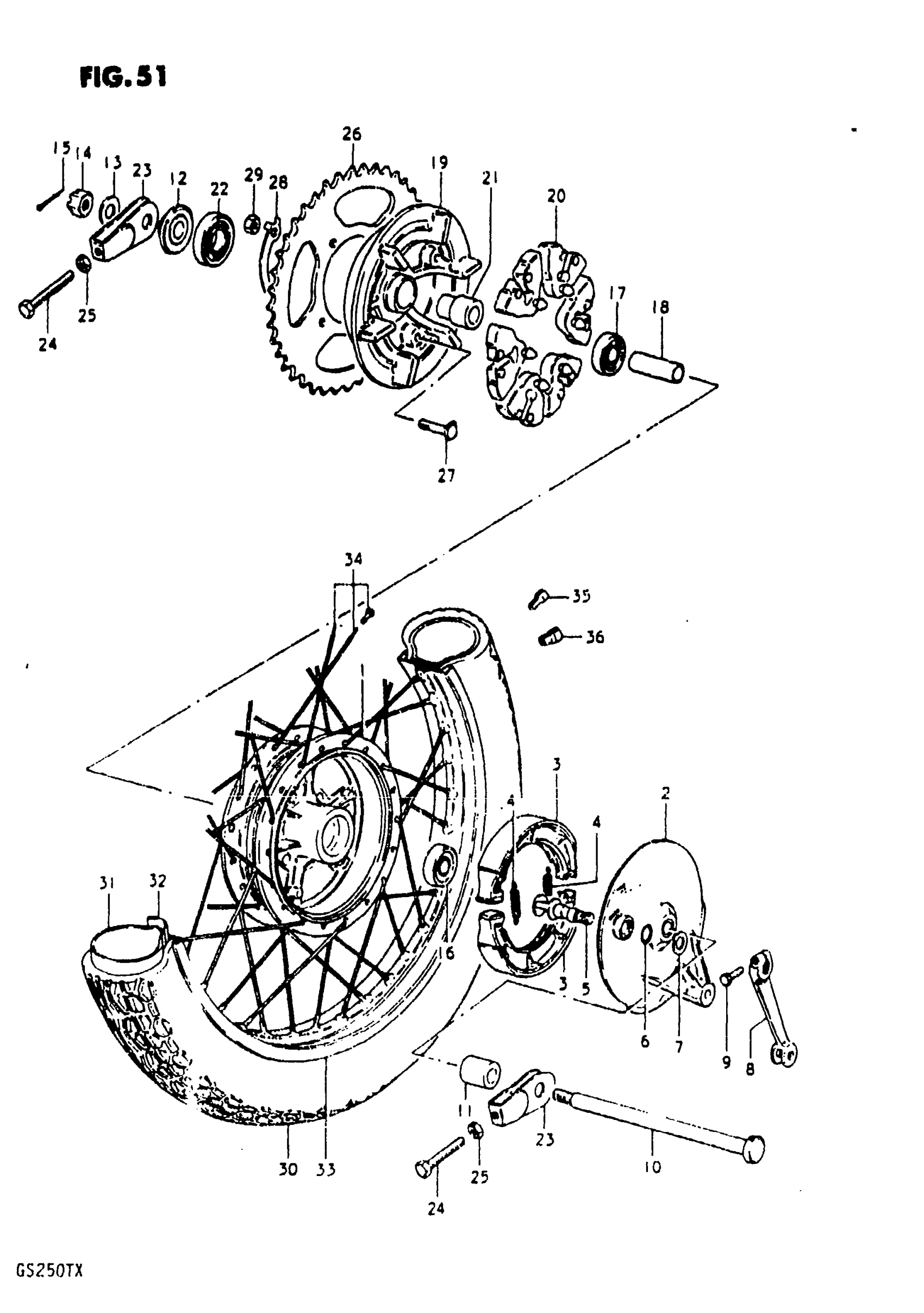

Suzuki GS250T (1981) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR | MODEL T

64110-11310

Unavailable

1

HUB, REAR | MODEL X

64110-11311

Unavailable

2

PANEL, REAR HUB

64210-11310

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

Unavailable

4

SPRING

55420-30000

$4.48

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

LEVER, BRAKE CAM

64451-44001

Unavailable

9

BOLT This part replaces 01107-06258.

01500-06257

$1.97

10

AXLE, REAR This part replaces 64711-48000.

64711-48001

$50.92

11

SPACER, RH (15x26x36.8)

09180-15046

Unavailable

12

SPACER, LH

64750-11400

Unavailable

13

WASHER This part replaces 08322-11148.

08322-01147

$1.91

14

NUT

09141-14001

$4.60

15

PIN This part replaces 04111-30308.

04111-3030A

$1.49

16

BEARING, WHEEL RH This part replaces 08143-63027.

08153-63027

$25.35

17

BEARING, LH

08143-62027

$16.01

18

SPACER (15.3x21.7x58)

09180-15045

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 64611-11300.

64611-11301

Unavailable

20

SHOCK ABSORBER, REAR HUB

64651-11300

$13.62

21

RETAINER, DRUM

64733-39100

Unavailable

22

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

23

ADJUSTER, CHAIN

61410-30003

Unavailable

24

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

25

NUT This part replaces 08310-12088.

08310-00087

$2.13

26

SPROCKET, REAR (NT:47T)

64511-11400

Unavailable

27

BOLT

09105-08001

$2.06

28

WASHER This part replaces 09169-08021.

09169-08014

$3.45

29

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

30

TIRE (3.50-17-4PR) | IRC This part replaces 65100-11415.

65100-11416

Unavailable

30

TIRE (3.50-17-4PR) | IRC

65100-11416

Unavailable

31

TUBE, INNER (3.50-17)

65200-29500

Unavailable

32

PROTECTOR, INNER TUBE This part replaces 55261-01010.

55261-02B40

$6.88

33

RIM, WHEEL (1.85x17)

65311-11405

Unavailable

34

SPOKE SET

65320-11405

Unavailable

35

BALANCER WHEEL (15G) | (0~3) This part replaces 55411-11000.

55411-26G00

$7.73

36

BALANCER WHEEL (30G) | (0~3) This part replaces 55412-11000.

55413-41F00

$7.50
