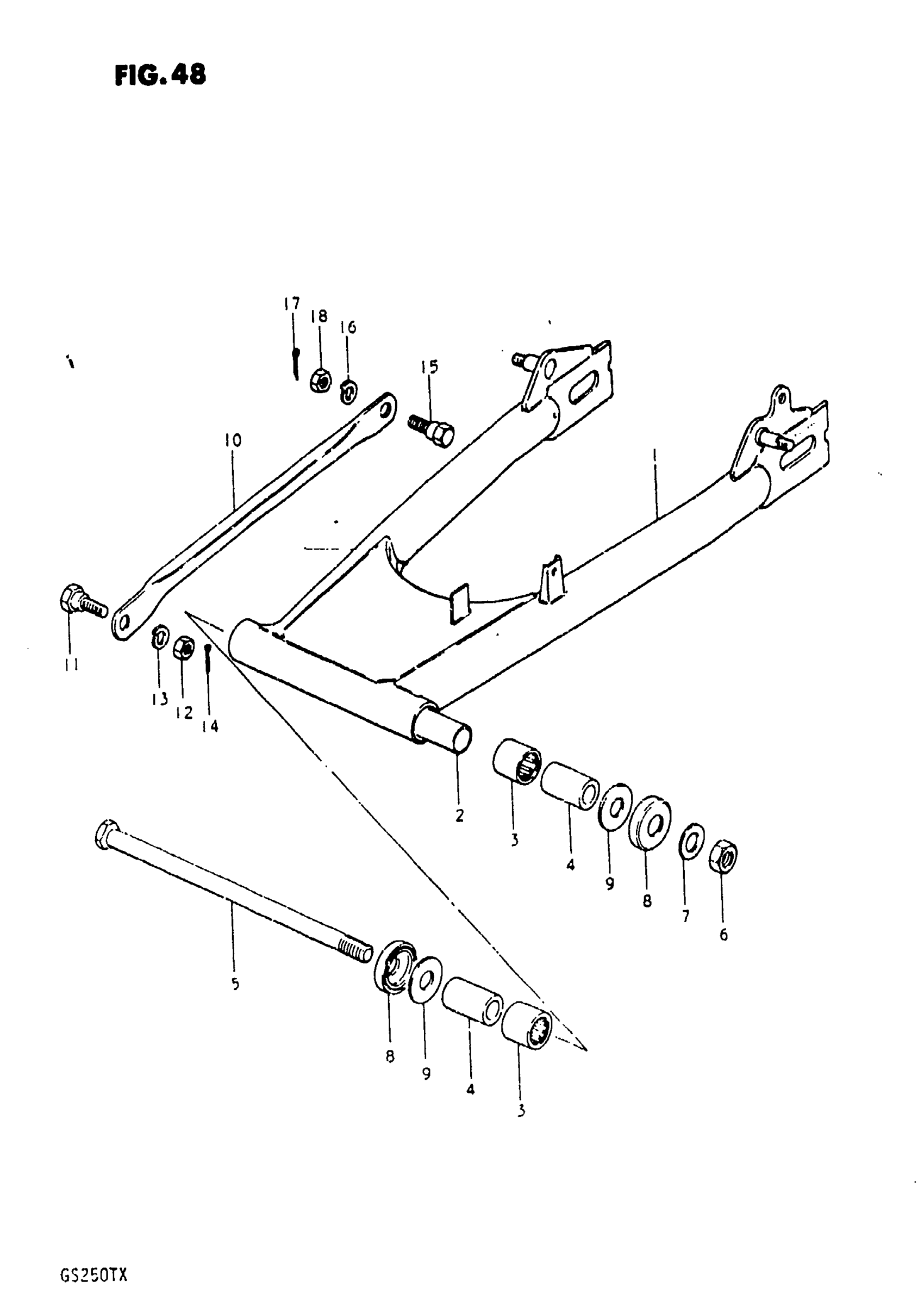

Suzuki GS250T (1981) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 61100-11861-019.

61100-11862-019

Unavailable

2

SPACER

61281-44001

Unavailable

3

BEARING

09263-22017

$22.58

4

SPACER

61251-45001

$17.37

5

SHAFT, PIVOT

61211-33002

Unavailable

6

NUT This part replaces 08319-21148.

08319-2114A

$3.96

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

COVER, DUST SEAL

61262-45002

$7.97

9

WASHER

09160-14020

$2.19

10

TORQUE LINK, REAR(BLACK) This part replaces 64311-44000.

64311-44200-019

Unavailable

11

BOLT, FRONT

09111-10010

Unavailable

12

NUT This part replaces 08310-22108.

08310-00107

$2.19

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

BOLT, REAR

09101-10003

Unavailable

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

NUT This part replaces 08310-11108.

08310-00107

$2.19
