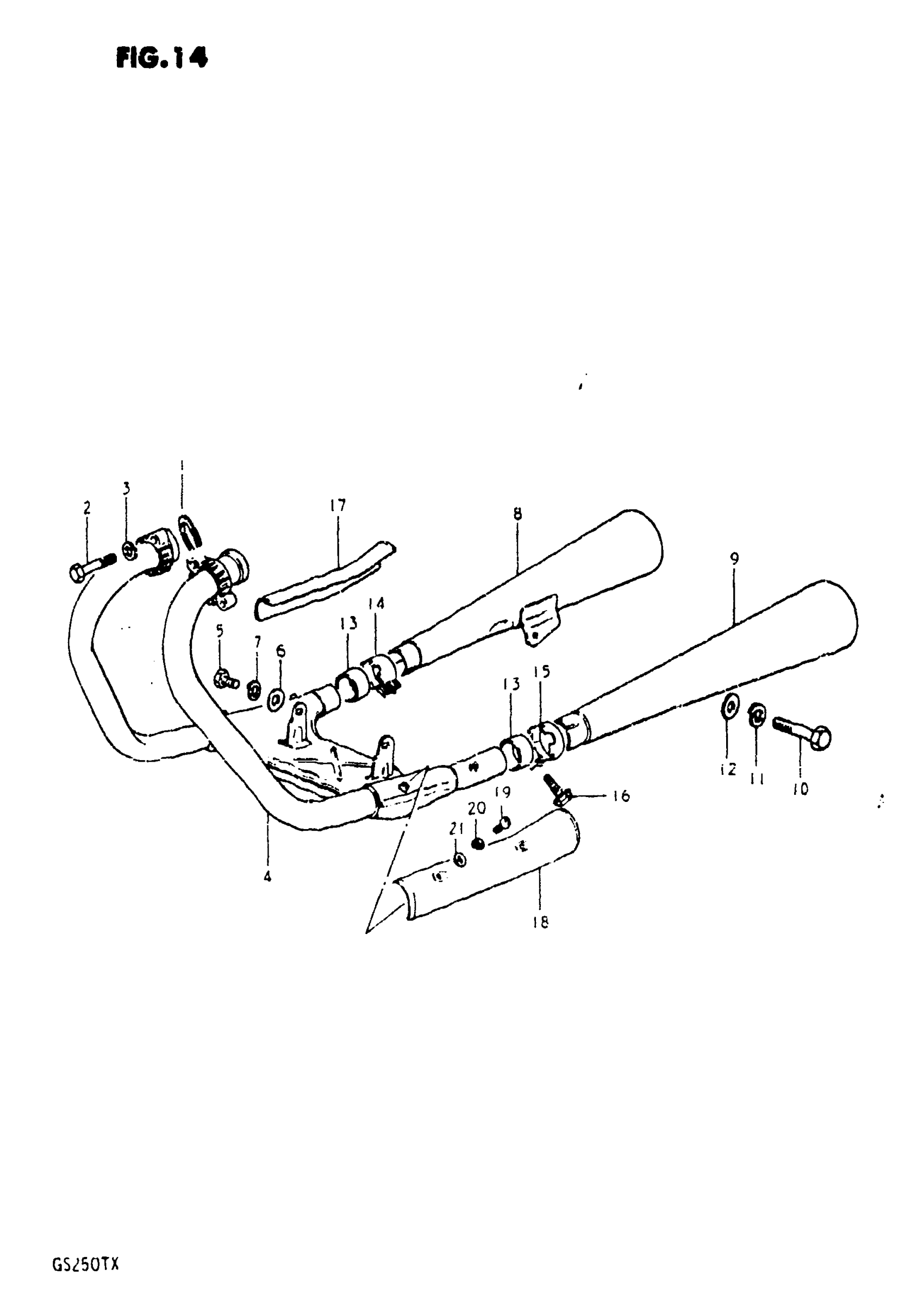

Suzuki GS250T (1981) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST This part replaces 14181-05010.

14181-18C00

$7.22

2

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

NO DESCRIPTION AVAILABLE This part replaces 14100-11400.

14100-11420-H01

Unavailable

5

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER This part replaces 08322-11088.

08322-01087

$2.13

8

NO DESCRIPTION AVAILABLE This part replaces 14310-11400.

14310-11400-H01

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 14340-11400.

14340-11400-H01

Unavailable

10

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

WASHER This part replaces 08322-21108.

08322-01107

$2.15

13

CONNECTOR,MUFLR This part replaces 14771-47010.

14771-47020-H17

Unavailable

14

CLAMP, RH

14459-47000

Unavailable

15

CLAMP, LH

14469-47000

Unavailable

16

BOLT This part replaces 01517-08258.

01550-08257

$2.81

17

NO DESCRIPTION AVAILABLE This part replaces 14781-11400.

14781-11410

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 14791-11400.

14791-11410

Unavailable

19

SCREW This part replaces 02112-05088.

02112-05087

$1.49

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

WASHER This part replaces 08322-21058.

08322-01057

$2.13
