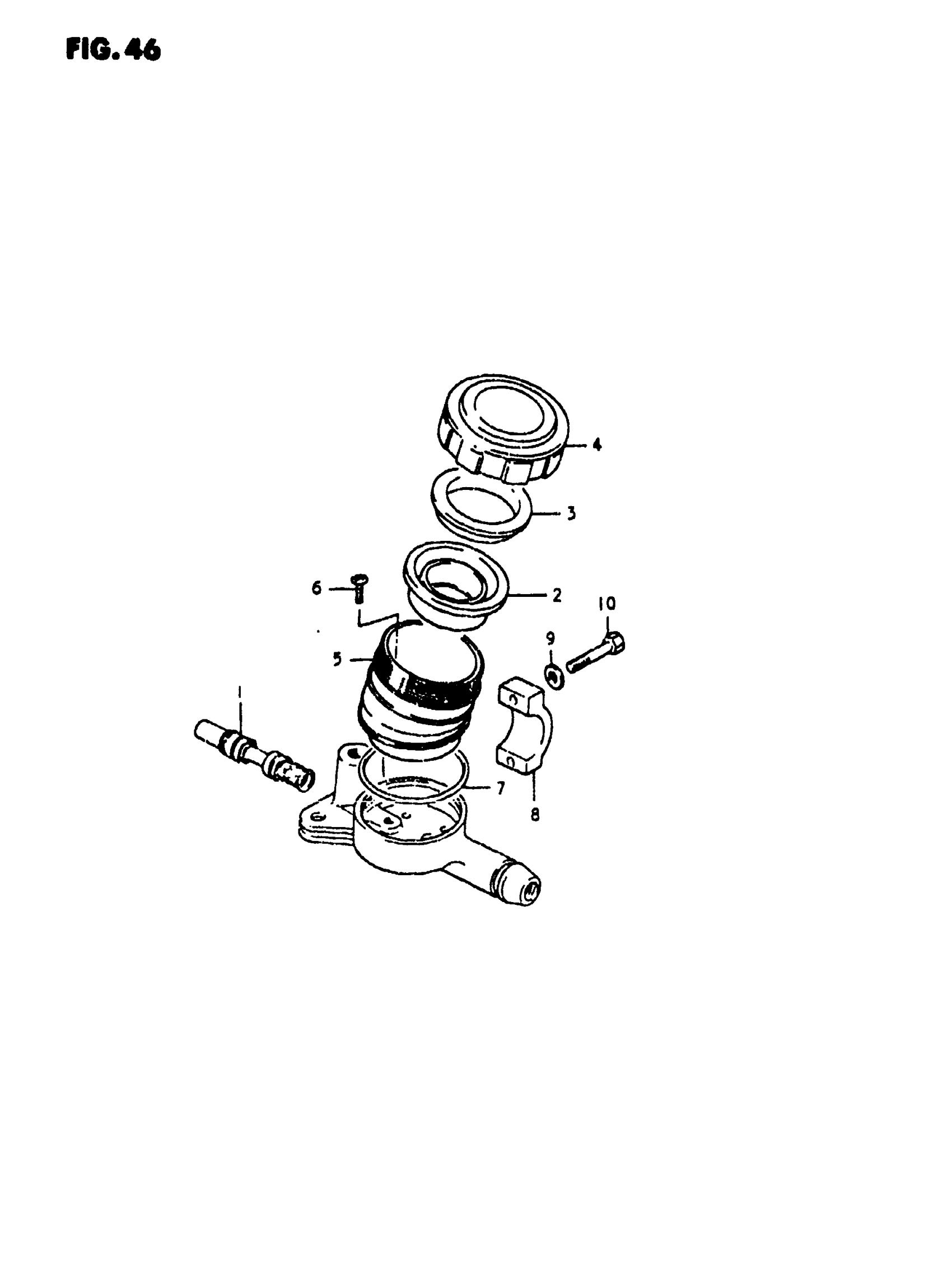

Suzuki GS250T (1981) MASTER CYLINDER Diagram

#

Description
Price

0

CYLINDER ASSY, MASTER | Includes Item(s) 1 - 10

59600-45080

Unavailable

1

PISTON / CUP SET

59600-45821

Unavailable

2

DIAPHRAGM

59667-18441

$10.28

3

PLATE

59668-18441

$4.52

4

CAP This part replaces 59669-33603.

59669-07D00

$31.72

5

RESERVOIR

59687-45050

Unavailable

6

SCREW

59688-33601

Unavailable

7

O RING

59686-33600

Unavailable

8

HOLDER

59671-18441

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

BOLT This part replaces 01107-06258.

01500-06257

$1.97
