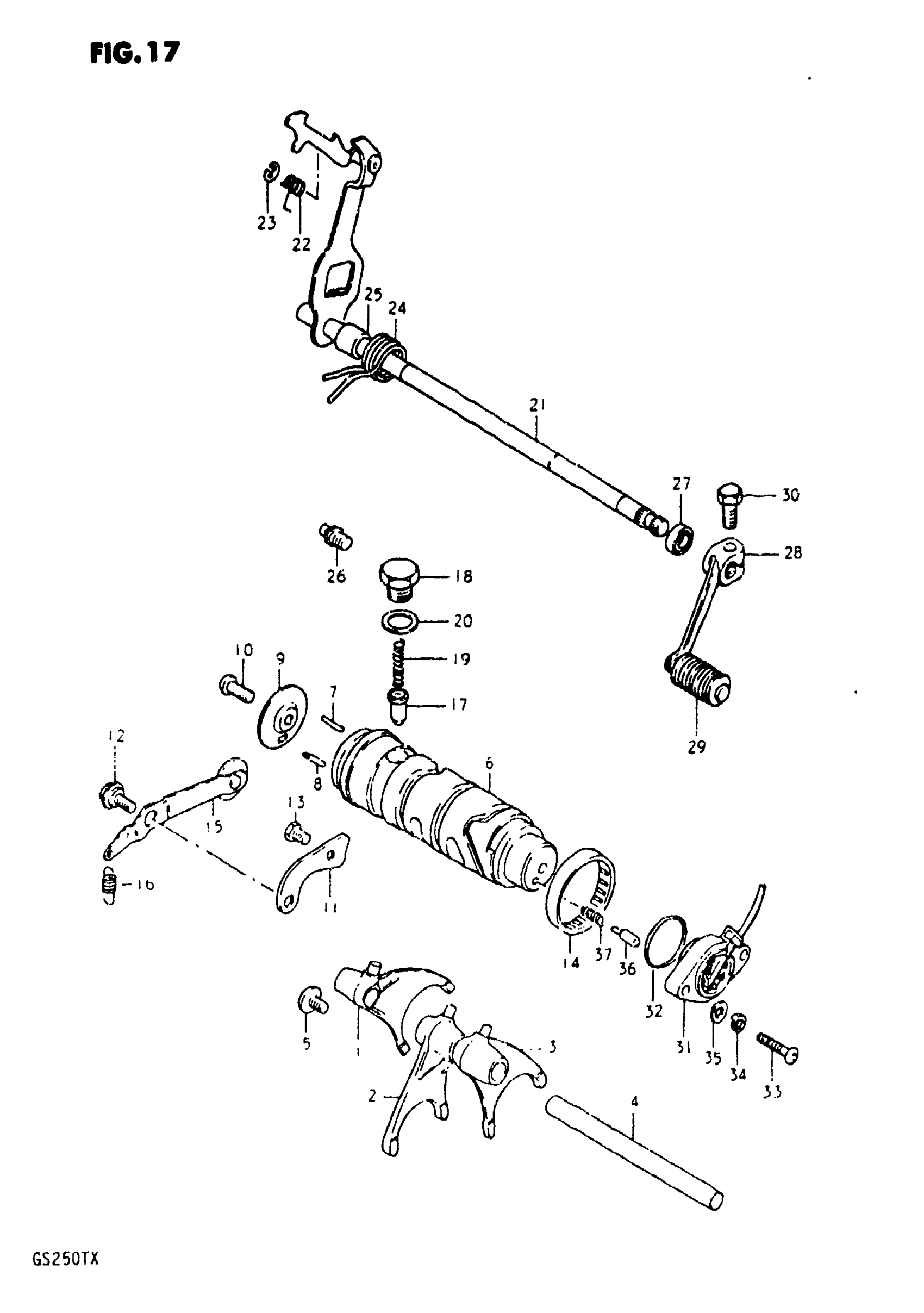

Suzuki GS250T (1981) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO. 1

25211-11400

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-44001

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-11400

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

5

SCREW

02142-06108

$2.45

6

CAM, GEAR SHIFTING This part replaces 25311-47000.

25311-47001

Unavailable

7

PIN

09261-04001

$1.72

8

PIN

09209-04013

Unavailable

9

HOLDER, DRIVE PIN

25322-44000

Unavailable

10

SCREW This part replaces 02112-06168.

02112-06167

$1.49

11

GUIDE, CAM This part replaces 25341-44000.

25341-33300

Unavailable

12

BOLT This part replaces 09111-06019.

09111-06054

$3.70

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

BEARING

09263-40001

$29.53

15

STOPPER, CAM NO. 1

25350-11400

Unavailable

16

SPRING

09443-09007

$2.56

17

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

18

HOLDER, SPRING

25354-30000

$9.17

19

SPRING

09440-06018

Unavailable

20

GASKET

09168-14004

$1.83

21

SHAFT, GEAR SHIFTING

25510-11400

Unavailable

22

SPRING

09448-13008

$3.74

23

E RING This part replaces 08332-11078.

08332-1107A

$1.78

24

SPRING This part replaces 09444-26012.

09444-26013

$3.10

25

SPACER

09180-12068

$3.16

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

28

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 29 This part replaces 25600-11400.

25600-44000

Unavailable

29

COVER This part replaces 25652-49000.

25652-20C00

$5.44

30

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

31

BODY, SWITCH

37720-44600

Unavailable

32

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

33

SCREW This part replaces 02112-05208.

02112-05207

$1.97

34

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

35

WASHER This part replaces 08322-21058.

08322-01057

$2.13

36

CONTACT

09209-05011

$2.20

37

SPRING

09440-04010

$1.54
