1981 Suzuki GS250T Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Suzuki GS250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

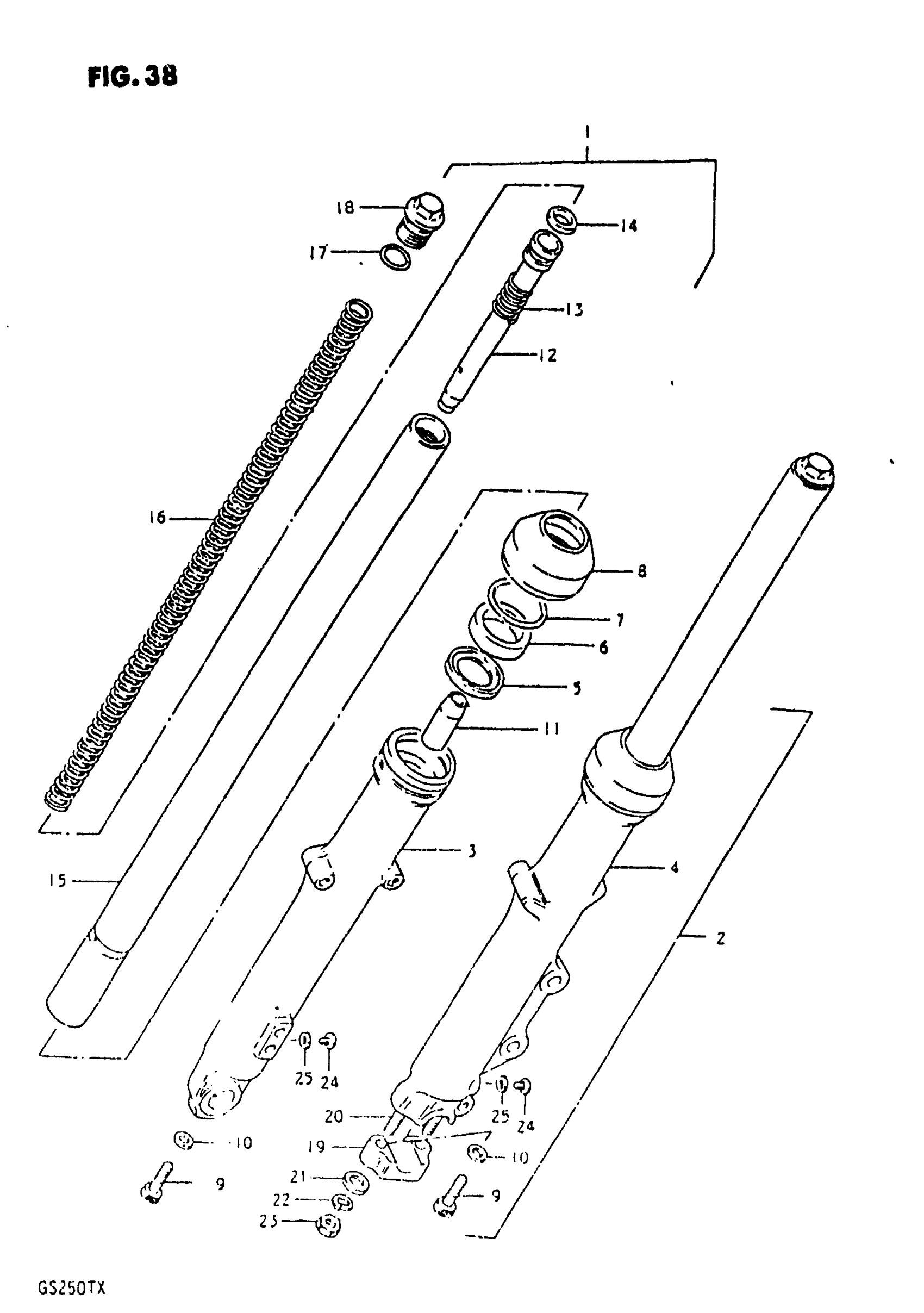

1981 Suzuki GS250T Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH

51103-11400

1
Out of stock

2

DAMPER ASSY, LH | Includes Item(s) 3 - 25

51104-11400

1
Out of stock

3

OUTER TUBE, RH

51130-44033

1
Out of stock

4

OUTER TUBE, LH

51140-44031

1
Out of stock

5

SPACER

51168-44030

2
Out of stock

6

OIL SEAL This part replaces 51153-44031.

51153-02B00

2
Out of stock

7

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

2
Out of stock

8

DUST SEAL This part replaces 51571-33131.

51571-37310

2
Out of stock

9

BOLT

51147-48130

2
Out of stock

10

O RING This part replaces 51148-31030.

51148-36011

2
Out of stock

11

.PIECE, OIL LOCK

51195-48000

2
Out of stock

12

CYLINDER

51146-11400

2
Out of stock

13

SPRING

51177-36030

2
Out of stock

14

RING, PISTON

51196-33130

2
Out of stock

15

INNER TUBE

51110-44030

2
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 51171-44110.

51171-11500

2
Out of stock

17

O RING

51181-31030

2
Out of stock

18

BOLT

51351-33130

2
Out of stock

19

HOLDER, AXLE

51132-31030

2
Out of stock

20

BOLT,STUD This part replaces 01421-08258.

01421-0825A

2
Out of stock

21

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

22

2

$2.28

In stock

23

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

2
Out of stock

24

2

$1.67

In stock

25

GASKET

51183-33030

2
Out of stock
