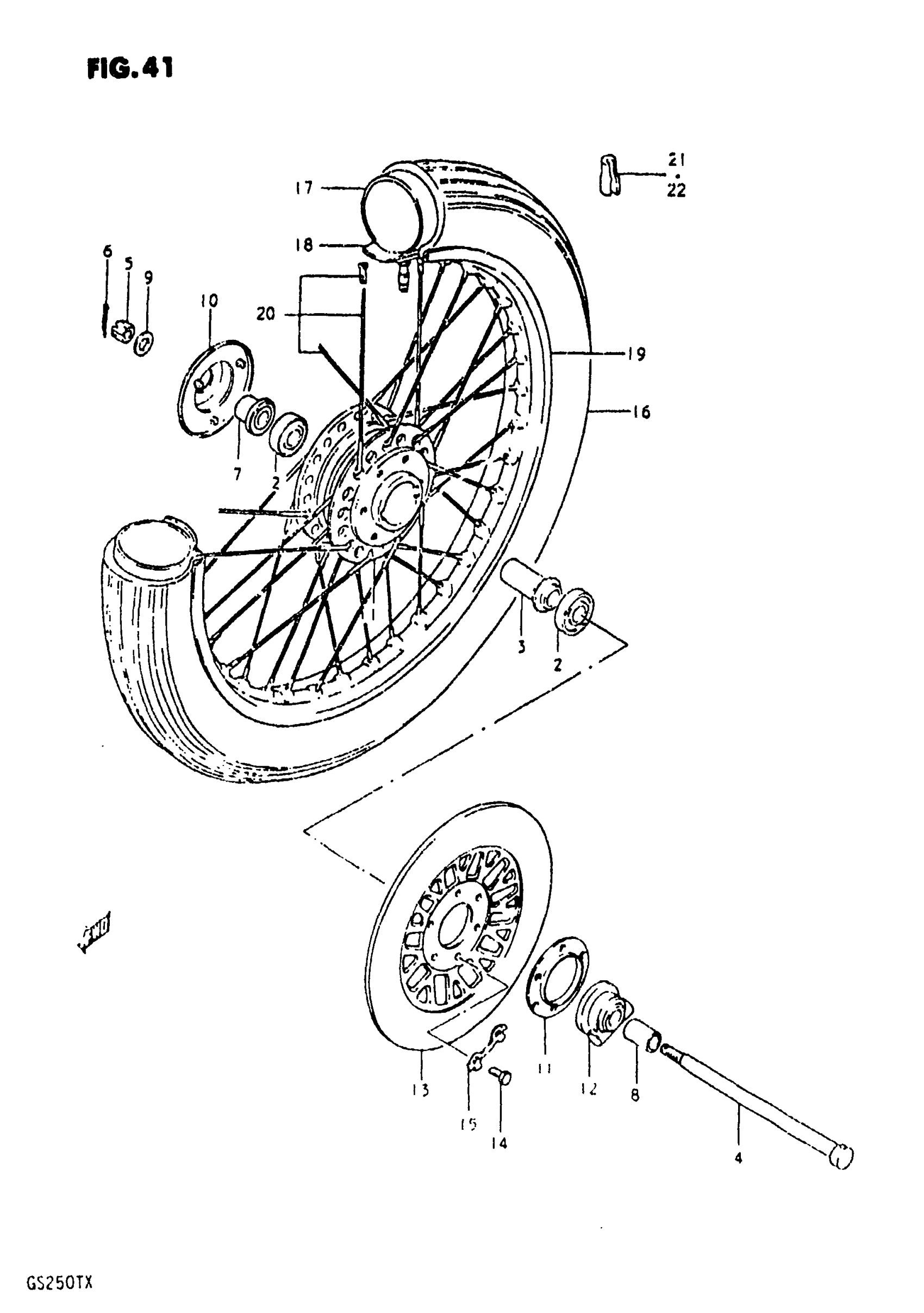

Suzuki GS250T (1981) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54111-47001.

54111-47002

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

3

SPACER

54730-18400

$23.08

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.42

6

PIN This part replaces 04111-30308.

04111-3030A

$1.37

7

SPACER, BEARING (OD:22)

54740-18410

$23.08

8

SPACER, AXLE (15X22X30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.86

10

COVER, RH

54871-45000

$10.15

11

COVER, LH

54871-45010

Unavailable

12

BOX ASSY,SPEEDO This part replaces 54600-18402.

54600-18403

Unavailable

13

DISK, FRONT BRAKE

59211-45200

Unavailable

14

BOLT

09100-08140

$2.08

15

WASHER

09169-08016

$2.38

16

NO DESCRIPTION AVAILABLE This part replaces 55100-11415.

55100-44041

Unavailable

17

TUBE ASSY,WHEEL This part replaces 55200-11601.

55200-26F01

$35.28

18

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.12

19

RIM (160-18).

55311-18420

Unavailable

20

SPOKE ASSY, FRONT | MODEL T This part replaces 55300-18819.

55320-18420

$83.02

20

SPOKE SET | MODEL X

55320-18420

$83.02

21

BALANCER WHEEL (15G) | (0~2) This part replaces 55411-11000.

55411-26G00

$8.73

22

BALANCER WHEEL (30G) | (0~2) This part replaces 55412-11000.

55413-41F00

$9.95
