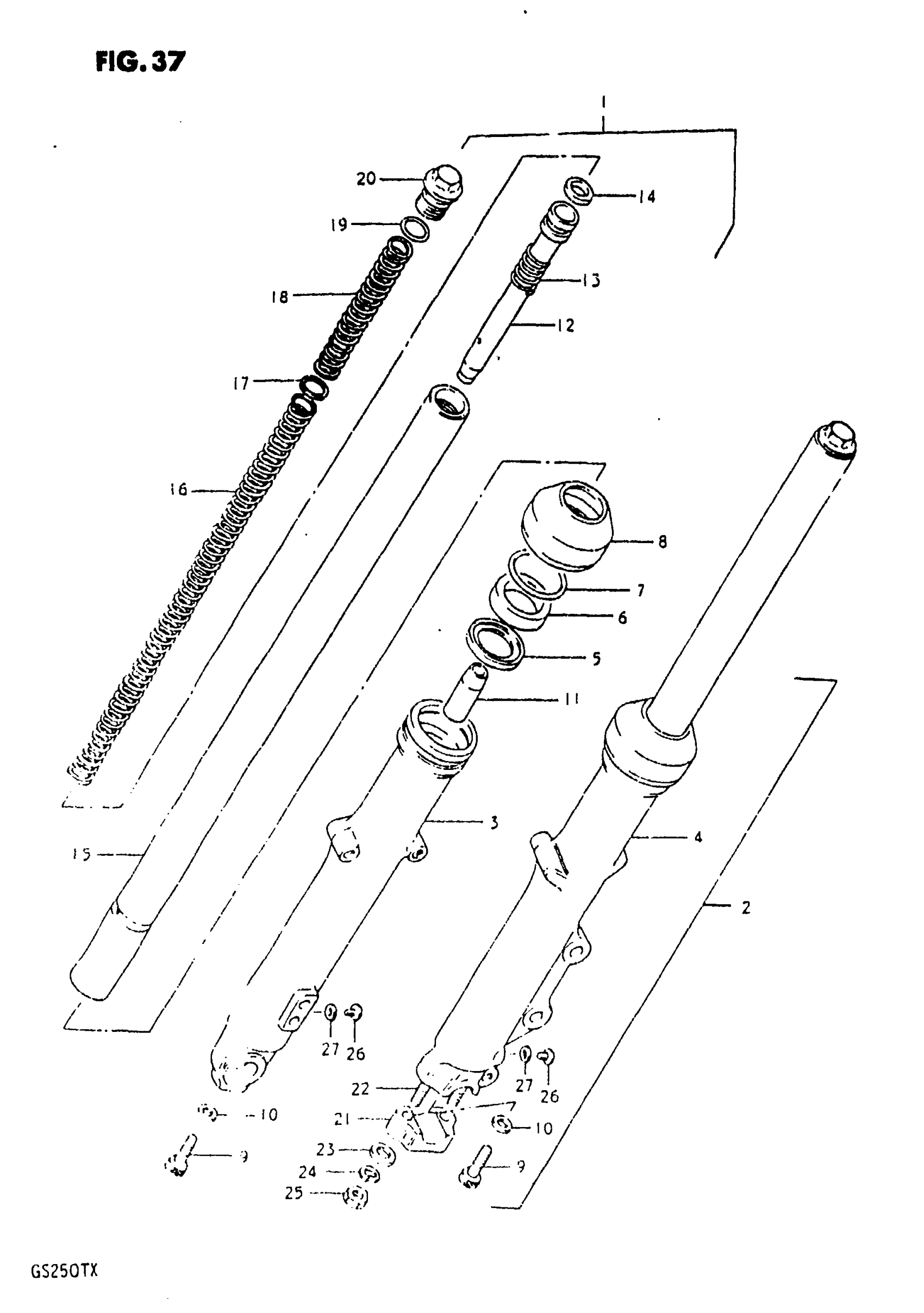

Suzuki GS250T (1981) FRONT FORK (GS250TT) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-11410

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 27

51104-11410

Unavailable

3

OUTER TUBE, RH

51130-44033

Unavailable

4

OUTER TUBE, LH

51140-44031

Unavailable

5

SPACER

51168-44030

$5.22

6

OIL SEAL This part replaces 51153-44031.

51153-02B00

$20.06

7

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

8

DUST SEAL This part replaces 51571-33131.

51571-37310

$20.15

9

BOLT

51147-48130

$4.34

10

O RING This part replaces 51148-31030.

51148-36011

$3.56

11

.PIECE, OIL LOCK

51195-48000

Unavailable

12

CYLINDER

51146-11400

Unavailable

13

SPRING

51177-36030

Unavailable

14

RING, PISTON

51196-33130

$8.12

15

INNER TUBE

51110-44030

Unavailable

16

SPRING A

51171-44140

Unavailable

17

SEAT, SPRING

51172-36331

Unavailable

18

SPRING B

51184-44140

Unavailable

19

O RING

51181-31030

$4.37

20

BOLT

51351-33130

Unavailable

21

HOLDER, AXLE

51132-31030

Unavailable

22

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

23

WASHER This part replaces 08322-21088.

08322-01087

$2.13

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

26

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

27

GASKET

51183-33030

Unavailable
