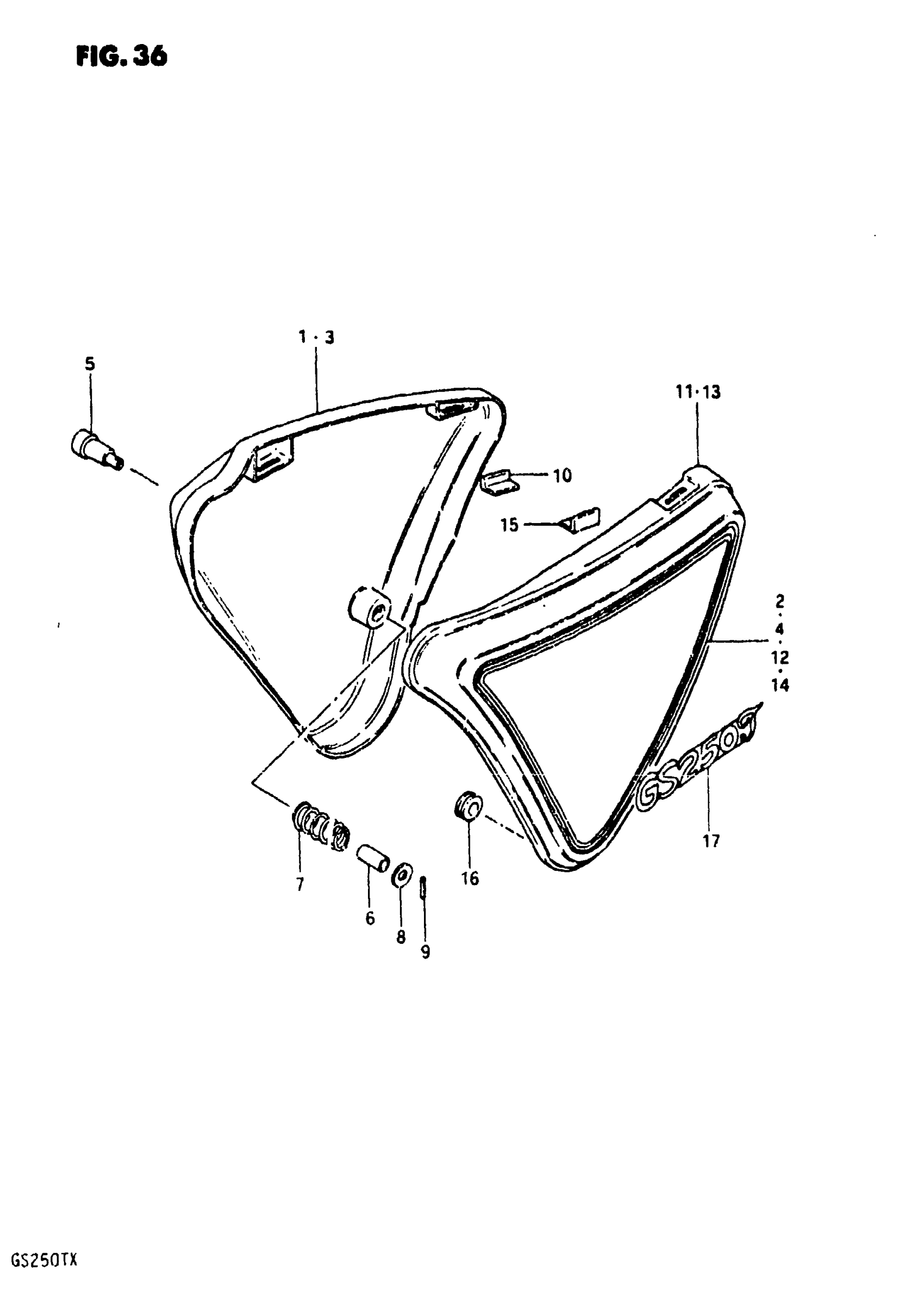

Suzuki GS250T (1981) FRAME COVER (GS250TX) Diagram

#

Description
Price

1

COVER,FRAME, RH This part replaces 47111-11400-03F.

47111-11400

Unavailable

2

TAPE SET, RH

68130-44210-75P

Unavailable

3

COVER,FRAME, RH This part replaces 47111-11400-10S.

47111-11400

Unavailable

4

TAPE SET, RH

68130-44210-73S

Unavailable

5

KNOB, FRAME COVER RH This part replaces 47131-11400.

47130-44200

Unavailable

6

SPACER (14.9x17.3x13.5)

09180-14009

Unavailable

7

SPRING This part replaces 09440-20009.

09440-20009-XC0

Unavailable

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

9

PIN

09205-02011

$1.58

10

CUSHION, UPPER

47117-45000

$2.14

11

COVER,FRAME LH This part replaces 47211-11400-03F.

47211-11400

$100.18

12

TAPE SET, LH

68140-44210-75P

Unavailable

13

COVER,FRAME LH This part replaces 47211-11400-10S.

47211-11400

$100.18

14

TAPE SET, LH

68140-44210-73S

Unavailable

15

CUSHION, LOWER LH

47117-45000

$2.14

16

CUSHION, LOWER LH

09320-08018

$3.04

17

EMBLEM

68131-11420

Unavailable
