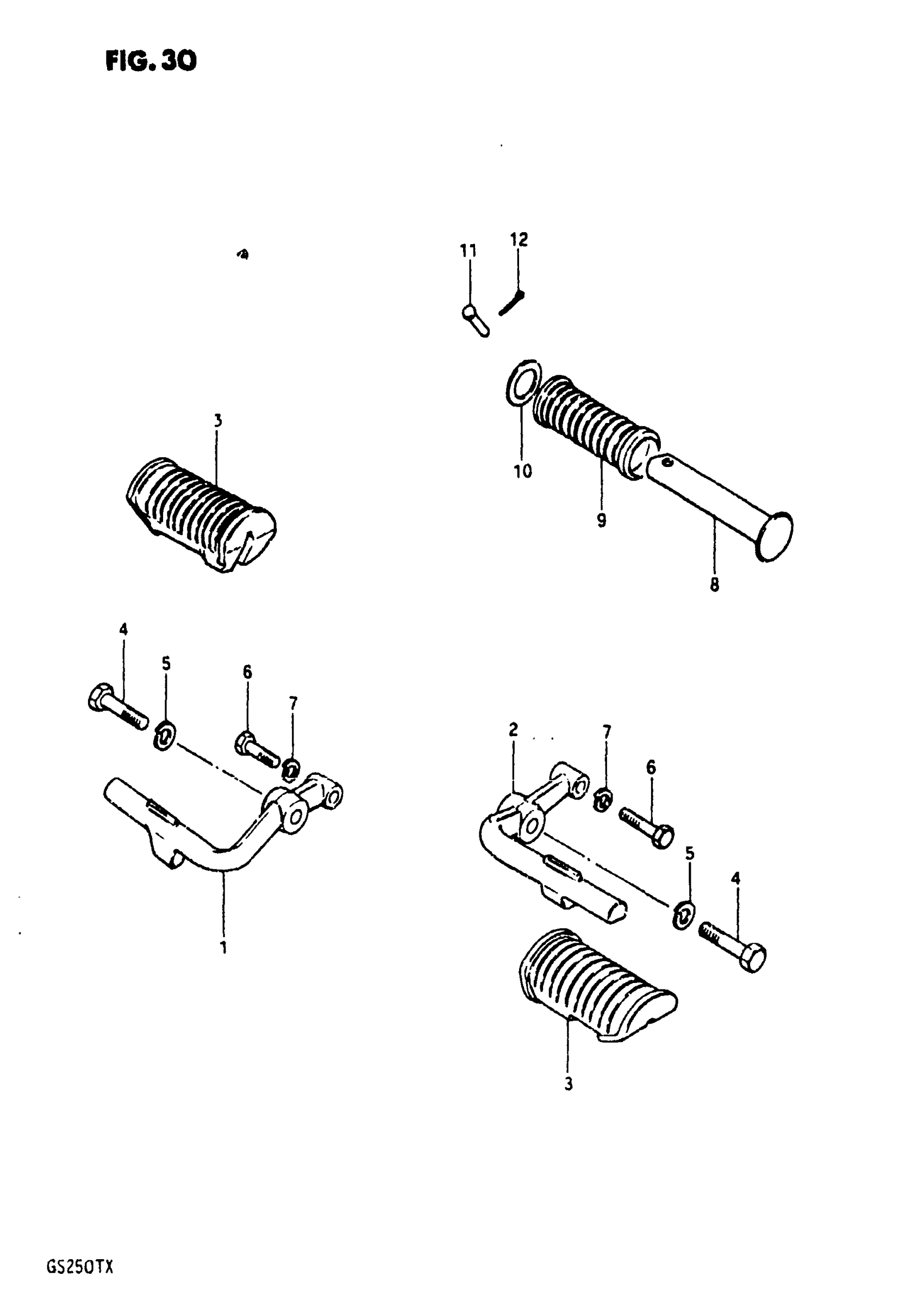

Suzuki GS250T (1981) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH (BLACK)

43511-11400-019

Unavailable

2

BAR, FOOTREST LH (BLACK)

43521-44000-019

Unavailable

3

RUBBER

43551-39100

Unavailable

4

BOLT 10X 40 This part replaces 09100-10117.

09100-10184

$3.16

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

BAR, PILLION FOOTREST

43610-44000

Unavailable

9

RUBBER

43612-03001

$5.15

10

WASHER This part replaces 09160-19006.

09160-19024

$2.65

11

PIN

09200-06010

$1.72

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
