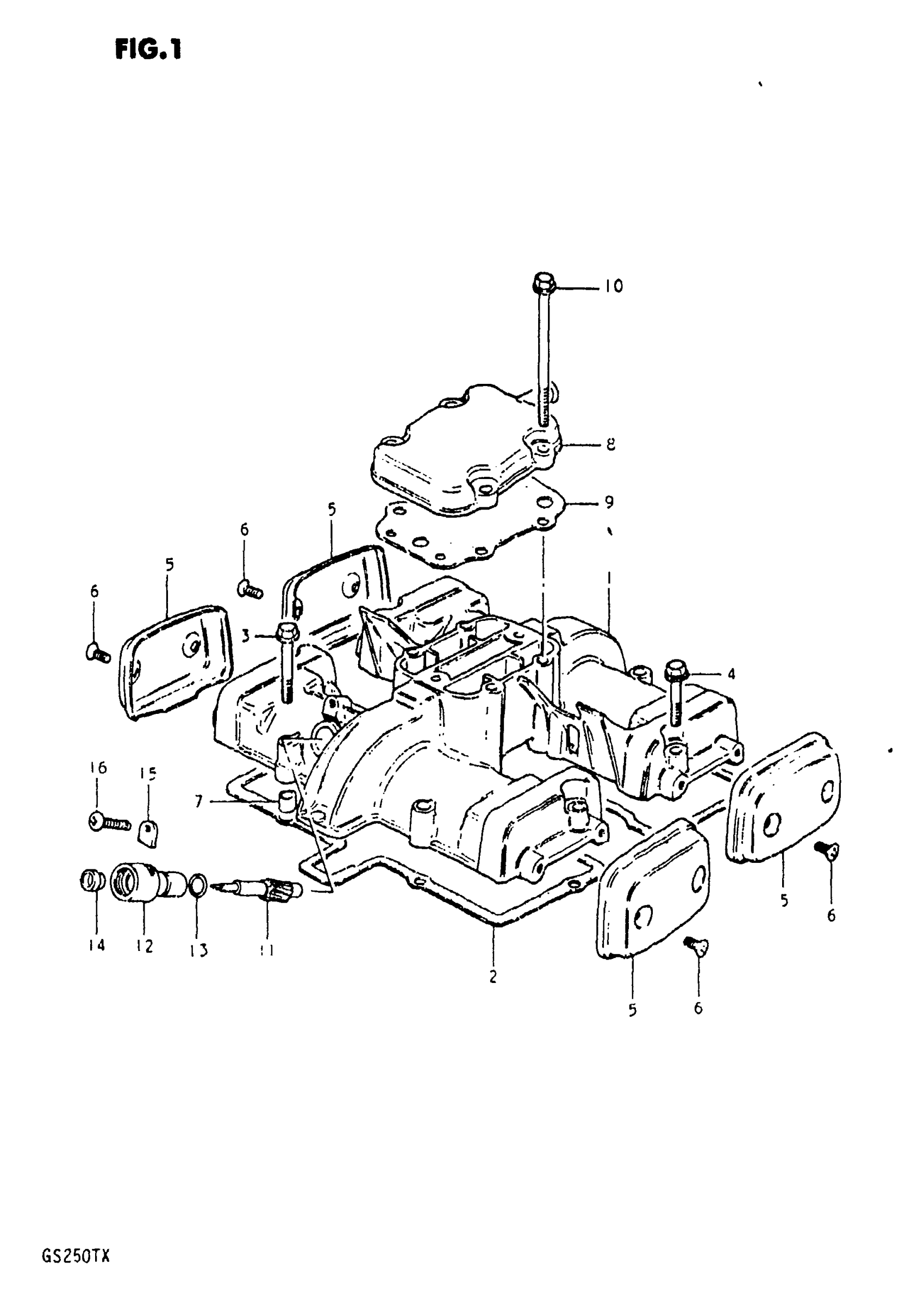

Suzuki GS250T (1981) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-11400

Unavailable

2

GASKET,CYL HD C This part replaces 11173-11400.

11173-11402-H17

Unavailable

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT This part replaces 01517-06358.

01550-06357

$2.77

5

CAP, COVER This part replaces 11190-11401.

11174-49210

$20.97

5

CAP, SIDE (LIGHT ALLOY)

11174-49210

$20.97

6

SCREW This part replaces 02132-05127.

02122-05127

$1.93

7

PIN

09206-08001

$1.78

8

COVER, BREATHER This part replaces 11176-11400.

11176-11401

Unavailable

9

GASKET,BREATHER This part replaces 11177-11400.

11177-114V0

Unavailable

10

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

11

GEAR TACHO DRVN This part replaces 26431-47002.

26431-47003

Unavailable

12

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

13

SEAL BAND

26451-45000

$5.05

14

OIL SEAL

09289-05002

$8.43

15

PLATE, GEAR SLEEVE

26449-33000

$4.35

16

SCREW

09128-05101

$1.49
