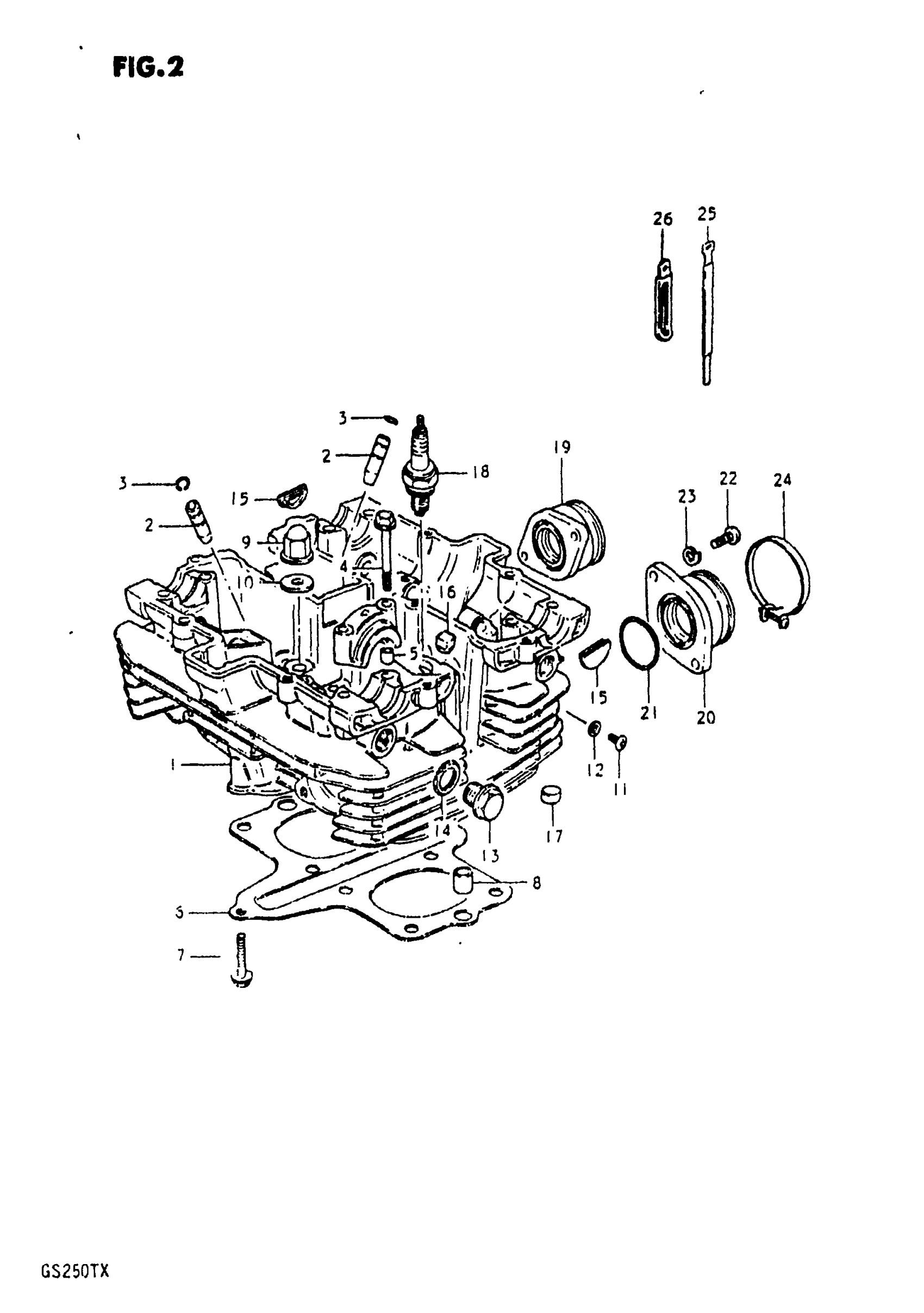

Suzuki GS250T (1981) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-11400.

11100-11850

Unavailable

2

GUIDE, VALVE

11115-11470

Unavailable

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (6X39)

09103-06026

$1.98

5

PIN

09206-08001

$1.78

6

GASKET This part replaces 11141-11400.

11141-11900

Unavailable

7

BOLT This part replaces 01517-06308.

01550-06307

$2.69

8

PIN

04211-11189

$1.78

9

NUT

09159-08029

$5.81

10

GASKET This part replaces 09168-08009.

09168-08013

$2.92

11

SCREW This part replaces 02112-05088.

02112-05087

$1.49

12

GASKET

09168-05010

$1.71

13

PLUG This part replaces 09247-14012.

09247-14026

$3.76

14

GASKET

09168-14004

$1.83

15

PLUG, CYLINDER HEAD SIDE

09241-23002

$6.17

16

PAD, RUBBER

11151-45000

$3.84

17

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

$3.37

18

SPARK PLUG (NGK,DR9EA) This part replaces 09482-00184.

09482-00400

$5.24

18

SPARK PLUG (ND,X27ES-U)

09482-00185

Unavailable

19

PIPE, INTAKE RH

13110-11400

Unavailable

20

PIPE, INTAKE LH

13120-11400

Unavailable

21

O RING This part replaces 09280-30004.

09280-30008

$8.82

22

SCREW This part replaces 02112-06208.

02112-06207

$1.78

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

CLAMP This part replaces 09402-48306.

09402-48208

$4.64

25

CLAMP | MODEL T This part replaces 09407-18301.

09407-18302

$2.28

26

CLAMP | MODEL X This part replaces 09404-06412.

09404-06039

$1.74
