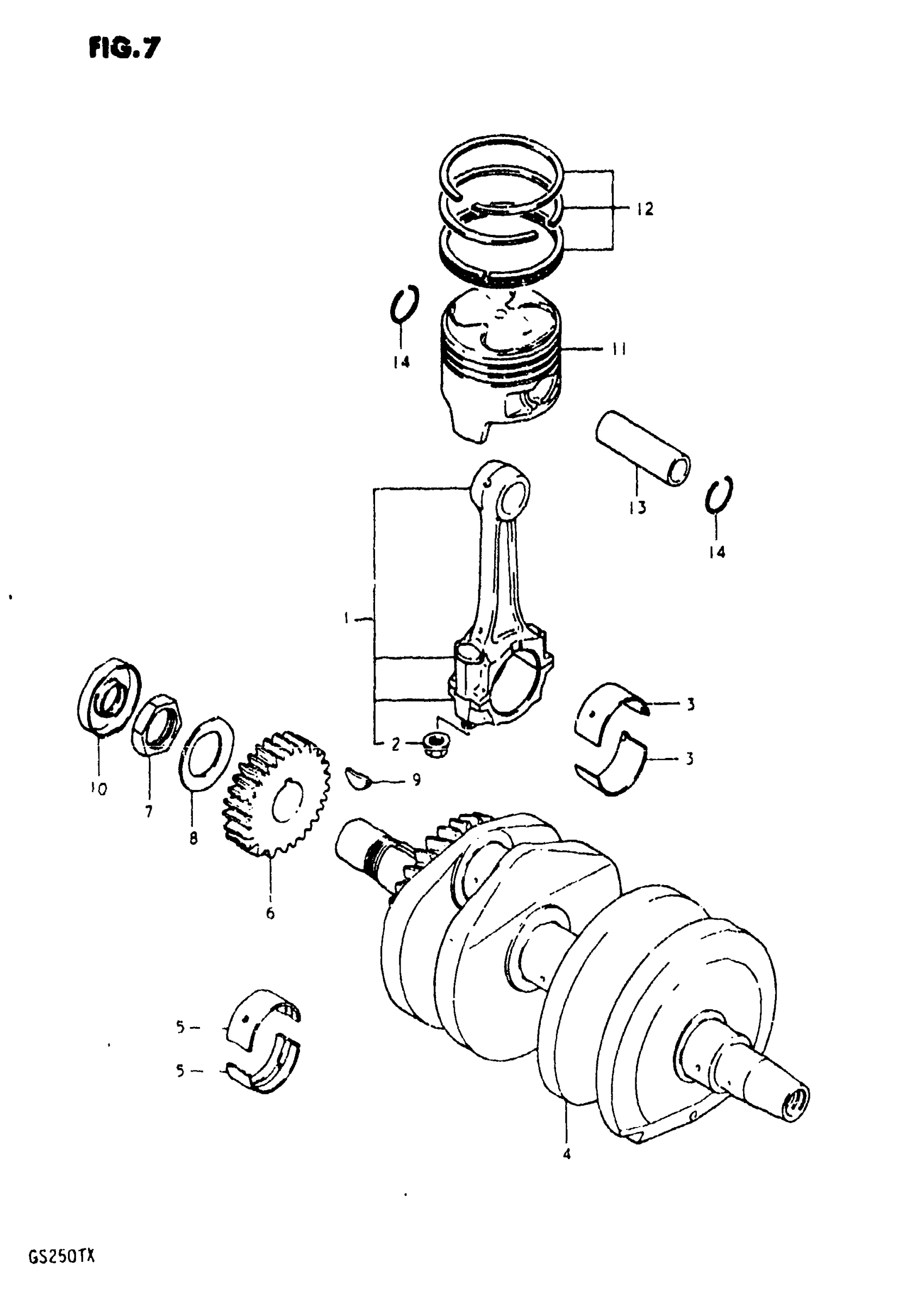

Suzuki GS250T (1981) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-11400

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-11400-010.

12164-33300-0A0

Unavailable

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-11400-020.

12164-33300-0B0

Unavailable

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-11400-030.

12164-33300-0C0

Unavailable

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-11400-040.

12164-33300-0D0

Unavailable

3

BEARING, CRANK PIN (US:0.25) | US:0.25 This part replaces 12164-11400-025.

12164-33210-025

Unavailable

3

BEARING, CRANK PIN (US:0.50) | US:0.50 This part replaces 12164-11400-050.

12164-33210-050

Unavailable

4

CRANKSHAFT

12220-11401

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 12229-11400-010.

12229-43400-0A0

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 12229-11400-020.

12229-43400-0B0

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 12229-11400-030.

12229-43400-0C0

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 12229-11400-040.

12229-43400-0D0

Unavailable

5

BEARING, CRANKSHAFT | US:0.25

12229-11400-025

Unavailable

5

BEARING, CRANKSHAFT | US:0.50

12229-11400-050

Unavailable

6

GEAR, PRIMARY DRIVE (NT:24)

21111-11400

Unavailable

7

NUT

09140-24007

$3.89

8

WASHER

09164-25001

Unavailable

9

KEY

08341-31059

$2.48

10

OIL SEAL, RH (22X40X8) This part replaces 09283-22013.

09283-22015

$9.72

11

NO DESCRIPTION AVAILABLE This part replaces 12111-11401.

12111-11404

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 12111-11401-050.

12103-11820-050

Unavailable

11

PISTON SET, OS. This part replaces 12111-11401-100.

12103-11820-100

Unavailable

12

RING SET PISTON This part replaces 12140-11420.

12140-11421

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 12140-11420-050.

12140-11421-050

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 12140-11420-100.

12140-11421-100

Unavailable

13

PIN, PISTON This part replaces 12151-18001.

12151-60D00

$17.37

14

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67
