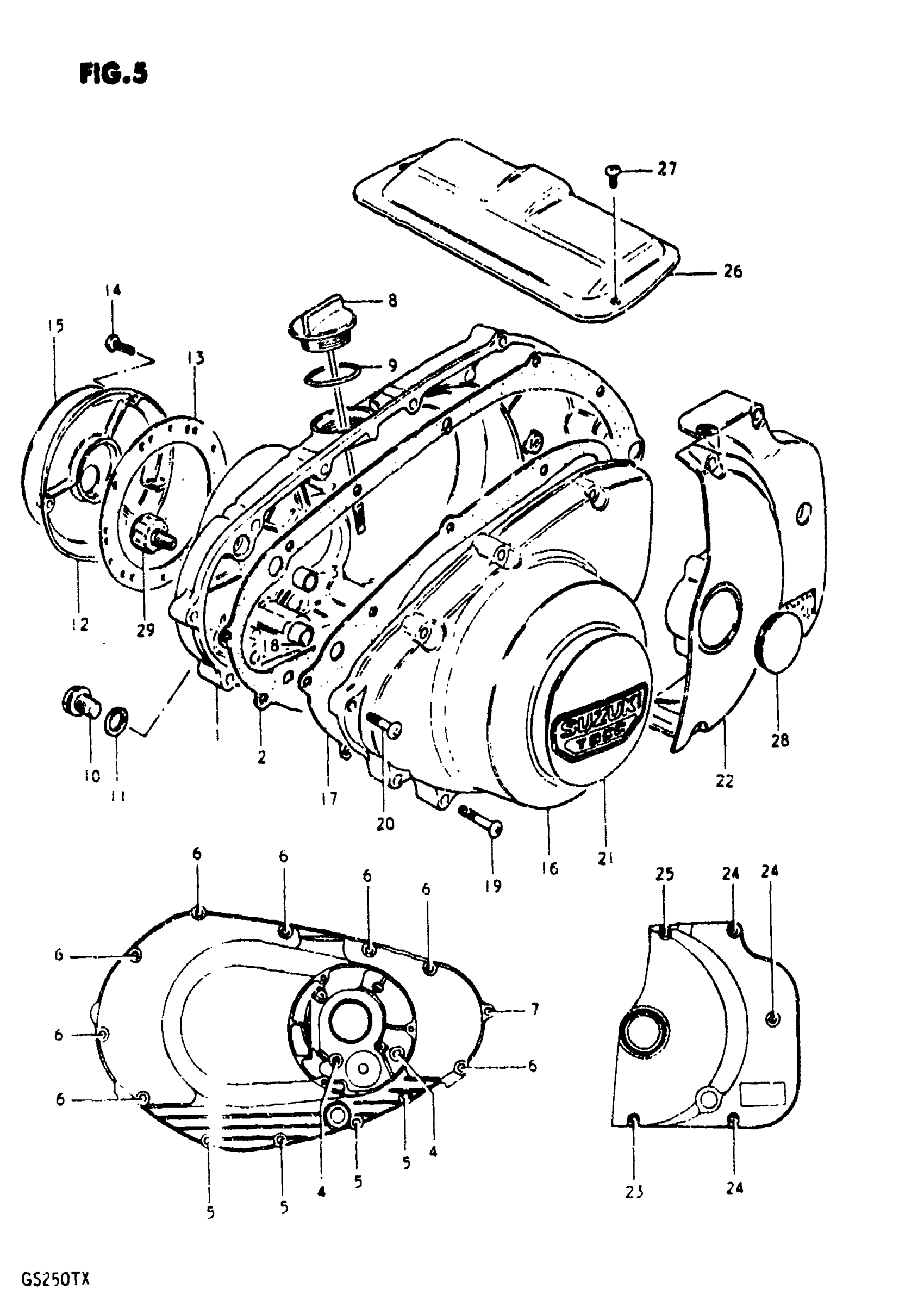

Suzuki GS250T (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11341-11400.

11341-11401

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-11400.

11482-11400-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

GAUGE, OIL LEVEL

11970-11400

Unavailable

9

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

10

PLUG This part replaces 09247-14012.

09247-14026

$3.76

11

GASKET

09168-14004

$1.83

12

COVER, CONTACT BREAKER This part replaces 11381-44002.

11381-44003

Unavailable

13

GASKET

11491-44001

Unavailable

14

SCREW This part replaces 02112-05208.

02112-05207

$1.97

15

EMBLEM

68235-49200

$18.50

16

COVER, GENERATOR This part replaces 11351-11400.

11351-11402

Unavailable

17

GASKET,MAG COVE This part replaces 11483-11400.

11483-11400-H17

Unavailable

18

PIN This part replaces 09206-13001.

04211-13189

$2.19

19

SCREW This part replaces 02112-06308.

02112-06307

$1.97

20

SCREW This part replaces 02112-06258.

02112-06257

$1.78

21

EMBLEM

68235-49200

$18.50

22

COVER, ENGINE SPROCKET This part replaces 11361-11400.

11361-11402

Unavailable

23

SCREW This part replaces 02112-06608.

02112-06607

$2.57

24

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

25

SCREW This part replaces 02112-06308.

02112-06307

$1.97

26

COVER, STARTER MOTOR

11382-11400

Unavailable

27

SCREW This part replaces 02112-05088.

02112-05087

$1.49

28

CAP, CLUTCH RELEASE

09250-30003

$3.89

29

SWITCH ASSY,OIL PRESSURE This part replaces 37820-44100.

37820-33D11

$25.13
