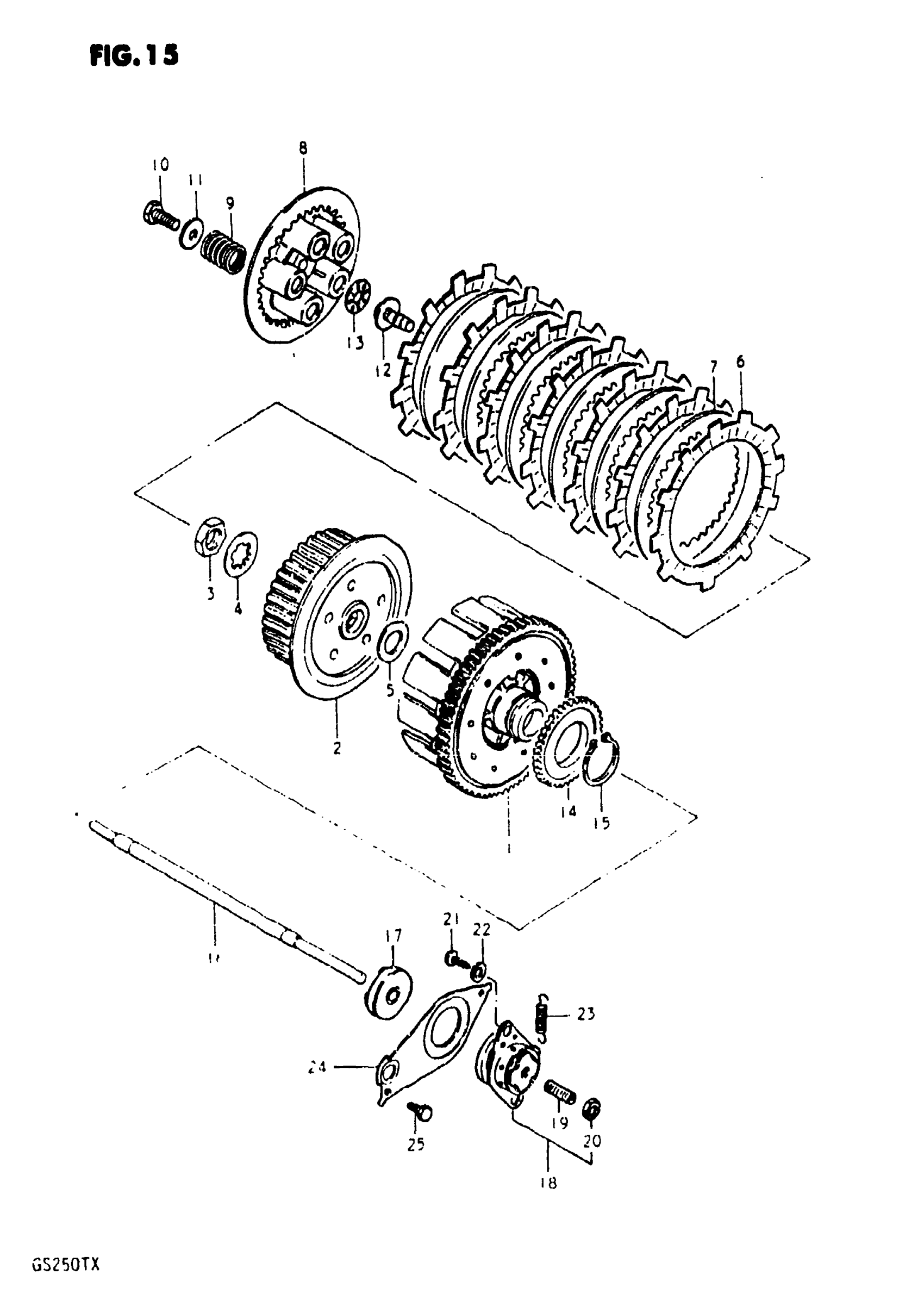

Suzuki GS250T (1981) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:75) This part replaces 21200-11400.

21200-11502

Unavailable

2

HUB, SLEEVE

21411-11400

Unavailable

3

NUT This part replaces 09140-16001.

09140-16005

$3.75

4

WASHER

09169-16003

$2.45

5

WASHER

08211-20352

Unavailable

6

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

7

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

8

DISC, PRESSURE This part replaces 21462-46900.

21462-02B41

$28.95

9

SPRING

09440-15013

$3.85

10

BOLT

09100-05002

$1.49

11

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

12

PIECE, CLUTCH PUSH This part replaces 23121-11400.

23121-39101

Unavailable

13

BEARING

09263-10002

$10.19

14

GEAR, OIL PUMP DRIVE (NT:41)

16321-11400

Unavailable

15

CLIP This part replaces 08331-31389.

08331-31383

$3.42

16

ROD, PUSH

23100-44101

Unavailable

17

OIL SEAL

09285-06012

Unavailable

18

SCREW ASSY, RELEASE | Includes Item(s) 19 - 20 This part replaces 23200-44100.

23200-44101

Unavailable

19

SCREW This part replaces 09134-06001.

09134-06010

$3.12

20

.NUT This part replaces 08310-22068.

08310-00067

$2.13

21

SCREW This part replaces 03111-06168.

03111-0616B

$1.93

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13

23

SPRING

09443-08001

$2.92

24

HOLDER, OIL SEAL

23117-11401

Unavailable

25

BOLT This part replaces 01107-06128.

01500-06127

$1.97
