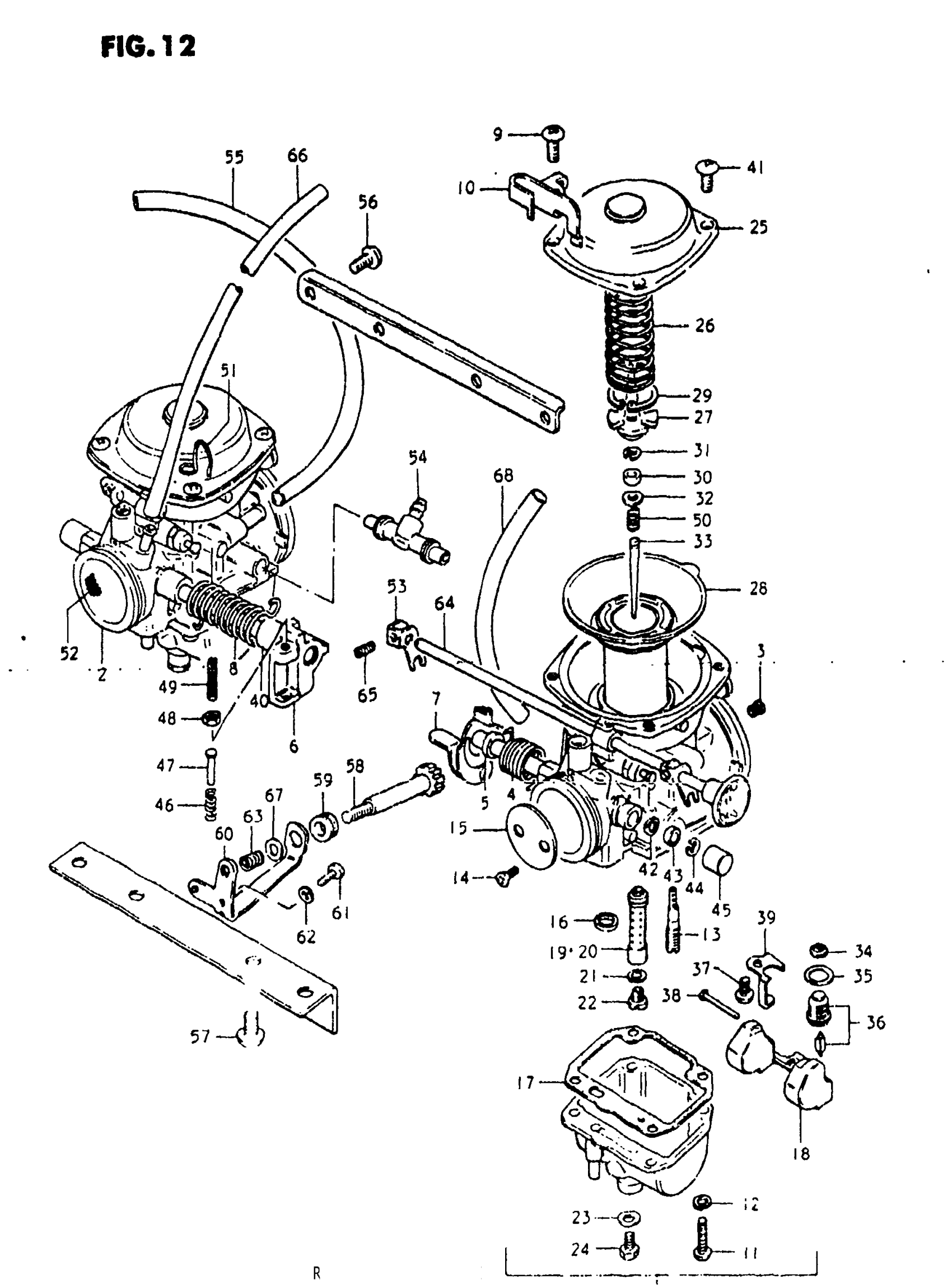

Suzuki GS250T (1981) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 52

13200-11420

Unavailable

1

CARBURETOR, LH

13201-11420

Unavailable

2

CARBURETOR, RH

13202-11420

Unavailable

3

JET, PILOT AIR (135)

09491-27008

Unavailable

4

SPRING

13573-11400

Unavailable

5

RING

13574-45110

Unavailable

6

SHAFT

13550-11420

Unavailable

7

SHAFT

13550-11430

Unavailable

8

SPRING

13573-11410

Unavailable

9

SCREW This part replaces 02112-05128.

02112-05127

$1.97

10

BRACKET

13627-11400

Unavailable

11

SCREW This part replaces 02111-04188.

02112-0420A

$1.49

12

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

13

JET, PILOT (17.5)

09492-17009

Unavailable

14

SCREW

13604-44080

$2.92

15

VALVE, THROTTLE (80)

13551-11420

Unavailable

16

GASKET

13258-44080

Unavailable

17

GASKET,FLOAT CH This part replaces 13251-11400.

13251-11401

$12.47

18

FLOAT

13250-44080

$28.49

19

JET, NEEDLE (0-7)

09494-00300

Unavailable

20

JET, NEEDLE (0-8)

09494-00301

Unavailable

21

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

22

JET, MAIN (115)

09491-23011

$9.63

23

GASKET

13246-44080

$2.80

24

SCREW, GUIDE

13247-44080

$7.97

25

COVER

13502-11400

Unavailable

26

SPRING

13503-44080

Unavailable

27

HOLDER, GUIDE

13389-44030

Unavailable

28

DIAPHRAGM This part replaces 13500-11400.

13500-11410

Unavailable

29

CLIP

13581-44030

$6.78

30

RING

13387-44030

$5.83

31

E RING

13394-31210

$4.64

32

WASHER

13382-44030

$3.71

33

NEEDLE, JET (5CHT40A)

13383-11420

Unavailable

34

FILTER This part replaces 13376-44080.

13376-19F00

$10.28

35

O RING This part replaces 66263-99050.

13374-35C00

$5.99

36

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$50.98

37

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

38

PIN

13254-92311

$2.07

39

PLATE

13373-11400

$7.05

40

RING

13574-11400

Unavailable

41

SCREW This part replaces 02112-05088.

02112-05087

$1.49

42

SEAL This part replaces 13651-51010.

13651-51011

$2.20

43

GASKET

13557-47070

$3.59

44

E RING

13617-44080

$2.90

45

CAP

13578-47070

$4.52

46

SPRING

13268-44010

Unavailable

47

PIN

13575-47070

Unavailable

48

NUT

13607-47070

$3.13

49

SCREW

13605-47080

$7.77

50

SPRING

13388-44030

$8.12

51

CLIP, HOSE

13692-11400

Unavailable

52

NET

13281-11400

Unavailable

53

LEVER | Includes Item(s) 54 - 68

13422-11400

Unavailable

54

NIPPLE

13685-11400

Unavailable

55

HOSE,5X10X600 This part replaces 13683-11400.

44421-13ER0

$10.06

56

SCREW This part replaces 02112-05128.

02112-05127

$1.97

57

SCREW This part replaces 02112-06168.

02112-06167

$1.49

58

ADJUSTER

13267-11400

Unavailable

59

BUSH

13681-44110

Unavailable

60

BRACKET

13627-44110

Unavailable

61

SCREW This part replaces 02112-05088.

02112-05087

$1.49

62

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

63

SPRING

13271-93011

$5.32

64

SHAFT

13410-11400

Unavailable

65

SCREW

13605-47070

Unavailable

66

HOSE(4.5X8.5X60 This part replaces 13683-11410.

09355-45001-600

$9.48

67

WASHER

13432-47090

$2.28

68

HOSE,5X10X600 This part replaces 13683-11420.

44421-13ER0

$10.06
